Installation [03/2017 - 06/2017]: Procedure

  1. INSTALL COMBINATION METER ASSEMBLY
    1. Connect each connector.
    2. Engage the clamp.

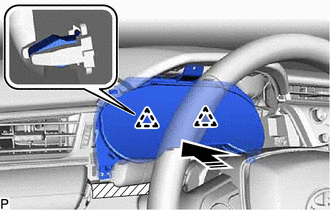

    3. Engage the 2 clips as shown in the illustration.
      GTY748575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Install the combination meter assembly with the 3 screws.
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
    1. Connect the connector.

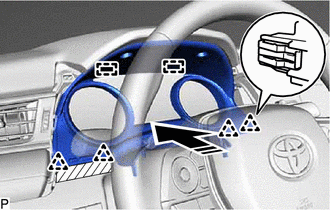

    2. Engage the 2 guides and 4 clips as shown in the illustration.
      GTY742445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Install the 2 clips.

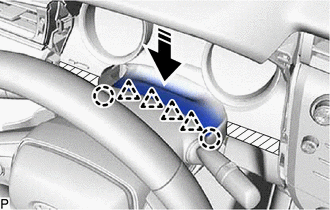

    4. Engage the 4 clips and 2 claws to install the instrument cluster finish panel assembly.
      GTY757163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. INSTALL NO. 2 METER HOOD CLUSTER

    Refer to PROCEDURE - Step 27

  4. INSTALL NO. 1 METER HOOD CLUSTER

    Refer to PROCEDURE - Step 13

  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2
