Installation [03/2017 - 06/2017]: Procedure

  1. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
    1. Check that the ignition switch is off.
    2. Check that the cable is disconnected from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

      GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the airbag connector to the lower No. 1 instrument panel airbag assembly.

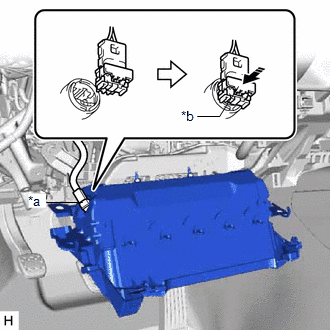

      GTY772025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Airbag Connector
      *b Airbag Connector Locking Button
      Push in this Direction
      NOTE:

      When connecting any airbag connector, take care not to damage the airbag wire harness.

    4. Push in the airbag connector locking button to install the airbag connector.
    5. Engage the 2 hooks to temporarily install the lower No. 1 instrument panel airbag assembly.

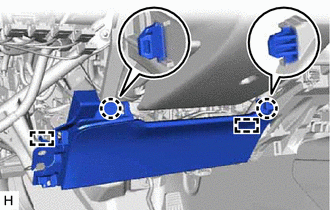

      GTY748191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Engage the 2 claws.
    7. Install the lower No. 1 instrument panel airbag assembly with the 4 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:

      Confirm that the lower No. 1 instrument panel airbag assembly is installed securely without any excessive gaps and is not protruding outward.

  2. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 10

  3. INSTALL NO. 1 METER HOOD CLUSTER

    Refer to PROCEDURE - Step 13

  4. INSTALL NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  5. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 26

  6. INSTALL NO. 2 METER HOOD CLUSTER

    Refer to PROCEDURE - Step 27

  7. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 28

  8. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 29

  9. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  10. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 29

  11. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 30

  12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [03/2017 - 06/2017]

  13. PERFORM DIAGNOSTIC SYSTEM CHECK

    Refer to DTC CHECK / CLEAR [03/2017 - ]

  14. INSPECT SRS WARNING LIGHT

    Refer to OPERATION CHECK [03/2017 - 06/2017]
