Installation [03/2017 - 06/2017]: Procedure

  1. PRECAUTION
    NOTE:
    • When replacing the radio and display receiver assembly, always replace it with a new one. If a radio and display receiver assembly which was installed to another vehicle is used, the following may occurs:
      • A communication malfunction DTC may be stored.
      • The radio and display receiver assembly may not operate normally.
  2. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY
  3. INSTALL NO. 2 RADIO RECEIVER BRACKET
    1. Install the No. 2 radio receiver bracket with the 3 screws.
  4. INSTALL NO. 1 RADIO RECEIVER BRACKET
    1. Install the No. 1 radio receiver bracket with the 3 screws.
  5. INSTALL TELLTALE LIGHT ASSEMBLY (for 7 Inch Display)

    Refer to PROCEDURE - Step 1

  6. INSTALL MULTI-MEDIA MODULE WIRE (for 8 Inch Display)
    1. Engage the claw.
    2. Connect the connector to install the multi-media module wire.
  7. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 7 Inch Display)
    1. Connect each connector.
    2. Engage the 2 guides to temporarily install the radio and display receiver assembly with bracket as shown in the illustration.

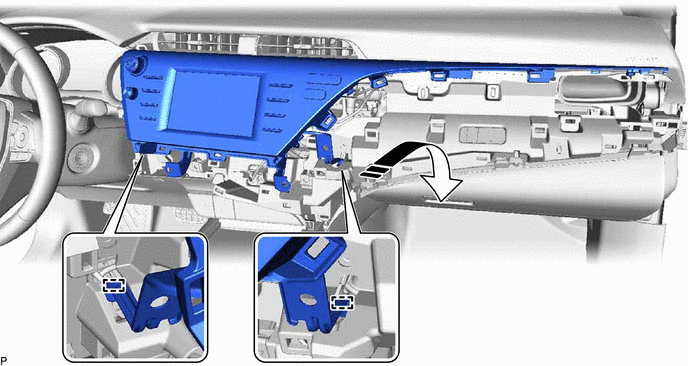

      GTY740930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
    3. Engage the 5 clips as shown in the illustration.
      GTY746770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
    4. Engage the 4 clips in the order shown in the illustration.

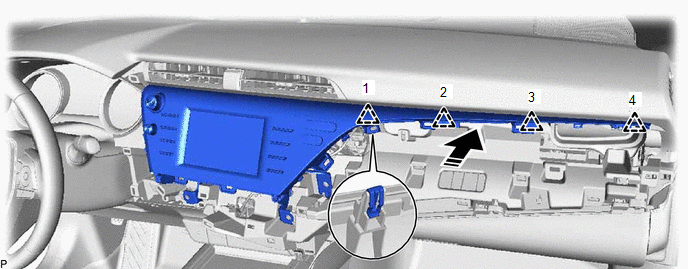

      GTY770977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
    5. Install the radio and display receiver assembly with bracket with the 4 bolts.
  8. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 8 Inch Display)
    1. Connect each connector.
    2. Engage the 2 guides to temporarily install the radio and display receiver assembly with bracket as shown in the illustration.

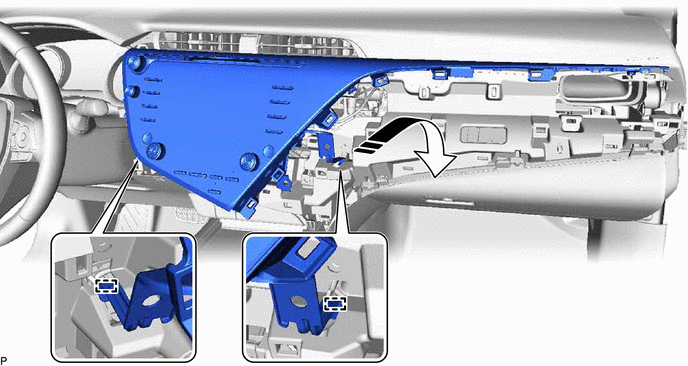

      GTY757833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
    3. Engage the 7 clips as shown in the illustration.
      GTY758511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
    4. Engage the 4 clips in the order shown in the illustration.
      GTY764326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
    5. Install the radio and display receiver assembly with bracket with the 4 bolts.
  9. INSTALL AIR CONDITIONING CONTROL ASSEMBLY (for 7 Inch Display)

    Refer to PROCEDURE - Step 1

  10. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 20

  11. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 21

  12. INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  13. INSTALL NO. 1 METER HOOD CLUSTER

    Refer to PROCEDURE - Step 13
