Removal [12/2015 - ]: Procedure

RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM
See step 1 [12/2015 - 08/2016], or see step 1 [08/2016 - ]
REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 24 [12/2015 - 08/2016] , or refer to PROCEDURE - Step 18 [08/2016 - ]
REMOVE NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 4 [12/2015 - 08/2016] , or refer to PROCEDURE - Step 4 [08/2016 - ]
DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 3 [12/2015 - 08/2016] , or refer to PROCEDURE - Step 2 [08/2016 - ]
REMOVE FAN AND GENERATOR V BELT
(Refer to REMOVAL [12/2015 - 08/2016] , or refer to REMOVAL [08/2016 - ] )
REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)
(Refer to REMOVAL [12/2015 - 11/2017] , or refer to REMOVAL [11/2017 - ] )
REMOVE RADIATOR GRILLE SUB-ASSEMBLY (w/o Dynamic Radar Cruise Control System)
(Refer to REMOVAL [12/2015 - 11/2017] , or refer to REMOVAL [11/2017 - ] )
REMOVE AIR CLEANER INLET COVER ASSEMBLY SEAL
Refer to PROCEDURE - Step 6 [12/2015 - 08/2016] , or refer to PROCEDURE - Step 4 [12/2015 - 08/2016]
DISCONNECT NO. 1 RADIATOR HOSE
Refer to PROCEDURE - Step 5 [12/2015 - 08/2016] , or refer to PROCEDURE - Step 4 [08/2016 - 11/2017] , or refer to PROCEDURE - Step 4 [11/2017 - ]
DISCONNECT NO. 2 RADIATOR HOSE
Refer to PROCEDURE - Step 6 [12/2015 - 08/2016] , or refer to PROCEDURE - Step 5 [08/2016 - 11/2017] , or refer to PROCEDURE - Step 5 [11/2017 - ]
DISCONNECT INLET OIL COOLER HOSE
Refer to PROCEDURE - Step 7 [12/2015 - 08/2016] , or refer to PROCEDURE - Step 6 [08/2016 - 11/2017] , or refer to PROCEDURE - Step 6 [11/2017 - ]
DISCONNECT OUTLET OIL COOLER HOSE
Refer to PROCEDURE - Step 8 [12/2015 - 08/2016] , or refer to PROCEDURE - Step 7 [08/2016 - 11/2017] , or refer to PROCEDURE - Step 7 [11/2017 - ]

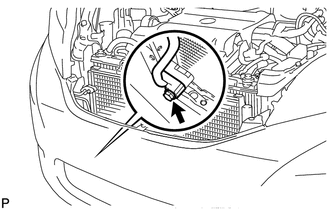

DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the bolt and disconnect the discharge hose from the condenser.
2. Remove the O-ring from the discharge hose.
  NOTE:
  Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

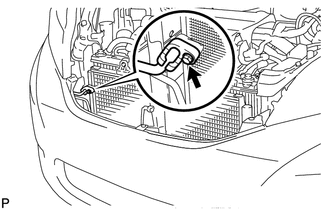

DISCONNECT COOLER REFRIGERANT LIQUID PIPE A

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the bolt and disconnect the cooler refrigerant liquid pipe A from the condenser.
2. Remove the O-ring from the cooler refrigerant liquid pipe A.
  NOTE:
  Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.
REMOVE HOOD LOCK NUT CAP
Refer to PROCEDURE - Step 5 [12/2015 - 11/2017] , or refer to PROCEDURE - Step 4 [11/2017 - ]
REMOVE HOOD LOCK ASSEMBLY
Refer to PROCEDURE - Step 6 [12/2015 - 11/2017] , or refer to PROCEDURE - Step 5 [11/2017 - ]

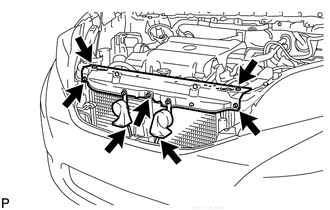

REMOVE RADIATOR SUPPORT SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the 2 connectors.
2. Remove the 5 bolts and separate the radiator support with horn assembly.

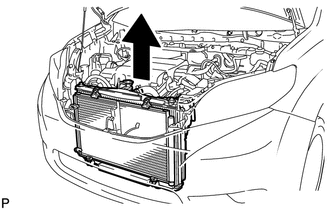

REMOVE RADIATOR AND FAN ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the radiator and fan assembly with condenser from vehicle.
DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the bolt and disconnect the discharge hose from the compressor.
2. Remove the O-ring from the discharge hose.
  NOTE:
  Seal the openings of the disconnected parts using vinyl tape to prevent the entry of moisture and foreign matter.

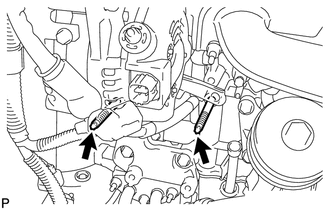

DISCONNECT SUCTION HOSE SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the bolt and disconnect the suction hose from the compressor.
2. Remove the O-ring from the suction hose.
  NOTE:
  Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

REMOVE W/PULLEY COMPRESSOR ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

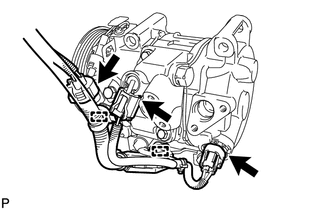

Disengage the 2 clamps.
Disconnect the 3 connectors.

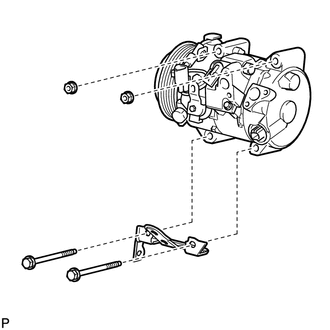

Remove the 2 bolts and 2 nuts.

Remove the bracket and compressor.

Using an E8 "TORX" socket wrench, remove the 2 stud bolts.
