Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE RADIATOR ASSEMBLY

    (Refer to REMOVAL [12/2015 - 08/2016] )

  2. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  3. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

    See step  1

  4. REMOVE NO. 1 ENGINE UNDER COVER

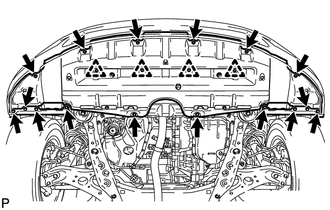

    1. Remove the 8 screws, front wheel opening extension pad RH and front wheel opening extension pad LH.
      GTY298373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts, 6 screws, 4 clips and No. 1 engine under cover.
  5. REMOVE NO. 2 ENGINE UNDER COVER (for AWD)

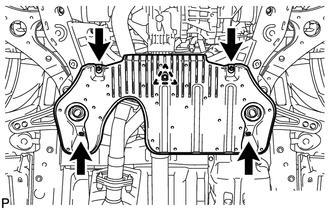

    1. Remove the 2 bolts, 2 screws, clip and No. 2 engine under cover.
      GTY298374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for AWD)

    (Refer to REMOVAL [12/2015 - ] )

  7. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 2WD)

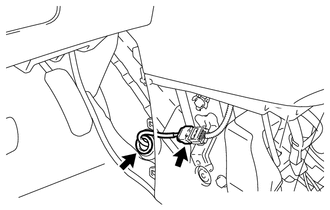

    1. Disconnect the oxygen sensor (for bank 1 sensor 2) connector.
      GTY723375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the oxygen sensor (for bank 1 sensor 2) wire grommet and pass the connector through the hole to the outside of the vehicle.

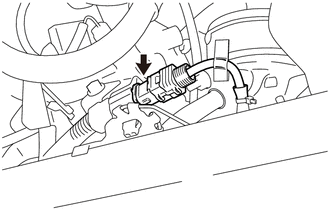

    3. Disconnect the oxygen sensor (for bank 2 sensor 2) connector.
      GTY723401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

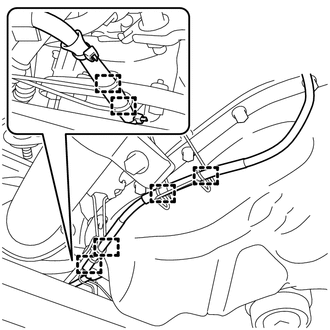

    4. Disengage the 6 clamps to disconnect the oxygen sensor (for bank 2 sensor 2) wire from the 2 wire harness clamp brackets.
      GTY723400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

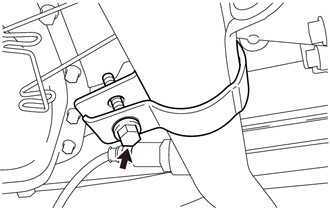

    5. Loosen the bolt and separate the exhaust pipe clamp from the No. 1 exhaust pipe support bracket.
      GTY739038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

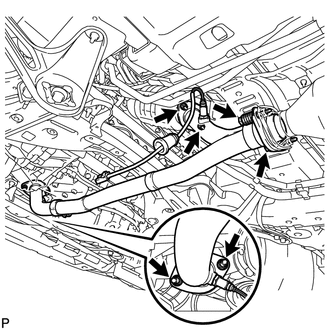

    6. Remove the 2 bolts and 2 compression springs to separate the front exhaust pipe assembly from the center exhaust pipe sub-assembly (TWC: rear catalyst).
      GTY306141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 4 nuts and front exhaust pipe assembly from the exhaust manifold sub-assembly LH (TWC: front catalyst) and exhaust manifold sub-assembly RH (TWC: front catalyst).
    8. Remove the 3 gaskets from the front exhaust pipe assembly.
  8. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for AWD)
    1. Disconnect the oxygen sensor (for bank 1 sensor 2) connector.
      GTY723375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the oxygen sensor (for bank 1 sensor 2) wire grommet and pass the connector through the hole to the outside of the vehicle.
    3. Disconnect the oxygen sensor (for bank 2 sensor 2) connector.
      GTY723401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 6 clamps to disconnect the oxygen sensor (for bank 2 sensor 2) wire from the 2 wire harness clamp brackets.
      GTY723400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Loosen the bolt and separate the exhaust pipe clamp from the No. 1 exhaust pipe support bracket.
      GTY739038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

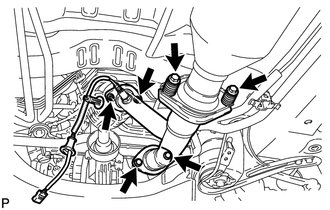

    6. Remove the 2 bolts and 2 compression springs to separate the front No. 3 exhaust pipe sub-assembly from the center exhaust pipe sub-assembly (TWC: rear catalyst).
      GTY298357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 2 nuts, 2 bolts and front No. 3 exhaust pipe sub-assembly from the exhaust manifold sub-assembly RH (TWC: front catalyst) and front exhaust pipe assembly.
    8. Remove the 3 gaskets from the front No. 3 exhaust pipe sub-assembly and front exhaust pipe assembly.

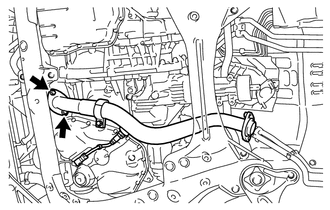

    9. Remove the 2 nuts and front exhaust pipe assembly from the exhaust manifold sub-assembly LH (TWC: front catalyst).
      GTY723399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Remove the gasket from the front exhaust pipe assembly.
  9. REMOVE MANIFOLD STAY

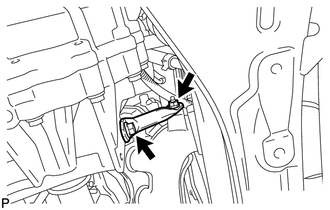

    1. Remove the bolt, nut and manifold stay.
      GTY298349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH

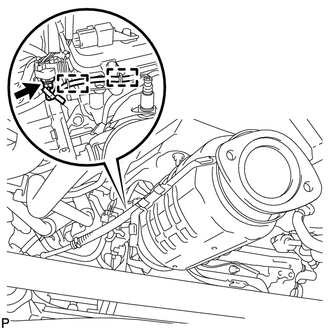

    1. Disconnect the air fuel ratio sensor (for Bank 1 Sensor 1) connector and disengage the 2 harness clamps.
      GTY298386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

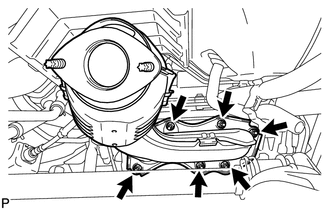

    2. Using a 12 mm deep socket wrench, remove the 6 nuts and exhaust manifold sub-assembly RH.
      GTY306145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

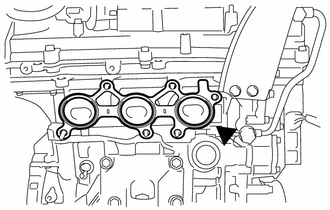

  11. REMOVE EXHAUST MANIFOLD TO HEAD GASKET
    1. Remove the exhaust manifold to head gasket from the cylinder head sub-assembly.
      GTY727370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

    Refer to PROCEDURE - Step 12

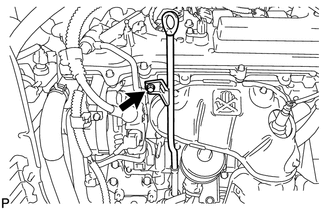

  13. REMOVE NO. 2 OIL LEVEL DIPSTICK GUIDE
    1. Remove the oil level dipstick.
      GTY306146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and No. 2 oil level dipstick guide.
    3. Remove the O-ring from the No. 2 oil level dipstick guide.
      GTY731862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 2 MANIFOLD STAY

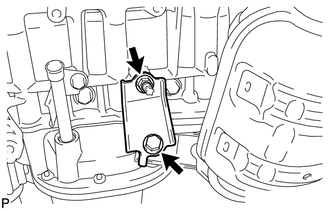

    1. Remove the bolt, nut and No. 2 manifold stay.
      GTY298388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR

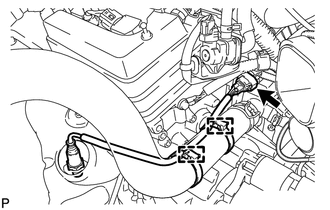

    1. Disconnect the air fuel ratio sensor (for Bank 2 Sensor 1) connector and disengage the 2 harness clamps.
      GTY298381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

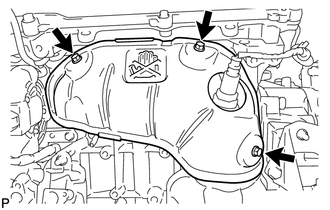

    2. Remove the 3 bolts and No. 2 exhaust manifold heat insulator.
      GTY298382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH

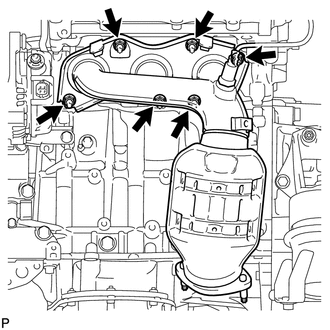

    1. Using a 12 mm deep socket wrench, remove the 6 nuts and exhaust manifold sub-assembly LH.
      GTY298383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

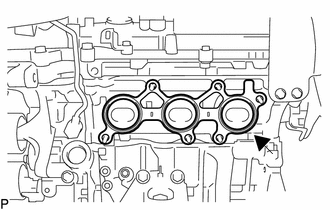

  17. REMOVE EXHAUST MANIFOLD TO HEAD GASKET LH
    1. Remove the exhaust manifold to head gasket LH from the cylinder head sub-assembly.
      GTY689958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 2 AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)

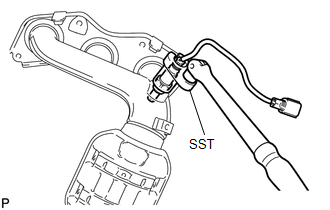

    1. Using SST, remove the No. 2 air fuel ratio sensor (for Bank 2 Sensor 1) from the exhaust manifold sub-assembly LH.
      GTY301247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00010
      NOTE:

      If a component has been dropped or subjected to a strong impact, replace No. 2 air fuel ratio sensor (for Bank 2 Sensor 1).
