Removal [12/2015 - 11/2017]: Procedure

  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

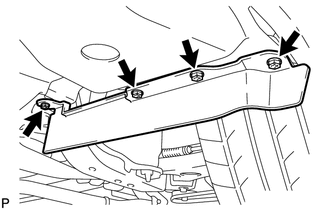

    1. Remove the 4 screws and the front wheel opening extension pad LH.
      GTY299073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SEPARATE FRONT FENDER LINER LH

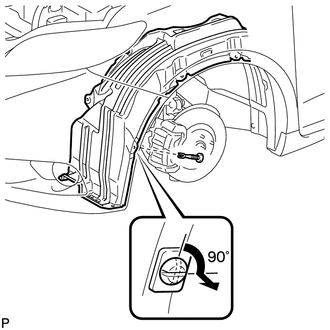

    1. Using a screwdriver, turn the pin 90 degrees and remove the pin hold clip.
      GTY299071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

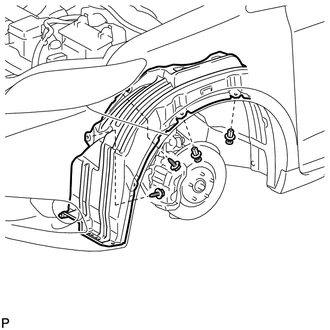

    2. Remove the 2 clips.
      GTY299069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 screws.
  3. REMOVE RADIATOR GRILLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)

    Refer to PROCEDURE - Step 2

  5. REMOVE HOOD LOCK NUT CAP

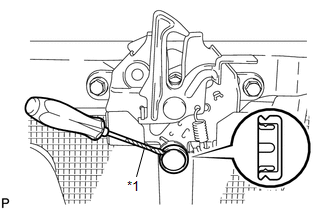

    1. Using a screwdriver with its tip wrapped in protective tape, remove the hood lock nut cap.
      GTY295450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
  6. REMOVE HOOD LOCK ASSEMBLY
    1. Disconnect the connector.
      GTY691437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and hood lock.
    3. Disconnect the hood lock control cable.
  7. REMOVE DOOR SCUFF PLATE ASSEMBLY LH

    HINT:

    Use the same procedure as for the RH side (Refer to PROCEDURE - Step 9 ).

  8. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  9. REMOVE COWL SIDE TRIM BOARD LH

    HINT:

    Use the same procedure as for the RH side (Refer to PROCEDURE - Step 11 ).

  10. REMOVE NO. 1 INSTRUMENT PANEL LOWER FINISH PANEL

    Refer to PROCEDURE - Step 23

  11. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY
    1. Disconnect the hood lock control cable from hood lock control lever.

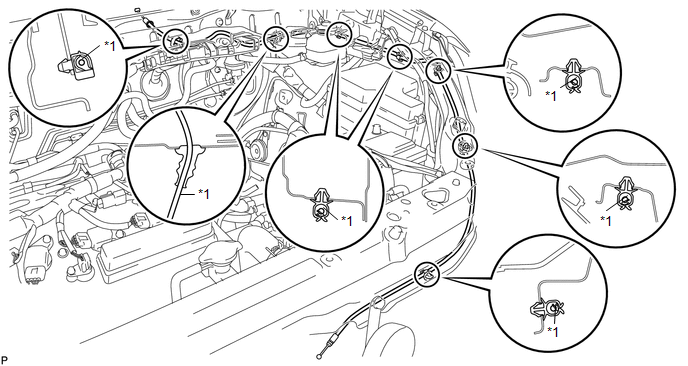

    2. Using a screwdriver with its tip wrapped in protective tape, disconnect the clamps shown in the illustration.
      GTY294442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Hood Lock Control Cable - -
    3. Pull the cable from the engine room and remove it.
