Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    (Refer to REMOVAL [12/2015 - ] )

  2. REMOVE FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  3. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  4. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 4

  5. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 3

  6. REMOVE AIR CLEANER INLET COVER ASSEMBLY SEAL

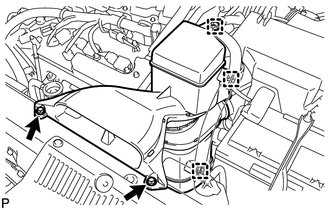

    1. Disengage the 3 vacuum hose clamps.
      GTY706198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and the air cleaner inlet cover assembly seal.
  7. REMOVE AIR CLEANER AND HOSE

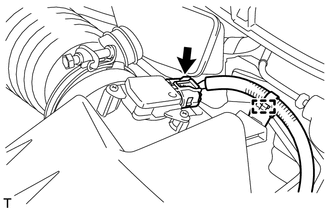

    1. Disconnect the mass air flow meter connector.
      GTY306760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the wire harness clamp.
    3. Disconnect the vacuum hose.

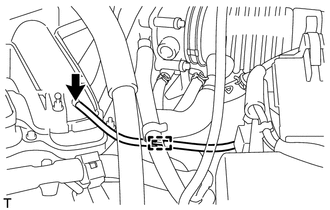

      GTY686632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Separate the vacuum hose from the hose clamp.
    5. Disconnect the vacuum switching valve connector.

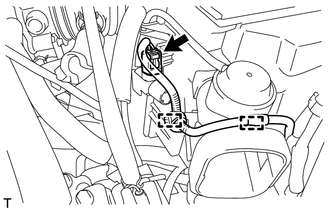

      GTY301069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disengage the 2 wire harness clamps.
    7. Disconnect the 2 vacuum hoses.

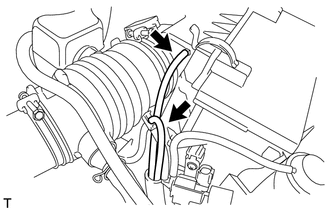

      GTY301067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

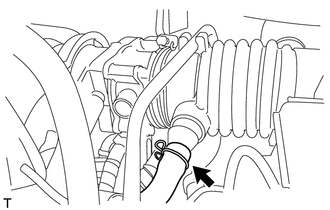

    8. Loosen the clip and disconnect the No. 2 ventilation hose.
      GTY301068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Separate the fuel vapor feed hose from the hose clamp.

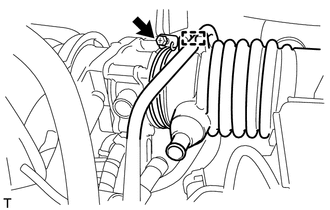

      GTY305355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Loosen the hose clamp and disconnect the air cleaner hose.
    11. Remove the 2 bolts and the air cleaner assembly.

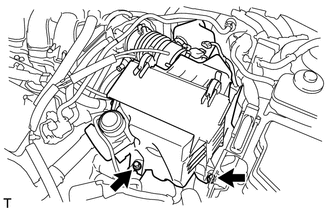

      GTY301065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. DISCONNECT WATER BY-PASS HOSE
    1. Loosen the clip and disconnect the water by-pass hose.

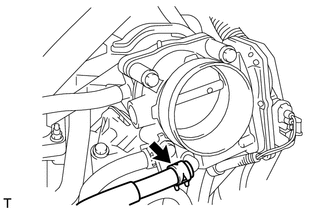

      GTY294973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT NO. 2 WATER BY-PASS HOSE
    1. Loosen the clip and disconnect the No. 2 water by-pass hose.

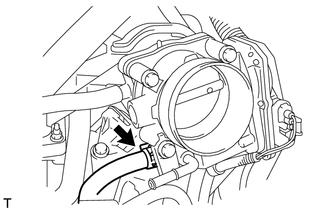

      GTY305356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE THROTTLE WITH MOTOR BODY ASSEMBLY
    1. Disconnect the throttle body connector and the wire harness clamp.

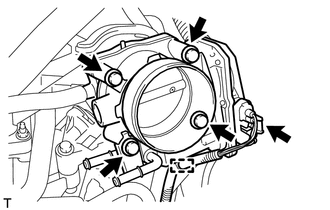

      GTY295916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts, wire harness clamp stay and the throttle body.
    3. Remove the gasket from the intake air surge tank assembly.
