Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 4

  2. DRAIN ENGINE COOLANT

    See step  3

  3. REMOVE AIR CLEANER INLET COVER ASSEMBLY SEAL

    Refer to PROCEDURE - Step 25

  4. REMOVE RADIATOR GRILLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

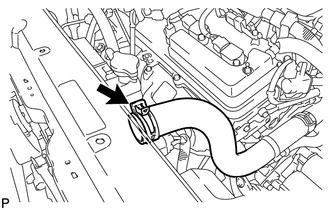

  5. DISCONNECT NO. 1 RADIATOR HOSE
    1. Loosen the clamp and disconnect the No. 1 radiator hose from the radiator.
      GTY306002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

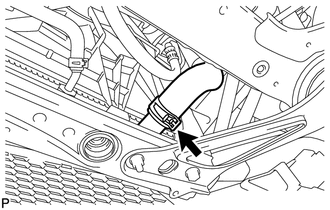

  6. DISCONNECT NO. 2 RADIATOR HOSE
    1. Loosen the clamp and disconnect the No. 2 radiator hose from the radiator.
      GTY298354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

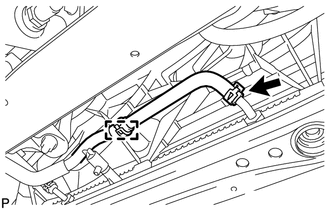

  7. DISCONNECT INLET OIL COOLER HOSE
    1. Loosen the clamp and disconnect the inlet oil cooler hose and clamp from the radiator.
      GTY298352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

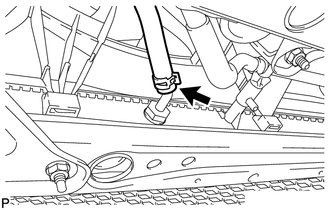

  8. DISCONNECT OUTLET OIL COOLER HOSE
    1. Loosen the clamp and disconnect the outlet oil cooler hose.
      GTY298353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE MILLIMETER WAVE RADAR SENSOR (w/ Dynamic Radar Cruise Control System)

    Refer to PROCEDURE - Step 2

  10. REMOVE HOOD LOCK NUT CAP

    Refer to PROCEDURE - Step 5

  11. REMOVE HOOD LOCK ASSEMBLY

    Refer to PROCEDURE - Step 6

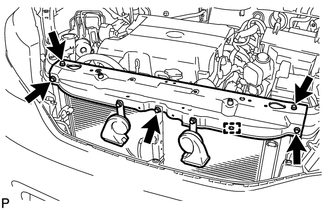

  12. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY
    1. Disconnect the clamp of the hood lock control cable.
      GTY298358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 horn connectors.
    3. Remove the 5 bolts and upper radiator support.
  13. REMOVE NO. 2 RADIATOR ASSEMBLY

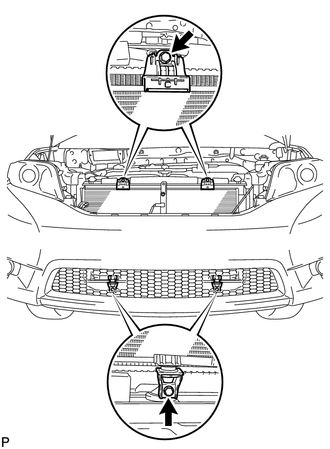

    1. Remove the 4 bolts and the 4 cooler brackets.
      GTY454292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

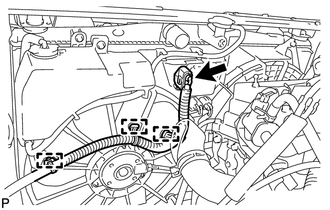

    2. Disconnect the 3 wire harness clamps and connector.
      GTY298356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

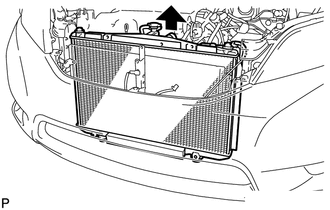

    3. Remove the radiator assembly and fan assembly with motor from the vehicle.
      GTY298365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not apply any excessive force to the cooler condenser assembly or pipe when removing the radiator assembly.

    4. Remove the 2 radiator support cushions and the 2 lower radiator supports from the radiator.
      GTY433394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Radiator Support Cushion
      *2 Lower Radiator Support

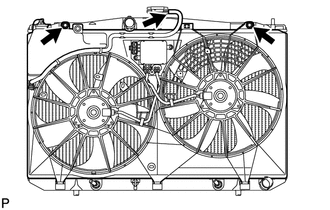

    5. Disconnect the radiator reservoir tank hose.
      GTY298364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

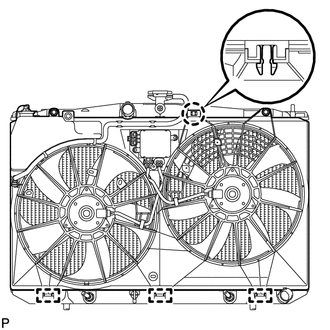

    6. Remove the 2 bolts.
    7. Disengage the claw and pull up the fan assembly with motor from the radiator assembly to remove the fan assembly with motor.
      GTY298363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the radiator drain cock plug from the radiator.
