Removal [11/2016 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

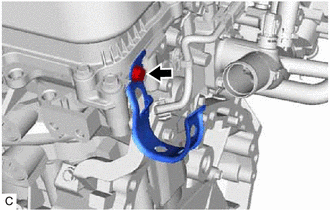

  1. REMOVE RADIATOR PIPE CLAMP
    1. GTY645432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the bolt and radiator pipe clamp from the camshaft housing sub-assembly LH.

  2. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE
    1. Remove the engine oil level dipstick from the engine oil level dipstick guide.
    2. Remove the bolt and engine oil level dipstick guide from the camshaft housing sub-assembly LH and oil pan sub-assembly.
      GTY669574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the engine oil level dipstick guide O-ring from the engine oil level dipstick guide.
      GTY652149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE V-RIBBED BELT

    Refer to PROCEDURE - Step 3

  4. REMOVE COMPRESSOR WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 7

  5. REMOVE NO. 4 CYLINDER BLOCK INSULATOR
    1. Remove the No. 4 cylinder block insulator.
      GTY669571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 COMPRESSOR MOUNTING BRACKET
    1. Remove the 4 bolts and No. 1 compressor mounting bracket.
      GTY651056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 5 CYLINDER BLOCK INSULATOR
    1. Remove the No. 5 cylinder block insulator.
      GTY651045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE INJECTOR DRIVER

    Refer to PROCEDURE - Step 6

  9. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 9

  10. REMOVE THROTTLE BODY GASKET

    Refer to PROCEDURE - Step 10

  11. DISCONNECT VENTILATION HOSE

    Refer to PROCEDURE - Step 5

  12. REMOVE NO. 2 SURGE TANK STAY

    Refer to PROCEDURE - Step 7

  13. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to PROCEDURE - Step 8

  14. REMOVE AIR SURGE TANK TO INTAKE MANIFOLD GASKET

    Refer to PROCEDURE - Step 9

  15. REMOVE REAR ENGINE MOUNTING BRACKET
    1. Remove the 3 bolts and rear engine mounting bracket from the cylinder block sub-assembly.
      GTY669570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 1 ENGINE COVER
    1. Remove the No. 1 engine cover from the cylinder head cover sub-assembly LH.
      GTY669573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE VENTILATION HOSE
    1. GTY669572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Slide the clip and remove the ventilation hose from the PCV valve (ventilation valve sub-assembly).

  18. REMOVE NO. 2 VENTILATION HOSE
    1. Slide the clip and remove the No. 2 ventilation hose from the cylinder head cover sub-assembly.
      GTY685092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE WATER BY-PASS HOSE ASSEMBLY
    1. Slide the clip and remove the water by-pass hose assembly from the water inlet pipe.
      GTY685091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE NO. 3 WATER BY-PASS HOSE
    1. Slide the clip and remove the No. 3 water by-pass hose from the water inlet pipe.
      GTY669569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE NO. 2 WATER BY-PASS HOSE
    1. Slide the clip and remove the No. 2 water by-pass hose from the water outlet.
      GTY669568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE NO. 6 WATER BY-PASS HOSE
    1. Slide the clip and remove the No. 6 water by-pass hose from the water outlet.
      GTY669579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. DISCONNECT FUEL TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  24. REMOVE NO. 2 ENGINE MOUNTING STAY RH
    1. Remove the bolt and disconnect the wire harness clamp bracket from the No. 2 engine mounting stay RH.
      GTY614793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY614795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the bolt and No. 2 engine mounting stay RH from the intake manifold.

  25. REMOVE INTAKE MANIFOLD

    Refer to PROCEDURE - Step 21

  26. REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET

    Refer to PROCEDURE - Step 22

  27. REMOVE FUEL INJECTOR ASSEMBLY (for Direct Injection)

    Refer to REMOVAL [11/2016 - ]

  28. REMOVE KNOCK CONTROL SENSOR

    Refer to PROCEDURE - Step 1

  29. REMOVE SENSOR WIRE
    1. Disengage the 2 clamps and remove the bolt and sensor wire.
      GTY624575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 10

  31. REMOVE WATER PUMP PULLEY

    Refer to PROCEDURE - Step 3

  32. REMOVE WIRE HARNESS CLAMP BRACKET
    1. Remove the bolt and wire harness clamp bracket from the camshaft housing sub-assembly.
      GTY625565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
