Removal [11/2016 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22

  2. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [11/2016 - ]

  3. DISCONNECT VENTILATION HOSE

    Refer to PROCEDURE - Step 5

  4. DISCONNECT PURGE VALVE (PURGE VSV)

    Refer to PROCEDURE - Step 6

  5. REMOVE NO. 2 SURGE TANK STAY

    Refer to PROCEDURE - Step 7

  6. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to PROCEDURE - Step 8

  7. REMOVE AIR SURGE TANK TO INTAKE MANIFOLD GASKET

    Refer to PROCEDURE - Step 9

  8. REMOVE EGR COOLER ASSEMBLY

    Refer to REMOVAL [11/2016 - ]

  9. REMOVE NO. 1 ENGINE COVER

    See step  2

  10. REMOVE IGNITION COIL ASSEMBLY

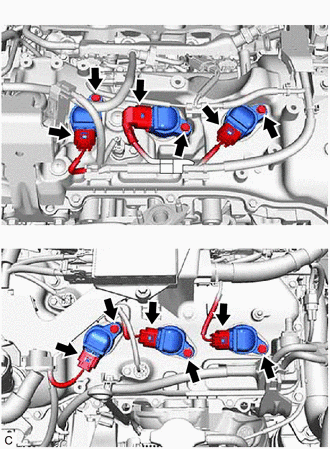

    1. Disconnect the 6 ignition coil assembly connectors.
      GTY704084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 bolts and 6 ignition coil assemblies from the cylinder head cover sub-assembly and cylinder head cover sub-assembly LH.
      NOTE:

      If an ignition coil assembly has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.

  11. REMOVE SPARK PLUG

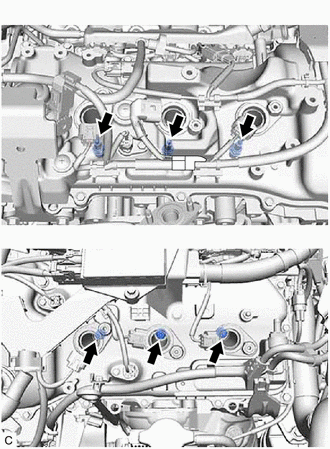

    1. Remove the 6 spark plugs from the cylinder head sub-assembly and cylinder head LH.
      NOTE:

      If a spark plug has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.

      GTY704085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
