Reassembly [12/2013 - 11/2015]: Procedure

  1. INSTALL SEAT ADJUSTER COVER CAP
    1. Install the 2 seat adjuster cover caps.

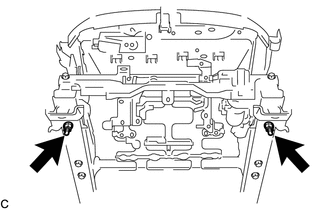

      GTY429670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT SEAT WIRE
    1. Connect each connector and engage each clamp to install the front seat wire.
  3. INSTALL NO. 1 SEAT WIRE (for Front Passenger Side)
    1. Connect each connector and engage each clamp to install the No. 1 seat wire.
  4. INSTALL LH SEAT FRONT SEAT CUSHION EDGE PROTECTOR LH (for Driver Side)
    1. GTY429663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Engage the 3 claws and guide to install the LH seat front seat cushion edge protector LH.

  5. INSTALL LH SEAT FRONT SEAT CUSHION EDGE PROTECTOR RH (for Driver Side)

    HINT:

    Use the same procedure as for the LH side.

  6. INSTALL RH SEAT FRONT SEAT CUSHION EDGE PROTECTOR LH (for Front Passenger Side)
    1. GTY429669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Engage the 3 claws and guide to install the RH seat front seat cushion edge protector LH.

  7. INSTALL RH SEAT FRONT SEAT CUSHION EDGE PROTECTOR RH (for Front Passenger Side)

    HINT:

    Use the same procedure as for the LH side.

  8. INSTALL FRONT SEAT LOWER CUSHION SHIELD LH (for Driver Side)
    1. Engage the clip to install the front seat lower cushion shield LH.
      GTY429660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the hook as shown in the illustration.
    3. Install the screw.
  9. INSTALL FRONT SEAT LOWER CUSHION SHIELD RH (for Driver Side)

    HINT:

    Use the same procedure as for the LH side.

  10. INSTALL SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY (w/ Climate Control Seat System)
    1. Engage the 2 hooks to install the seat cushion climate control blower assembly.

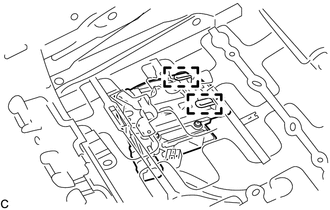

      GTY451672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
      GTY429657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

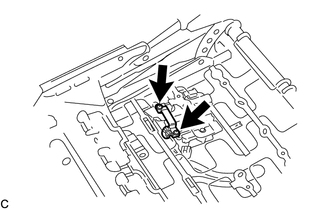

  11. INSTALL SEAT CUSHION CLIMATE CONTROL BRACKET (w/ Climate Control Seat System)
    1. Install the seat cushion climate control bracket to the seat cushion climate control blower assembly with the 2 screws.
      GTY429658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL SEAT CUSHION CLIMATE CONTROL DUCT (w/ Climate Control Seat System)
    1. Engage the 2 claws to install the seat cushion climate control duct to the seat cushion climate control blower assembly.

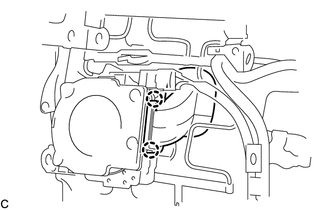

      GTY429656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL FRONT SEAT AIRBAG SUB-ASSEMBLY RH (for Front Passenger Side)

    Refer to PROCEDURE - Step 1

  14. INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 1

  15. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER
    1. w/o Variable Seat Cushion System:

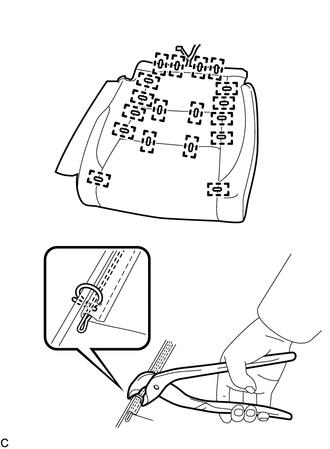

      1. Using hog ring pliers, install the separate type front seat cushion cover to the separate type front seat cushion pad with 18 new hog rings.
        GTY451671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • Be careful not to damage the separate type front seat cushion cover.
        • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seat cushion cover.
      2. Using hog ring pliers, install 5 new hog rings.
        GTY423589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • Be careful not to damage the separate type front seat cushion cover.
        • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seat cushion cover.
    2. w/ Variable Seat Cushion System:
      1. Using hog ring pliers, install the separate type front seat cushion cover to the separate type front seat cushion pad with 18 new hog rings.
        GTY451671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • Be careful not to damage the separate type front seat cushion cover.
        • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seat cushion cover.
      2. Using hog ring pliers, install 2 new hog rings.

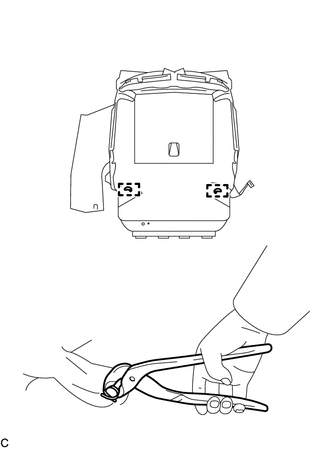

        GTY429697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • Be careful not to damage the separate type front seat cushion cover.
        • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seat cushion cover.
  16. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD (for Driver Side)
    1. w/o Variable Seat Cushion System:

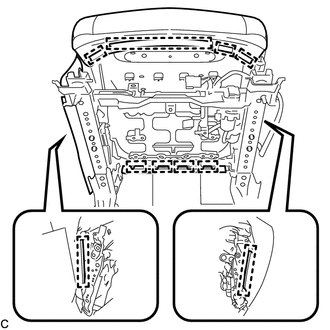

      GTY429681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Engage the 10 hooks to install the separate type front seat cushion cover with pad.
    2. w/ Variable Seat Cushion System:
      1. Using hog ring pliers, install the separate type front seat cushion cover with pad with 4 new hog rings.
        GTY429682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • Be careful not to damage the separate type front seat cushion cover.
        • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seat cushion cover.

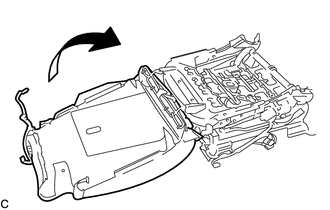

      2. Turn back the separate type front seat cushion cover with pad to its original position.
        GTY429683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Engage the 6 hooks.
        GTY429687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Engage the 4 hooks.

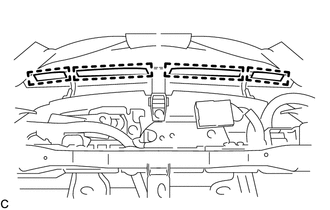

        GTY429686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Engage the 4 hooks.
        GTY451679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Engage the 2 fasteners.
        GTY444758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Fastener
    3. w/ Seat Heater System:
      1. Engage the 3 clamps.
        GTY451677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

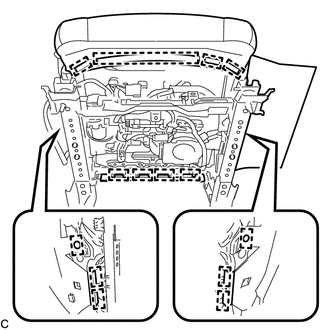

  17. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD (for Front Passenger Side)
    1. Engage the 14 hooks to install the separate type front seat cushion cover with pad.
      GTY429665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Seat Heater System:
      1. Engage the 3 clamps.
        GTY427506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL FRONT SEAT NO. 2 WIRE
    1. Connect each connector and engage each clamp to install the front seat No. 2 wire.
  19. INSTALL FRONT SEATBACK HOOK
    1. Install the 2 front seatback hooks to the separate type front seatback spring assembly.
      GTY429677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 claws.

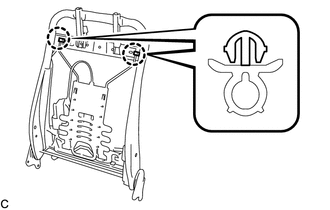

      GTY429676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL FRONT SEATBACK EDGE PROTECTOR
    1. Engage each claw to install the 2 front seatback edge protectors.

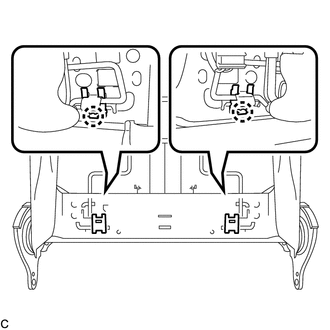

      GTY449496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL SEATBACK CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)
    1. Engage the 4 hooks to install the seatback climate control blower.
      GTY429675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the clip.
      GTY429673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the connector.
  22. INSTALL FRONT SEAT AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 1

  23. INSTALL FRONT SEATBACK HEATER ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 1

  24. INSTALL SEPARATE TYPE FRONT SEATBACK COVER
    1. Using hog ring pliers, install the separate type front seatback cover to the separate type front seatback pad with 2 new hog rings.

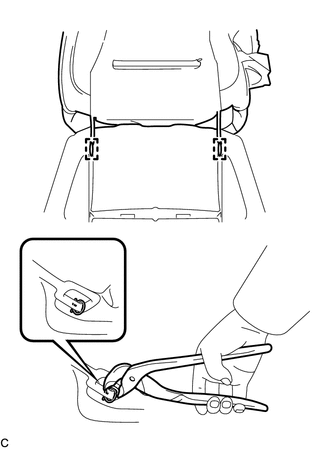

      GTY429679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the separate type front seatback cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seatback cover.
    2. GTY429702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using hog ring pliers, install 4 new hog rings.

      NOTE:
      • Be careful not to damage the separate type front seatback cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seatback cover.
  25. INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
    1. Install the separate type front seatback cover with pad.
  26. INSTALL FRONT SEAT HEADREST SUPPORT ASSEMBLY
    1. Engage each claw to install the 2 front seat headrest support assemblies.

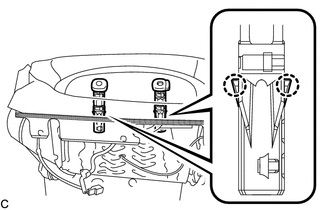

      GTY429714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Climate Control Seat System:
      1. Engage the 2 claws to connect the seatback climate control blower to the separate type front seatback pad.
        GTY429715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 3 brackets and install the 2 nuts.
      GTY440728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bracket

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

      NOTE:
      • For vehicles with a front seat airbag assembly, the separate type front seatback cover with pad must be securely installed. Otherwise, the front seat airbag assembly may not deploy properly.
      • Make sure that the strap is not twisted after installing the nut.
      • Install the brackets securely.
    4. Turn back the separate type front seatback cover to its original position.
      GTY429717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. GTY455611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using hog ring pliers, install 2 new hog rings.

      NOTE:
      • Be careful not to damage the separate type front seatback cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seatback cover.
    6. Using hog ring pliers, install 3 new hog rings.
      GTY429719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the separate type front seatback cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seatback cover.
    7. Using hog ring pliers, install 5 new hog rings.
      GTY429726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the separate type front seatback cover.
      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seatback cover.
  27. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY
    1. Engage the 4 guides to install the separate type front seatback assembly to the separate type front seat cushion assembly.
      GTY429728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 4 bolts.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

    3. w/ Seat Heater System:
      1. Engage the clamp.
        GTY451688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Connect the connector.
    4. Engage the claw and 3 clamps to install the front seat airbag assembly wire harness.
      GTY429730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Engage the fastener to secure the front seat airbag assembly wire harness.
      GTY449567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener
    6. Engage the clamp.
      GTY429712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Connect the connector.
    8. Engage the 2 hooks.

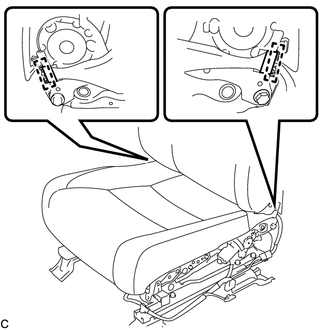

      GTY429734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL SEAT VARIABLE CUSHION SWITCH (w/ Variable Seat Cushion System)

    Refer to PROCEDURE - Step 1

  29. INSTALL FRONT LUMBAR POWER SEAT SWITCH (for Driver Side)

    Refer to PROCEDURE - Step 1

  30. INSTALL FRONT POWER SEAT SWITCH (w/o Seat Position Memory System)

    Refer to PROCEDURE - Step 1

  31. INSTALL POSITION CONTROL ECU AND SWITCH ASSEMBLY (w/ Seat Position Memory System)

    Refer to PROCEDURE - Step 1

  32. INSTALL RECLINING POWER SEAT SWITCH KNOB
    1. Engage the 4 claws to install the reclining power seat switch knob.
      GTY429749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
    1. Engage the 4 claws to install the slide and vertical power seat switch knob.
      GTY451692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL FRONT SEAT INNER NO. 1 CUSHION SHIELD
    1. Engage the clamp.
      GTY429754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

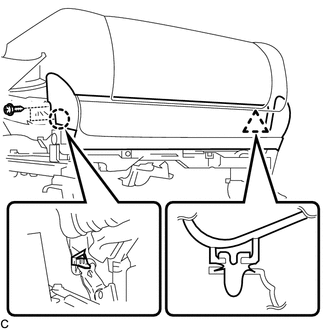

    2. Engage the claw and clip to install the front seat inner No. 1 cushion shield.
      GTY451694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 screws.
    4. w/ Variable Seat Cushion System:
      1. GTY423566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Engage the hook.

  35. INSTALL FRONT SEAT CUSHION SHIELD (for Driver Side)
    1. w/ Variable Seat Cushion System:
      1. GTY451693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Connect the connector to the variable cushion switch.

    2. Connect the connector to the front lumbar power seat switch.
      GTY429755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/o Seat Position Memory System:
      GTY429753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the connector to the front power seat switch.
    4. w/ Seat Position Memory System:

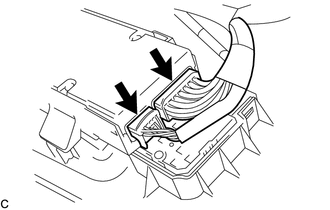

      GTY429751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the 2 connectors to the position control ECU and switch assembly.
    5. Install the wire harness to the wire harness guide.
      GTY446786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Wire Harness Guide
    6. Engage the 2 clamps.
    7. Engage the 3 claws to close the wire harness cover.
      GTY429765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Engage the guide.

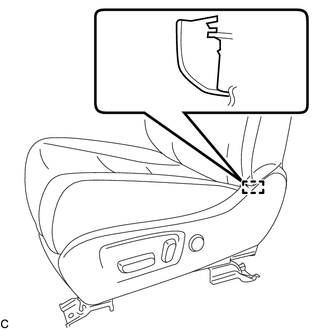

      GTY693310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

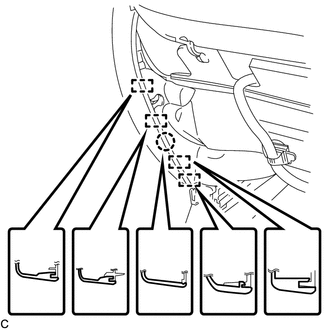

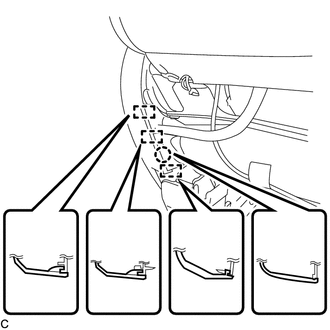

    9. GTY425934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Engage the claw and 3 guides.

    10. Engage the guide.
      GTY693309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

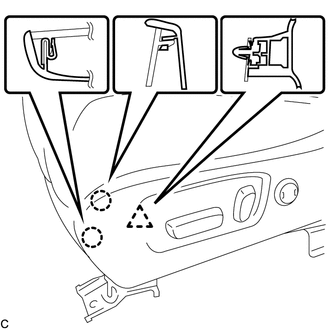

    11. Engage the 2 claws and clip to install the front seat cushion shield.
      GTY425941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    12. Engage the claw.
      GTY425942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL FRONT SEAT CUSHION SHIELD (for Front Passenger Side)
    1. Connect the connector to the front power seat switch.
      GTY423567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the wire harness to the wire harness guide.
      GTY455625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Wire Harness Guide
    3. Engage the 2 clamps.
    4. Engage the 3 claws to close the wire harness cover.
      GTY423569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

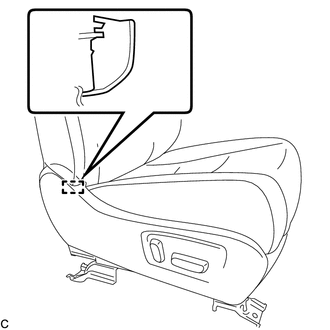

    5. Engage the guide.
      GTY732346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

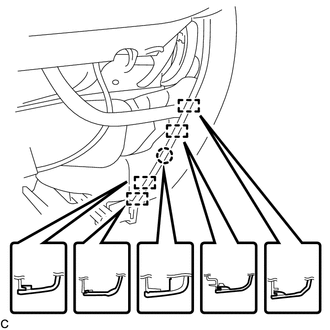

    6. GTY423558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Engage the claw and 4 guides.

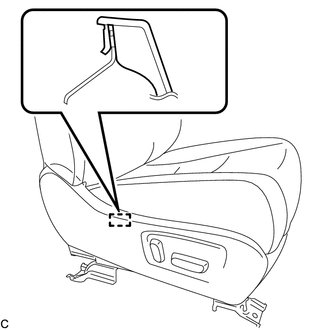

    7. Engage the guide.
      GTY693056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Engage the 2 claws and clip to install the front seat cushion shield.
      GTY423575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Engage the claw.
      GTY423565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL FRONT SEAT INNER CUSHION SHIELD (for Driver Side)
    1. Engage the claw and guide to install the front seat inner cushion shield.
      GTY425940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

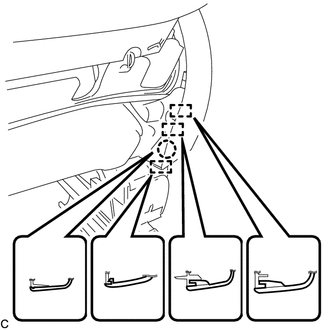

    2. Engage the claw and 3 guides.
      GTY425939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL FRONT SEAT INNER CUSHION SHIELD (for Front Passenger Side)
    1. Engage the claw and guide to install the front seat inner cushion shield.
      GTY425938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the claw and 4 guides.
      GTY425936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. CONNECT SEPARATE TYPE FRONT SEATBACK COVER (w/o Climate Control Seat System)

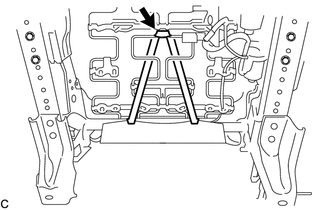

    1. Connect the rubber band of the separate type front seatback cover.
      GTY425960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. CONNECT SEPARATE TYPE FRONT SEATBACK COVER (w/ Climate Control Seat System)

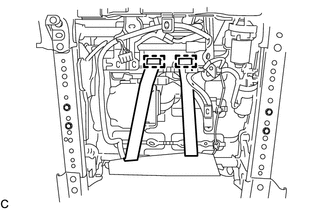

    1. Engage the 2 hooks to connect the 2 rubber bands of the separate type front seatback cover.
      GTY425963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)

    Refer to PROCEDURE - Step 1

  42. INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Front Passenger Side)

    Refer to PROCEDURE - Step 2

  43. INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY (w/ Seat Heater System)

    Refer to PROCEDURE - Step 1

  44. INSTALL OCCUPANT DETECTION ECU (for Front Passenger Side)

    Refer to PROCEDURE - Step 1

  45. INSTALL SEAT POSITION AIRBAG SENSOR (for Driver Side)

    Refer to PROCEDURE - Step 2

scientia non olet · About LEMON Manuals
