Installation [12/2013 - ]: Procedure

  1. INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY
    1. Engage the 2 clamps to install the seat heater control sub-assembly.
      GTY450870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

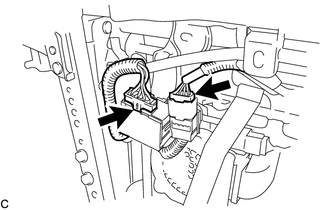

    2. Connect the 2 connectors.
      GTY425959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT SEAT ASSEMBLY (for Manual Seat)

    Refer to INSTALLATION [12/2013 - ]

  3. INSTALL FRONT SEAT ASSEMBLY (for Power Seat)

    Refer to INSTALLATION [12/2013 - ]
