Installation [12/2013 - ]: Procedure

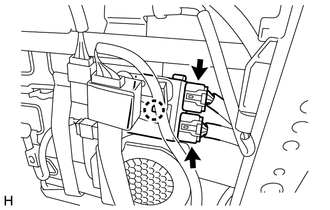

1. Engage the claw to install the occupant detection ECU.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   If the occupant detection ECU has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the occupant detection ECU with a new one.

2. Connect the 2 connectors.
   NOTE:

   When installing the occupant detection ECU, be careful that the SRS wiring does not interfere with or is pinched between other parts.

HINT:

Use the same procedure as for the LH side.

For Manual Seat: Refer to INSTALLATION [12/2013 - ]

For Power Seat: Refer to INSTALLATION [12/2013 - ]

Refer to DTC CHECK / CLEAR [12/2013 - ]

Refer to INITIALIZATION [12/2013 - ]
