Removal [10/2014 - 10/2015]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY LH

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE FRONT SEAT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE REAR SEAT ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  4. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Disengage the 10 claws and remove the front door scuff plate LH.
      GTY374142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Remove the clip.
      GTY374140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips and remove the cowl side trim sub-assembly LH.
  6. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Remove the front door opening trim weatherstrip LH.
  7. REMOVE FRONT PILLAR GARNISH LH
    1. Pull the upper part of the garnish toward the inside of the cabin and disengage the garnish from the base of the 2 clips.
      GTY606171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Front Pillar Garnish Clip

      HINT:

      Let the front pillar garnish LH hang from the front pillar garnish clip.

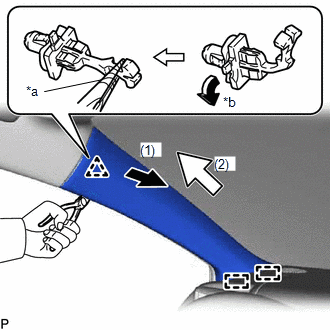

    2. Turn the end of the front pillar garnish clip 90° with needle-nosed pliers and pull the garnish in the direction indicated by the arrow (1) in the illustration to remove it from the front pillar garnish LH.
      GTY589097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Protective Tape
      *b 90°

      HINT:

      Tape the tips of the needle-nosed pliers before use.

    3. Pull the garnish in the direction indicated by the arrow (2) in the illustration to disengage the 2 guides and remove the front pillar garnish LH.
    4. Remove the front pillar garnish clip from the vehicle body.
      NOTE:

      Replace the front pillar garnish clip with a new one.

    5. Protect the curtain shield airbag assembly.
      GTY574482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Adhesive Tape
      *b Protective Cover
      *1 Curtain Shield Airbag Assembly
      1. Cover the airbag with a piece of cloth or nylon and secure the edges of the cover with tape as shown in the illustration.
        NOTE:

        Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish LH is removed.

  8. REMOVE REAR DOOR SCUFF PLATE LH
    1. Disengage the 8 claws and remove the rear door scuff plate LH.
      GTY374141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
    1. Remove the rear door opening trim weatherstrip LH.
  10. REMOVE LAP BELT OUTER ANCHOR COVER (for LH Side)

    Refer to PROCEDURE - Step 7

  11. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 8

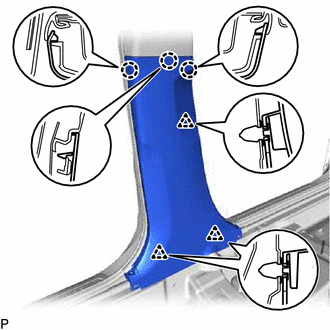

  12. REMOVE CENTER PILLAR LOWER GARNISH LH
    1. Disengage the 3 claws and 3 clips, and remove the center pillar lower garnish LH.
      GTY374177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE CENTER PILLAR UPPER GARNISH LH
    1. Remove the 2 screws.
      GTY374178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clip.
    3. Pass the floor anchor of the front seat outer belt assembly LH through the center pillar upper garnish LH and remove the center pillar upper garnish LH.
  14. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  15. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  16. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  17. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  18. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  19. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  20. REMOVE LAP BELT OUTER ANCHOR COVER (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  21. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  22. REMOVE CENTER PILLAR LOWER GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  23. REMOVE CENTER PILLAR UPPER GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  24. REMOVE REAR SEAT SIDE GARNISH LH
    1. Disengage the 2 claws and 5 clamps, and remove the rear seat side garnish LH.
      GTY374179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
    1. Disengage the 4 clips.
      GTY383306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 guides and remove the roof side inner garnish assembly LH.
  26. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  27. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  28. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  29. REMOVE FLOOR CARPET BRACKET LH

    Refer to PROCEDURE - Step 30

  30. REMOVE FLOOR CARPET BRACKET RH

    Refer to PROCEDURE - Step 34

  31. REMOVE NO. 1 CONSOLE BOX MOUNTING BRACKET

    Refer to PROCEDURE - Step 20

  32. REMOVE NO. 1 CONSOLE BOX DUCT

    Refer to PROCEDURE - Step 35

  33. REMOVE LOWER SHIFT LEVER ASSEMBLY

    Refer to PROCEDURE - Step 22

  34. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ EC Mirror)

    Refer to PROCEDURE - Step 2

  35. REMOVE RAIN SENSOR COVER (w/ Rain Sensor)

    Refer to PROCEDURE - Step 1

  36. REMOVE ROOF CONSOLE BOX ASSEMBLY (w/o Sliding Roof)

    Refer to PROCEDURE - Step 1

  37. REMOVE ROOF CONSOLE BOX ASSEMBLY (w/ Sliding Roof)

    Refer to PROCEDURE - Step 2

  38. REMOVE SPOT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  39. REMOVE ASSIST GRIP SUB-ASSEMBLY

    HINT:

    Use the same procedure for the RH side and LH side.

    1. Using a screwdriver, disengage the 2 claws and remove the assist grip cover LH.
      GTY543674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Protective Tape
      NOTE:

      Do not forcibly pry the assist grip cover LH to prevent them from being deformed.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the assist grip cover RH.

      HINT:

      Use the same procedure as for the LH side.

    3. Disengage the 2 clips and remove the assist grip.
      GTY374170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 clips from the vehicle body.
  40. REMOVE REAR ASSIST GRIP ASSEMBLY LH
    1. Using a screwdriver, disengage the 2 claws and remove the assist grip cover LH.
      GTY580179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Protective Tape
      NOTE:

      Do not forcibly pry the assist grip cover LH to prevent them from being deformed.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the assist grip cover RH.

      HINT:

      Use the same procedure as for the LH side.

    3. Disengage the 2 clips and remove the assist grip.
      GTY374166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 clips from the vehicle body.
  41. REMOVE REAR ASSIST GRIP ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  42. REMOVE VISOR BRACKET COVER (for LH Side)
    1. Using a moulding remover, disengage the 4 claws and remove the visor bracket cover.
      GTY374159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE VISOR ASSEMBLY LH
    1. except "TORX" Screw:
      GTY374155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 screws.
    2. for "TORX" Screw:
      1. Using a T25 "TORX" socket wrench, remove the 2 screws.
    3. Disengage the claw.
    4. Disconnect the connector and remove the visor assembly LH.
  44. REMOVE VISOR BRACKET COVER (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  45. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  46. REMOVE VISOR HOLDER

    HINT:

    Use the same procedure for the RH side and LH side.

    1. Using a screwdriver, disengage the 2 claws and remove the visor holder.
      GTY610364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Protective Tape

      HINT:

      Tape the screwdriver tip before use.

  47. REMOVE ROOF HEADLINING ASSEMBLY
    1. w/ EC Mirror:
      1. Disconnect the connector from the inner rear view mirror.
    2. w/ Rain Sensor:
      1. Disconnect the connector from the rain sensor.
    3. w/ Sliding Roof:
      1. Disconnect the connector from the sliding roof drive gear sub-assembly.

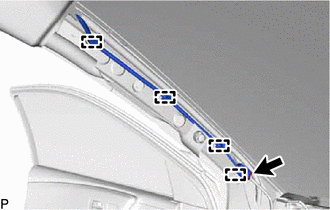

    4. for front pillar LH Side (for 1 Connector Type):
      1. Disengage the 4 clamps.
        GTY374028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the connector.
    5. for front pillar LH Side (for 2 Connector Type):
      1. Disengage the 4 clamps.
        GTY383286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the 2 connectors.
    6. for Front Pillar RH Side:
      GTY565001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Guide
      *b Clamp
      1. Remove the bolt.
      2. Disengage the guide and disconnect the bracket.
      3. Disengage the 3 clamps.
    7. for Rear Pillar RH Side (w/o Satellite Radio):
      1. Disengage the clamp.
        GTY374030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the connector.
    8. for Rear Pillar RH Side (w/ Satellite Radio):
      1. Disengage the 2 clamps.
        GTY374457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the 2 connectors.
    9. for Roof Side (w/o Sliding Roof):
      GTY374458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Slide the roof headlining assembly to disengage the 4 clips as shown in the illustration.

        HINT:

        Leave the 4 clips in the vehicle.

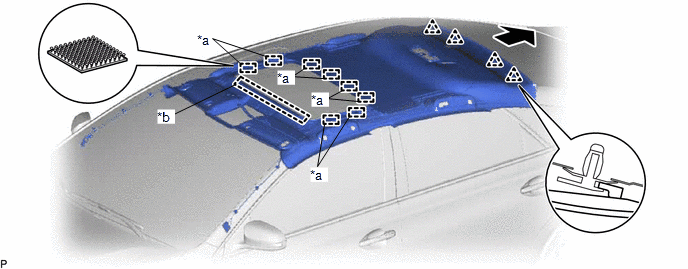

    10. for Roof Side (w/ Sliding Roof):
      GTY600874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Fastener *b Guide
      1. Disengage the 8 fasteners.
      2. Slide the roof headlining assembly to disengage the 4 clips and guide as shown in the illustration.

        HINT:

        Leave the 4 clips in the vehicle.

    11. Remove the roof headlining assembly from the vehicle through the front passenger door as shown in the illustration.
      GTY374463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the roof headlining assembly or vehicle interior.

    12. Remove the 4 clips from the vehicle body as shown in the illustration.
      GTY376294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
