Removal [10/2014 - 10/2015]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work (Refer to PRECAUTION [10/2014 - ] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

  3. REMOVE FRONT DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 4

  4. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP
    1. Disconnect the front door opening trim weatherstrip.
  5. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 8

  6. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP
    1. Disconnect the rear door opening trim weatherstrip.
  7. REMOVE LAP BELT OUTER ANCHOR COVER

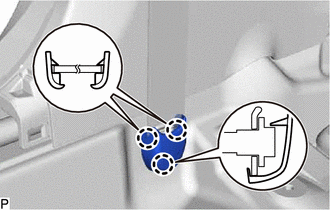

    1. Disengage the 3 claws to remove the lap belt outer anchor cover.
      GTY375389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY
    GTY375388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

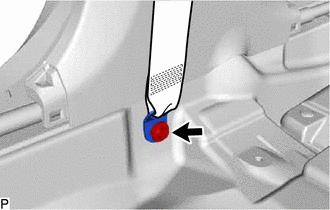

    1. Remove the bolt to disconnect the floor anchor of the front seat outer belt assembly.
  9. REMOVE CENTER PILLAR LOWER GARNISH

    Refer to PROCEDURE - Step 12

  10. REMOVE CENTER PILLAR UPPER GARNISH

    Refer to PROCEDURE - Step 13

  11. REMOVE FRONT SEAT OUTER BELT ASSEMBLY
    GTY375387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

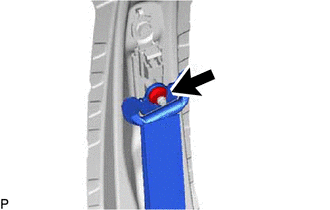

    1. Remove the nut and disconnect the shoulder anchor of the front seat outer belt assembly.

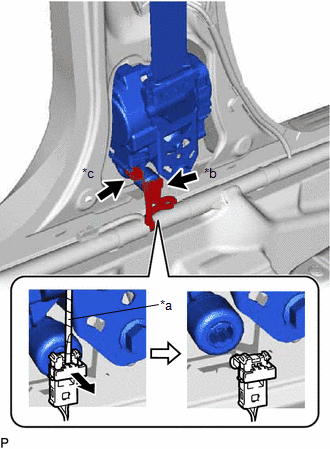

    2. Using a screwdriver, pull out the locking button in the direction indicated by the arrow in the illustration to release the lock, and disconnect the pretensioner connector as shown in the illustration.
      GTY364502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Protective Tape
      *b Pretensioner Connector
      *c Pre-collision Seat belt Connector

      HINT:

      Tape the screwdriver tip before use.

    3. w/ Pre-collision System:
      1. Disconnect the connector.

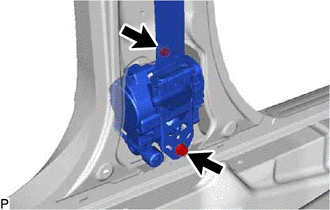

    4. Remove the 2 bolts and front seat outer belt assembly.
      GTY375409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

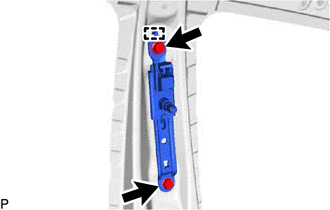

    1. Remove the 2 bolts.
      GTY375411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the front shoulder belt anchor adjuster assembly.
