Removal [10/2014 - ]: Procedure
- PRECAUTION WARNING:
Be sure to read Precaution thoroughly before servicing (Refer to PRECAUTION [10/2014 - 10/2015] or PRECAUTION [10/2015 - ] ).
NOTE:After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work (Refer to PRECAUTION [10/2014 - ] ).
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [10/2014 - 10/2015] or INITIALIZATION [10/2015 - ] ).
- REMOVE REAR CONSOLE BOX ASSEMBLY
(Refer to REMOVAL [10/2014 - 10/2015] or REMOVAL [10/2015 - ] )
- REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 4 and PROCEDURE - Step 4
- REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 5 and PROCEDURE - Step 5
- DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 11
- REMOVE INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 12
- DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 13
- REMOVE LOWER NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 14
- REMOVE FRONT DOOR SCUFF PLATE RH
Refer to PROCEDURE - Step 14 and PROCEDURE - Step 14
- REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH
Refer to PROCEDURE - Step 15 and PROCEDURE - Step 15
- DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
Refer to PROCEDURE - Step 28
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 33
- REMOVE INSTRUMENT SIDE PANEL RH
Refer to PROCEDURE - Step 34
- REMOVE GLOVE COMPARTMENT PLATE
Refer to PROCEDURE - Step 35
- REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 9
- REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 37
- REMOVE FRONT CONSOLE BOX
Refer to PROCEDURE - Step 46
- REMOVE FLOOR CARPET BRACKET LH
Refer to PROCEDURE - Step 30 and PROCEDURE - Step 30
- REMOVE NO. 1 CONSOLE BOX MOUNTING BRACKET
- REMOVE NO. 1 CONSOLE BOX DUCT
Refer to PROCEDURE - Step 35 and PROCEDURE - Step 35
- REMOVE LOWER SHIFT LEVER ASSEMBLY
- Move the shift lever to N.
- Disconnect the end of the transmission control cable assembly from the lower shift lever assembly.
- Disengage the 2 claws and disconnect the transmission control cable assembly from the lower shift lever assembly.
- Disconnect the 2 clamps from the lower shift lever assembly.TEXT IN ILLUSTRATION
*a Shift Lock Control ECU Connector *b Transmission Control Switch Connector - Disconnect the shift lock control ECU connector.
- Disconnect the transmission control switch connector.

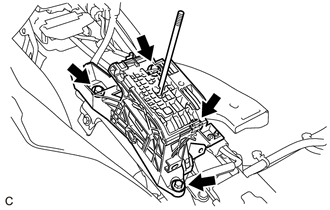

- Remove the 4 bolts and lower shift lever assembly from the shift lever support.
- REMOVE SHIFT LEVER SUPPORT
