Removal [10/2014 - 10/2015]: Procedure

  1. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/o EC Mirror)

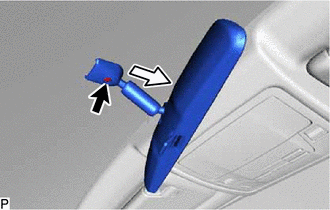

    1. Using a T20 "TORX" socket wrench, remove the screw.
      GTY378161Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    2. Slide the inner rear view mirror assembly in the direction indicated by the arrow shown in the illustration to remove it.
  2. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ EC Mirror)
    1. w/o Automatic High Beam System:
      1. Disengage the 2 claws and slide the inner rear view mirror stay holder cover as shown in the illustration.
        GTY378203Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

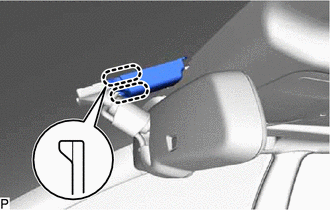

      2. Disengage the 2 claws to remove the inner rear view mirror stay holder cover.
        GTY378202Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    2. w/ Automatic High Beam System:
      1. Disengage the 2 claws and slide the inner rear view mirror stay holder cover as shown in the illustration.
        GTY366636Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      2. Disengage the 2 claws to remove the inner rear view mirror stay holder cover.
        GTY366637Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  3. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/ EC Mirror)
    1. w/o Automatic High Beam System:
      1. Disconnect the connector.
        GTY366635Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      2. Using a T20 "TORX" socket wrench, remove the screw.
      3. Slide the inner rear view mirror assembly in the direction indicated by the arrow shown in the illustration to remove it.
        GTY374724Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    2. w/ Automatic High Beam System:
      NOTE:
      • Do not touch the camera lens (built into the inner rear view mirror assembly) with a bare hand.
      • Do not allow anything to adhere to the camera lens (built into the inner rear view mirror assembly).
      • Do not apply strong impacts to the inner rear view mirror assembly.
      • Do not allow any liquid to get on the inner rear view mirror assembly.

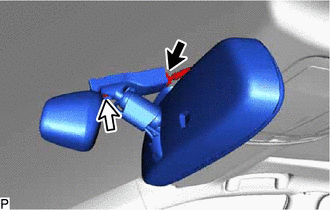

      1. Disconnect the connector.
        GTY366644Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      2. Using a T20 "TORX" socket wrench, remove the screw.
      3. Slide the inner rear view mirror assembly in the direction indicated by the arrow shown in the illustration to remove it.
        GTY374722Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
