Installation [02/2014 - ]: Procedure
- INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
- Engage the 5 guides to temporarily install the instrument panel safety pad sub-assembly as shown in the illustration.NOTE:
- Do not damage the instrument panel safety pad sub-assembly.
- Do not allow the wire harnesses to interfere with the surrounding parts.
- Install the instrument panel safety pad sub-assembly with the 6 bolts <C>, 2 bolts <A> and nut <E>.
Bolt <A>
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
- Install the 2 clips.
- Engage each clamp.
- Install the screw <D>.
- Connect each connector.
- Engage the 2 claws to connect the room temperature sensor.
- Engage the 5 guides to temporarily install the instrument panel safety pad sub-assembly as shown in the illustration.
- CONNECT NO. 2 INSTRUMENT PANEL WIRE
Refer to PROCEDURE - Step 5
- INSTALL CENTER LOWER INSTRUMENT PANEL FINISH PANEL
- INSTALL NO. 1 SWITCH HOLE BASE
- w/o Smart Key System:
- Engage the 4 claws to install the No. 1 switch hole base.
- w/ Smart Key System:
- Connect the connector.
- Engage the 4 claws to install the No. 1 switch hole base.
- w/o Smart Key System:
- INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
- INSTALL INSTRUMENT PANEL FINISH PLATE
- INSTALL INSTRUMENT CLUSTER FINISH PANEL END
- INSTALL INSTRUMENT CLUSTER FINISH PANEL ORNAMENT
- INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
- INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
- Engage the 2 guides and 4 claws to install the No. 2 instrument panel under cover sub-assembly.
- INSTALL INSTRUMENT PANEL FINISH PANEL END RH
- INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 3
- INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
- INSTALL FRONT PILLAR GARNISH RH
HINT:
Use the same procedure as for the LH side.
- INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
- INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- INSTALL FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
- INSTALL CONSOLE BOX INSERT
- INSTALL FRONT NO. 2 CONSOLE BOX INSERT
- INSTALL NO. 2 SWITCH HOLE BASE
- INSTALL CONSOLE BOX ASSEMBLY
Refer to INSTALLATION [02/2014 - ]
- INSTALL CLOCK ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET (for Radio and Display Type)
Refer to PROCEDURE - Step 5
- INSTALL NAVIGATION RECEIVER ASSEMBLY WITH BRACKET (for Navigation Receiver Type)
Refer to PROCEDURE - Step 5
- INSTALL NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY
- INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

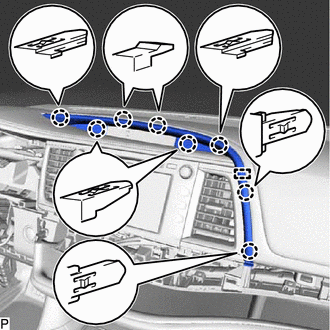

- INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL
- INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL WITH AIR CONDITIONING CONTROL ASSEMBLY
- INSTALL FRONT NO. 3 SPEAKER ASSEMBLY (for 12 Speakers)
Refer to PROCEDURE - Step 1
- INSTALL NO. 1 SPEAKER OPENING COVER ASSEMBLY (for 12 Speakers)

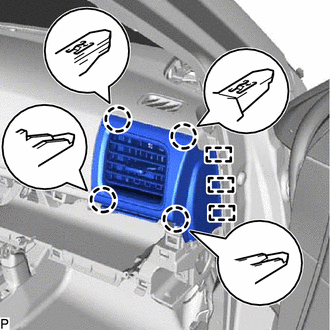

- INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

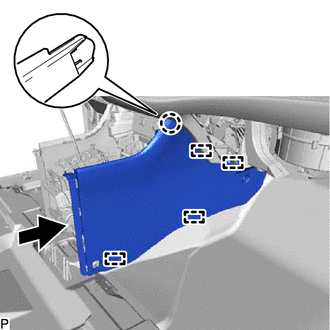

- Engage the 3 guides and 5 claws to install the No. 1 instrument panel register assembly.

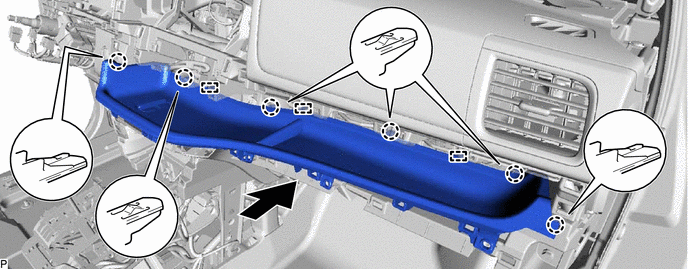

- INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
- Connect each connector.
- Engage the 10 claws and 4 clips.
- Install the lower instrument panel finish panel sub-assembly with the bolt <B>.
- CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
- Engage the 2 guides and claw to connect the hood lock control lever sub-assembly.
- INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
- Connect each connector.
- Engage the connector clamp.
- Engage the guide, claw and clip.
- Install the No. 1 instrument panel under cover sub-assembly with the 2 screws <D>.
- INSTALL INSTRUMENT PANEL FINISH PANEL END LH
- INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)
Refer to PROCEDURE - Step 3
- INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
- INSTALL FRONT PILLAR GARNISH LH
- INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
- INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
- INSTALL FRONT DOOR SCUFF PLATE LH
- INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
- INSTALL UPPER STEERING COLUMN COVER
Refer to PROCEDURE - Step 8
- INSTALL LOWER STEERING COLUMN COVER
Refer to PROCEDURE - Step 9
- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
Refer to PROCEDURE - Step 7 , or refer to PROCEDURE - Step 7
- INSTALL STEERING WHEEL ASSEMBLY
Refer to PROCEDURE - Step 8
- INSTALL HORN BUTTON ASSEMBLY
Refer to INSTALLATION [02/2014 - ]
- INSTALL COMBINATION METER ASSEMBLY
Refer to INSTALLATION [02/2014 - ]
- CHECK STEERING WHEEL CENTER POINT
- PERFORM DIAGNOSTIC SYSTEM CHECK
Refer to DTC CHECK / CLEAR [02/2014 - ]
- INSPECT SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM [02/2014 - ]
