Installation [02/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL NO. 2 INSTRUMENT PANEL WIRE

Connect the 2 airbag connectors of the No. 2 instrument panel wire to the instrument panel passenger airbag assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Airbag Connector
*b	Airbag Connector Lock

NOTE:

When connecting any airbag connector, take care not to damage the airbag wire harness.
Be sure to only connect the connectors to each corresponding color.

Push in the 2 airbag connector locks to install the 2 airbag connectors to the instrument panel passenger airbag assembly.

INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY
1. Engage the 3 hooks.
2. Push in the instrument panel passenger airbag assembly to engage the 3 hooks.
3. Install the instrument panel passenger airbag assembly with the 2 screws.
INSTALL NO. 4 HEATER TO REGISTER DUCT
Refer to PROCEDURE - Step 18
INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 1

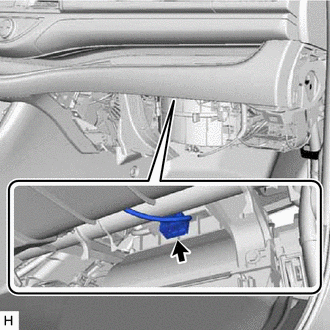

CONNECT NO. 2 INSTRUMENT PANEL WIRE

Check that the power switch is off.
Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

Connect the connector.

NOTE:

When connecting any airbag connector, take care not to damage the airbag wire harness.
