Removal [08/2015 - ]: Procedure

  1. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 18

  2. REMOVE COOL AIR INTAKE DUCT (for 4WD with Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 4 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 4 [08/2019 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 - ]

  3. REMOVE FRONT LOWER BUMPER COVER (w/o Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 7

  4. REMOVE FRONT LOWER BUMPER COVER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 8

  5. REMOVE AIR INTAKE DUCT LH (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 9

  6. REMOVE AIR INTAKE DUCT RH (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 10

  7. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  8. DRAIN ENGINE COOLANT

    See step  9

  9. REMOVE V-BANK COVER

    Refer to PROCEDURE - Step 10

  10. REMOVE NO. 1 RADIATOR HOSE

    See step  14

  11. REMOVE NO. 2 RADIATOR HOSE

    See step  15

  12. REMOVE RADIATOR RESERVOIR TANK

    See step  16

  13. DISCONNECT OIL COOLER TUBE

    See step  17

  14. REMOVE FAN SHROUD

    See step  18

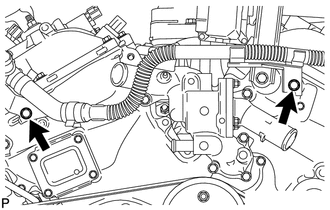

  15. DISCONNECT AIR TUBE ASSEMBLY
    1. Remove the 2 bolts and disconnect the air tube assembly.
      GTY292812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE WATER INLET HOUSING
    1. Disconnect the throttle body connector.

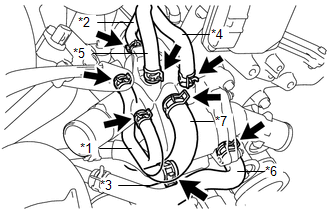

    2. Slide 5 hose clamps and disconnect the 5 water bypass hoses.
      GTY710391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 No. 1 Water By-pass Hose
      *2 No. 2 Water By-pass Hose
      *3 No. 3 Water By-pass Hose
      *4 No. 4 Water By-pass Hose
      *5 No. 5 Water By-pass Hose
      *6 Oil Cooler Hose
      *7 No. 2 Oil Cooler Hose
    3. Slide the hose clamp and disconnect the oil cooler hose.
    4. Slide the hose clamp and disconnect the No. 2 oil cooler hose.

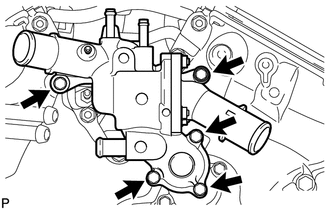

    5. Remove the 5 bolts and water inlet housing.
      GTY182761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the O-ring from the water outlet pipe.
    7. Remove the gasket from the water pump assembly.

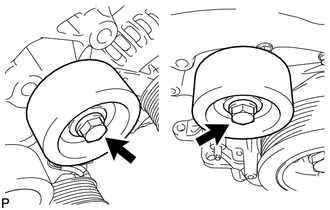

  17. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY
    GTY227827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. for Separate Type:

      Remove the 2 bolts, 2 idler pulley cover plates, 2 No. 2 idler pulley sub-assemblies and 2 No. 2 idler pulley cover plates.

    2. for Integrated Type:

      Remove the 2 bolts and 2 No. 2 idler pulley sub-assemblies.

  18. DISCONNECT VANE PUMP ASSEMBLY

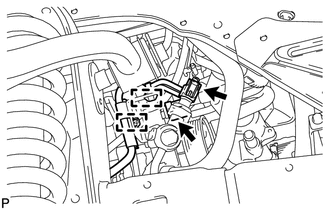

    1. GTY227726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the 2 connectors.

    2. Detach the 2 wire harness clamps.

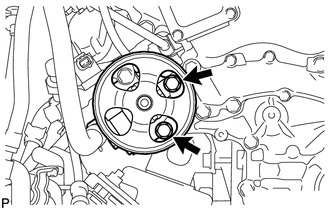

    3. GTY227725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 bolts and disconnect the vane pump assembly.

  19. REMOVE GENERATOR ASSEMBLY

    (Refer to REMOVAL [08/2015 - ] )

  20. REMOVE COOLER COMPRESSOR ASSEMBLY

    (Refer to REMOVAL [08/2015 - 08/2020] , or refer to REMOVAL [08/2020 - ] )

  21. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 10

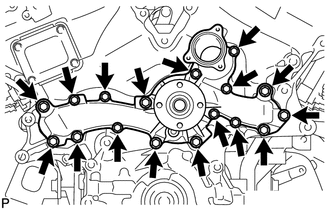

  22. REMOVE WATER PUMP ASSEMBLY
    1. Remove the 17 bolts, water pump assembly and gasket.
      GTY182764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
