Removal [08/2015 - ]: Procedure
- DISCHARGE FUEL SYSTEM PRESSURE
Refer to PROCEDURE - Step 1
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] , or refer to INITIALIZATION [08/2019 - 08/2022] , or refer to INITIALIZATION [08/2022 - ] ).
- REMOVE COOL AIR INTAKE DUCT (for 4WD with Intuitive Parking Assist System)
Refer to PROCEDURE - Step 4 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 4 [08/2019 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 - ]
- REMOVE FRONT LOWER BUMPER COVER (w/o Intuitive Parking Assist System)
Refer to PROCEDURE - Step 7
- REMOVE FRONT LOWER BUMPER COVER (w/ Intuitive Parking Assist System)
Refer to PROCEDURE - Step 8
- REMOVE AIR INTAKE DUCT LH (w/ Intuitive Parking Assist System)
Refer to PROCEDURE - Step 9
- REMOVE AIR INTAKE DUCT RH (w/ Intuitive Parking Assist System)
Refer to PROCEDURE - Step 10
- REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 11
- DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 9

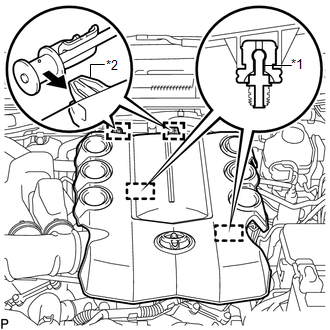

- REMOVE V-BANK COVER

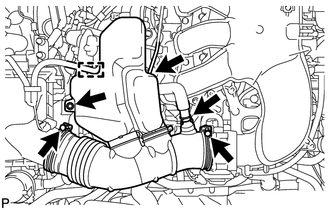

- REMOVE NO. 1 AIR CLEANER HOSE

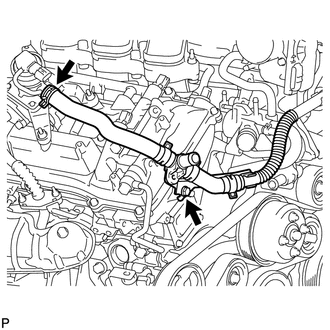

- DISCONNECT NO. 1 AIR INJECTION SYSTEM HOSE

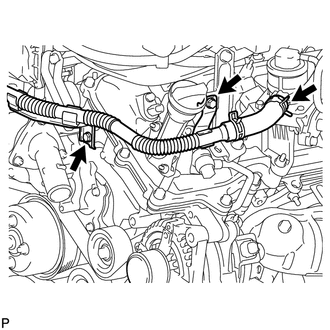

- REMOVE AIR TUBE ASSEMBLY
- DISCONNECT VACUUM HOSE (for 2WD)
- REMOVE INTAKE AIR SURGE TANK

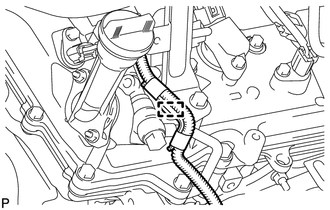

- Disconnect the throttle body connector.

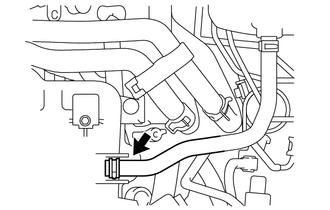

- Disconnect the No. 4 water by-pass hose.

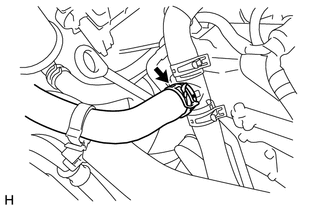

- Disconnect the No. 5 water by-pass hose.

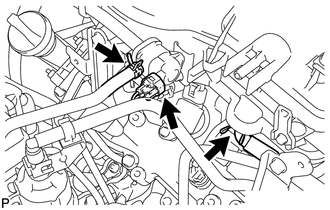

Disconnect the No. 1 fuel vapor feed hose.
- Disconnect the No. 1 vacuum switching valve connector.
- Disconnect the No. 1 ventilation hose.

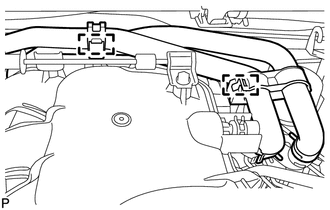

Detach the 2 heater water hose clamps.

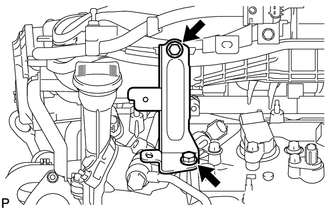

Remove the 2 bolts and throttle body bracket.

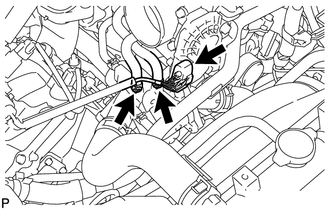

Using a clip remover, detach the wire harness clamp from the No. 1 surge tank stay.

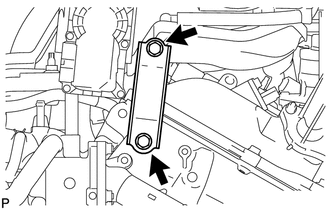

Remove the 2 bolts and No. 1 surge tank stay.

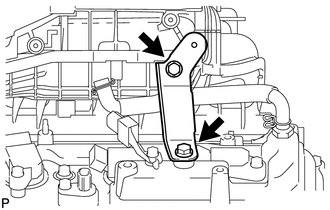

Remove the 2 bolts and No. 2 surge tank stay.

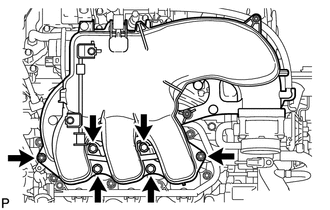

Remove the 2 nuts, 4 bolts and intake air surge tank.
- Remove the gasket.
- Disconnect the throttle body connector.
- DISCONNECT NO. 1 FUEL PIPE SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
- DISCONNECT NO. 2 FUEL PIPE SUB-ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY
Refer to PROCEDURE - Step 5

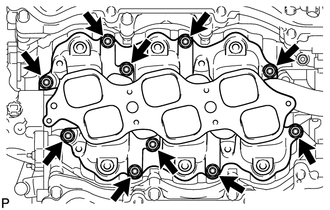

- REMOVE INTAKE MANIFOLD
