Removal [10/2014 - ]: Procedure

  1. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  2. SECURE STEERING WHEEL

    Refer to PROCEDURE - Step 3

  3. REMOVE INVERTER WITH CONVERTER ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  4. REMOVE INVERTER TRAY BRACKET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 38

  5. REMOVE FRONT WHEELS
  6. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH
  7. REMOVE ENGINE UNDER COVER LH
  8. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH
  9. REMOVE ENGINE UNDER COVER RH
  10. REMOVE FRONT FENDER APRON SEAL LH
  11. REMOVE FRONT FENDER APRON SEAL RH
  12. REMOVE FRONT WIPER ARM HEAD CAP

    Refer to PROCEDURE - Step 1

  13. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  14. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH

    Refer to PROCEDURE - Step 3

  15. REMOVE FRONT FENDER TO COWL SIDE SEAL LH

    Refer to PROCEDURE - Step 4

  16. REMOVE FRONT FENDER TO COWL SIDE SEAL RH

    Refer to PROCEDURE - Step 5

  17. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  18. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  19. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

    Refer to PROCEDURE - Step 5

  20. REMOVE FRONT AXLE SHAFT NUT LH

    Refer to PROCEDURE - Step 9

  21. REMOVE FRONT AXLE SHAFT NUT RH

    HINT:

    Perform the same procedure as for the LH side.

  22. SEPARATE FRONT STABILIZER LINK ASSEMBLY LH

    See step  3 See step  3

  23. SEPARATE FRONT STABILIZER LINK ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  24. SEPARATE TIE ROD ASSEMBLY LH

    Refer to PROCEDURE - Step 5

  25. SEPARATE TIE ROD ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  26. SEPARATE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 10

  27. SEPARATE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  28. SEPARATE FRONT DRIVE SHAFT ASSEMBLY LH

    Refer to PROCEDURE - Step 9

  29. SEPARATE FRONT DRIVE SHAFT ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  30. SEPARATE STEERING INTERMEDIATE SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 4

  31. SEPARATE FRONT ENGINE MOUNTING INSULATOR
    1. Remove the 3 nuts and separate the front engine mounting insulator from the front frame assembly.
      GTY249124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. SEPARATE ENGINE MOUNTING INSULATOR LH
    1. Remove the 2 hole plugs.
    2. Remove the 3 nuts and separate the engine mounting insulator LH from the front frame assembly.
      GTY594727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. SEPARATE ENGINE MOUNTING INSULATOR RH
    1. Remove the 2 hole plugs.
    2. Remove the 3 nuts and separate the engine mounting insulator RH from the front frame assembly.
      GTY251420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. DISCONNECT WIRE HARNESS

    Refer to PROCEDURE - Step 44

  35. REMOVE NO. 2 ENGINE MOUNTING STAY RH

    Refer to PROCEDURE - Step 52

  36. INSTALL ENGINE HANGERS

    Refer to PROCEDURE - Step 20

  37. INSTALL ENGINE SUPPORT BRIDGE

    Refer to PROCEDURE - Step 31

  38. INSTALL BELT

    Refer to PROCEDURE - Step 32

  39. REMOVE FRONT FRAME ASSEMBLY

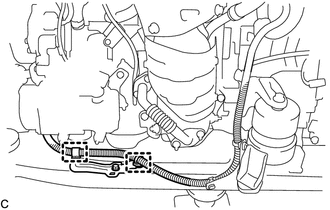

    1. Disconnect the 2 clamps.
      GTY480682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

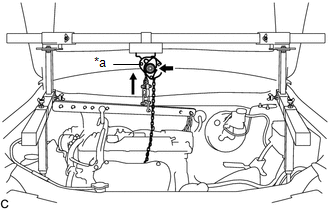

    2. Wind the chain with the chain block assembly to lift the engine with automatic transaxle assembly.
      GTY481128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Chain Block Assembly
      NOTE:
      • When suspending the engine with automatic transaxle assembly, do not tighten the chain block assembly more than 50 N*m (510 kgf*cm, 37 ft.*lbf).
      • Lift the engine with automatic transaxle assembly until the engine is slightly raised off the front frame assembly.
      • Do not lift the engine with automatic transaxle assembly excessively.

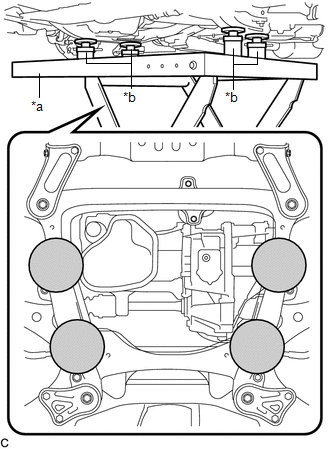

    3. Support the front frame assembly with an engine lifter using 4 attachments or equivalent tools as shown in the illustration.
      GTY586135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Engine Lifter
      *b Attachment
      Attachment Placement Location
      WARNING:
      • The front frame assembly is a heavy component. Make sure that it is supported securely.
      • Make sure to secure the front frame assembly to prevent it from dropping.
      NOTE:

      Use the attachments to keep the front frame assembly level.

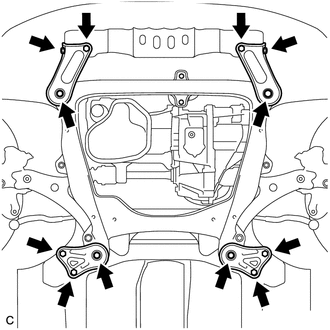

    4. Remove the 4 bolts, 2 nuts, and frame side rail plates RH and LH.
      GTY482116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 4 bolts, 2 nuts, and front suspension member rear braces RH and LH.
    6. Slowly lower the front frame assembly.
      NOTE:

      When lowering the front frame assembly, be careful not to damage the vehicle body or other components installed to the vehicle.

  40. REMOVE FRONT NO. 1 STABILIZER BRACKET LH

    See step  5 See step  5

  41. REMOVE FRONT NO. 1 STABILIZER BRACKET RH

    HINT:

    Perform the same procedure as for the LH side.

  42. REMOVE FRONT STABILIZER BAR WITH FRONT STABILIZER LINK ASSEMBLY
    1. Remove the front stabilizer bar with 2 front stabilizer link assemblies from the front frame assembly.
  43. REMOVE STEERING LINK ASSEMBLY

    Refer to PROCEDURE - Step 12

  44. REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH
    1. Remove the 3 bolts, nut and front lower No. 1 suspension arm sub-assembly from the front frame assembly.
      GTY204197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When removing the bolt, keep the nut from rotating.

    2. Remove the front lower arm bushing stopper from the front lower No. 1 suspension arm sub-assembly LH.
  45. REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  46. REMOVE FRONT SUSPENSION MEMBER DYNAMIC DAMPER
    1. Remove the 2 bolts and front suspension member dynamic damper from the front frame assembly.
      GTY295100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE FRONT SUSPENSION MEMBER BODY MOUNTING FRONT STOPPER
    1. Remove the 2 front suspension member body mounting front stoppers from the front frame assembly.
  48. REMOVE FRONT SUSPENSION MEMBER BODY MOUNTING REAR STOPPER
    1. Remove the 2 front suspension member body mounting rear stoppers from the front frame assembly.
  49. REMOVE FRONT SUSPENSION MEMBER BODY MOUNTING FRONT CUSHION
    1. Install SST as shown in the illustration.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01040
        3. 09830-01050
      • SST: 09950-40011
        1. 09951-04020
        2. 09952-04010
        3. 09954-04010
        4. 09955-04011
        5. 09958-04011
      GTY366734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Front Suspension Member Body Mounting Front Cushion

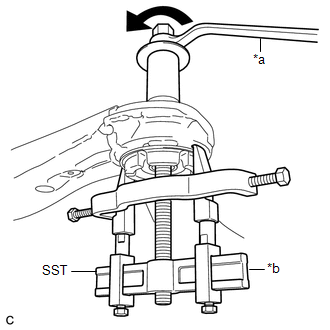

    2. Using SST, remove the front suspension member body mounting front cushion from the front frame assembly.
      GTY589267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Turn
      *b Hold
      NOTE:
      • Make sure that the claws of SST are securely hung onto the mounting cushion.
      • Tighten SST slowly and evenly.
      • Be careful as the mounting cushion may fly out.
      • The mounting cushion cannot be reused.
  50. REMOVE FRONT SUSPENSION MEMBER BODY MOUNTING REAR CUSHION LH
    1. Install SST as shown in the illustration.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01040
        3. 09830-01050
      • SST: 09950-40011
        1. 09951-04020
        2. 09952-04010
        3. 09954-04010
        4. 09955-04011
        5. 09958-04011
      GTY361491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Front Suspension Member Body Mounting Rear Cushion LH

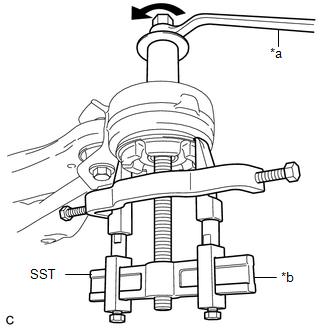

    2. Using SST, remove the front suspension member body mounting rear cushion LH from the front frame assembly.
      GTY602034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Turn
      *b Hold
      NOTE:
      • Make sure that the claws of SST are securely hung onto the mounting cushion.
      • Tighten SST slowly and evenly.
      • Be careful as the mounting cushion may fly out.
      • The mounting cushion cannot be reused.
  51. REMOVE FRONT SUSPENSION MEMBER BODY MOUNTING REAR CUSHION RH

    HINT:

    Perform the same procedure as for the LH side.

  52. REMOVE HOLE PLUG

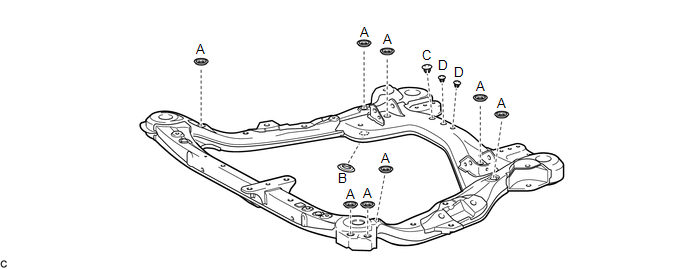

    1. Remove 12 hole plugs from the front frame assembly.
      GTY597473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      There are 4 different shapes of hole plug.
