Removal [10/2014 - ]: Procedure

  1. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  2. SECURE STEERING WHEEL

    Refer to PROCEDURE - Step 3

  3. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH
  4. REMOVE ENGINE UNDER COVER RH
  5. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH
  6. REMOVE ENGINE UNDER COVER LH
  7. REMOVE FRONT FENDER APRON SEAL LH
  8. REMOVE FRONT FENDER APRON SEAL RH
  9. DRAIN HYBRID TRANSAXLE FLUID

    See step  1

  10. DRAIN COOLANT (for Inverter)

    Refer to PROCEDURE - Step 1

  11. REMOVE FRONT WIPER ARM HEAD CAP

    Refer to PROCEDURE - Step 1

  12. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  13. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH

    Refer to PROCEDURE - Step 3

  14. REMOVE FRONT FENDER TO COWL SIDE SEAL LH

    Refer to PROCEDURE - Step 4

  15. REMOVE FRONT FENDER TO COWL SIDE SEAL RH

    Refer to PROCEDURE - Step 5

  16. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  17. REMOVE FRONT DRIVE SHAFT ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  18. REMOVE INVERTER WITH CONVERTER ASSEMBLY

    (Refer to REMOVAL [10/2014 - ] )

  19. REMOVE INVERTER TRAY BRACKET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 38

  20. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

    Refer to PROCEDURE - Step 5

  21. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  22. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

    Refer to PROCEDURE - Step 45

  23. DISCONNECT WIRE HARNESS
    1. Remove the 3 bolts and disconnect the 4 connectors, 3 clamps and wire harness from the hybrid vehicle transaxle assembly.
      GTY316061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and disconnect the 3 clamps and motor cable from the hybrid vehicle transaxle assembly.
      GTY316864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. DISCONNECT NO. 5 INVERTER COOLING HOSE

    Refer to PROCEDURE - Step 48

  25. SEPARATE STEERING INTERMEDIATE SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 4

  26. SEPARATE FRONT ENGINE MOUNTING INSULATOR

    Refer to PROCEDURE - Step 31

  27. SEPARATE ENGINE MOUNTING INSULATOR LH

    Refer to PROCEDURE - Step 32

  28. SEPARATE ENGINE MOUNTING INSULATOR RH

    Refer to PROCEDURE - Step 33

  29. REMOVE NO. 2 ENGINE MOUNTING STAY RH

    Refer to PROCEDURE - Step 52

  30. INSTALL ENGINE HANGERS

    Refer to PROCEDURE - Step 20

  31. INSTALL ENGINE SUPPORT BRIDGE

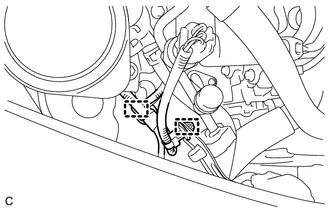

    1. Disengage the 2 clamps.
      GTY473641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 hood support assemblies (Refer to REMOVAL [10/2014 - ] ).

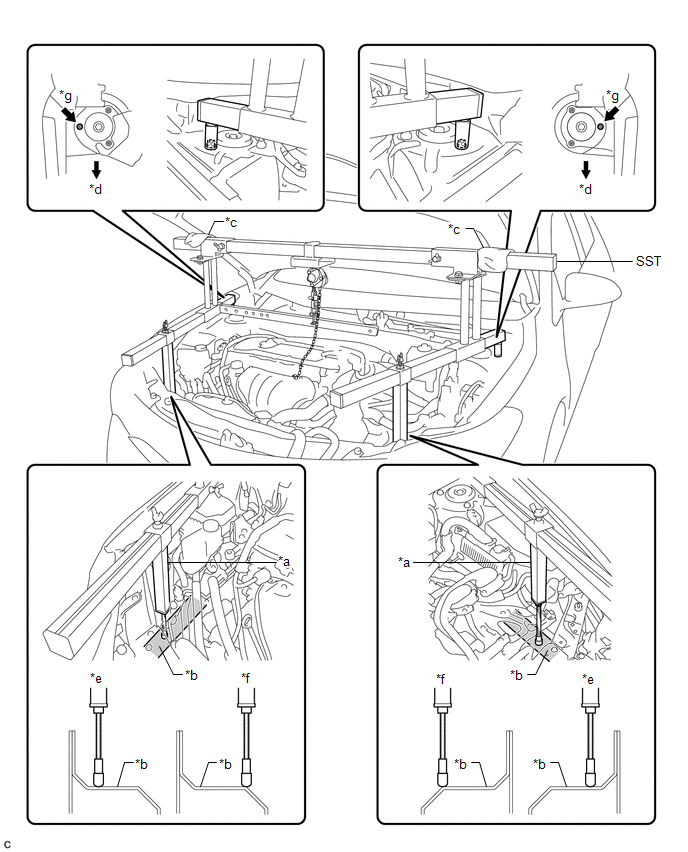

    3. Install SST to the vehicle body as shown in the illustration.
      GTY576326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Support Shaft *b Side Member
      *c Cloth *d Front Side
      *e Correct *f Incorrect
      *g Front Suspension Nut - -
      • SST: 09940-10020
      WARNING:
      • Make sure the fuse shackle is on the chain block side and the shackle (A) is on the division bar side as shown in the illustration so that the fuse bolt is visible and can be checked for deformation easily.
        GTY477720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *a Fuse Shackle
        *b Shackle (A)
        *c Correct
        *d Incorrect

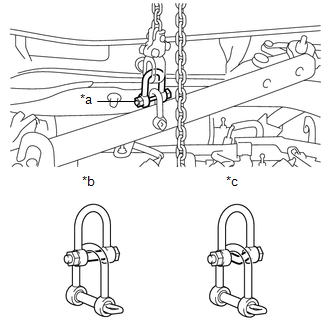

      • Make sure the fuse bolt is not deformed.
        GTY562446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *a Fuse Bolt
        *b Correct
        *c Incorrect
      NOTE:
      • Prevent SST from contacting the vehicle body or windshield.
      • To prevent damage to the engine hood, place pieces of cloth between the engine hood and SST.
      • Lightly shake SST by hand to make sure it is securely installed while performing work.
      • Set the support shafts on level surfaces.
    4. Turn the threaded portion of each support shaft to adjust its height and make the sub beams parallel to the ground.
      GTY472973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Support Shaft
      *b Sub Beam
      *c Side Member
      *d Threaded Portion

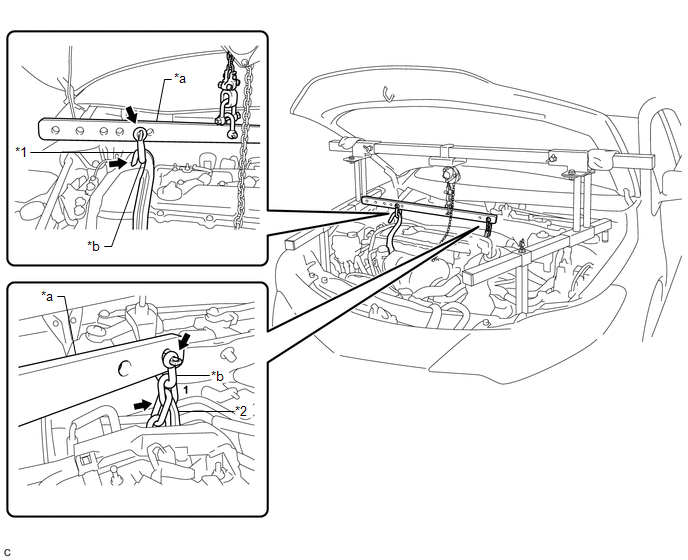

    5. Connect the chain to the division bar with the shackle at the position shown in the illustration.
      GTY564054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 No. 1 Engine Hanger *2 No. 2 Engine Hanger
      *a Division Bar *b Shackle
    6. Connect the division bar and No. 1 engine hanger with the shackle.
    7. Connect the 1st link of the chain to the No. 2 engine hanger.

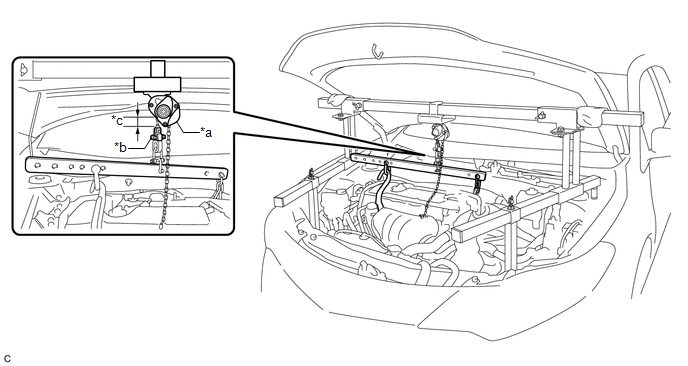

    8. Make sure the distance between the chain block assembly and suspension ring is 20 mm (0.787 in.) or more.
      GTY557670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Chain Block Assembly *b Suspension Ring
      *c 20 mm (0.787 in.) or more - -

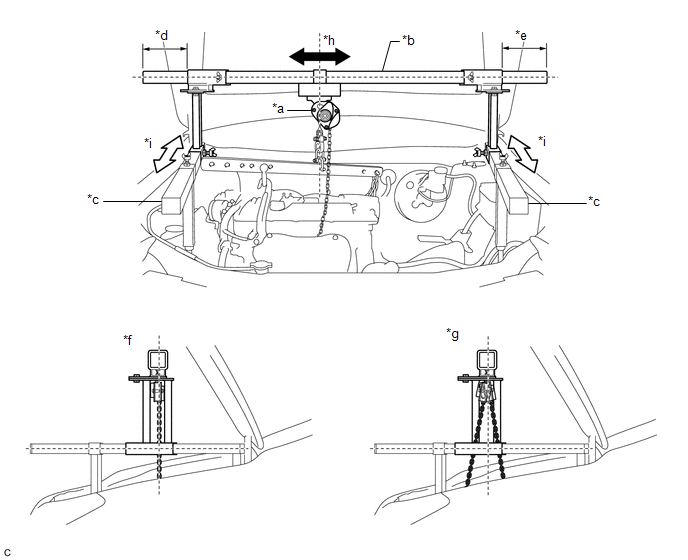

    9. Adjust the position of the chain block assembly so that the chain is perpendicular to the main beam and sub beams as shown in the illustration.
      GTY580605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Chain Block Assembly *b Main Beam
      *c Sub Beam *d Dimension (A)
      *e Dimension (B) *f Correct
      *g Incorrect *h Right to Left Adjustment
      *i Front to Rear Adjustment - -
      WARNING:

      To prevent the engine assembly with hybrid vehicle transaxle assembly from falling, make sure that the dimension (A) and dimension (B) are equal.

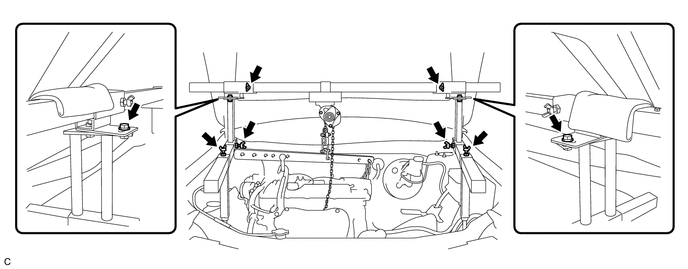

    10. Tighten the 6 wing bolts and 2 bolts.
      GTY476505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for Bolt

      Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

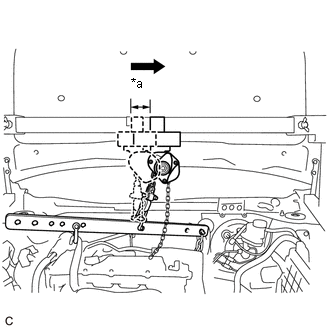

    11. Move the chain block assembly approximately 50 mm (1.97 in.) as shown in the illustration.
      GTY472642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Approximately 50 mm (1.97 in.)

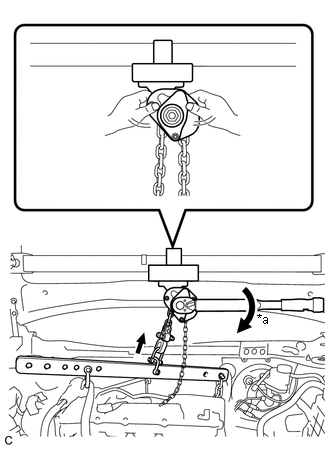

    12. Tighten the chain block assembly until it cannot be moved any further by hand.
      GTY473855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Turn
      WARNING:

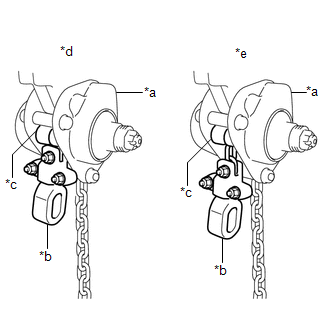

      If the suspension ring contacts the roller of the chain block assembly, the chain block assembly may be damaged. Do not tighten the chain block assembly excessively.

      GTY558275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Chain Block Assembly
      *b Suspension Ring
      *c Roller
      *d Incorrect
      *e Correct
      NOTE:
      • When suspending the engine assembly with hybrid vehicle transaxle assembly, do not tighten the chain block assembly more than 50 N*m (510 kgf*cm, 37 ft.*lbf).
      • Do not shake the engine assembly with hybrid vehicle transaxle assembly excessively while it is being suspended.
  32. INSTALL BELT

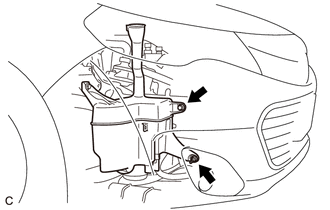

    1. Remove the bolt and nut.
      GTY473574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

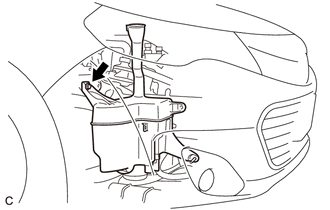

    2. Loosen the bolt and disconnect the windshield washer jar assembly from the vehicle body.
      GTY481254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not remove the bolt.

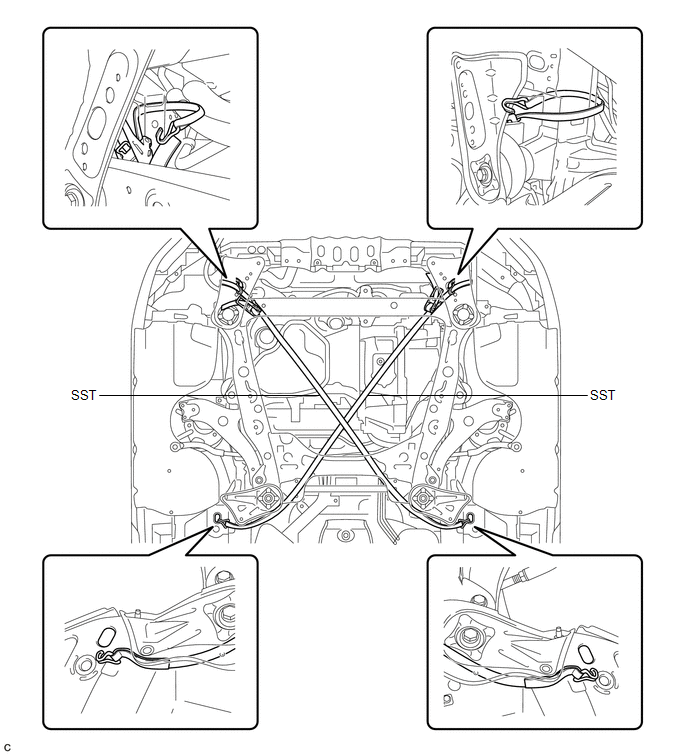

    3. Install SST to the vehicle body as shown in the illustration.
      GTY559743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09727-00110

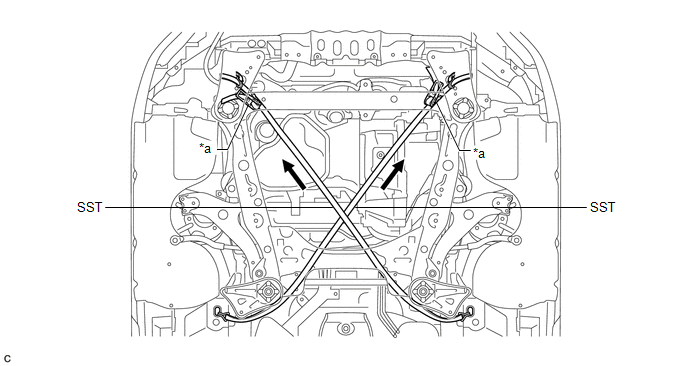

    4. Using the ratchet buckle, tighten the belt until there is no slack.
      GTY566526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Ratchet Buckle - -
  33. REMOVE FRONT FRAME ASSEMBLY

    Refer to PROCEDURE - Step 39

  34. REMOVE ENGINE MOUNTING INSULATOR RH

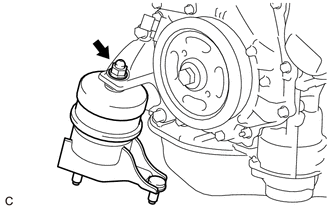

    1. Remove the nut and engine mounting insulator RH from the engine mounting bracket RH.
      GTY480784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL SUPPORT BAR

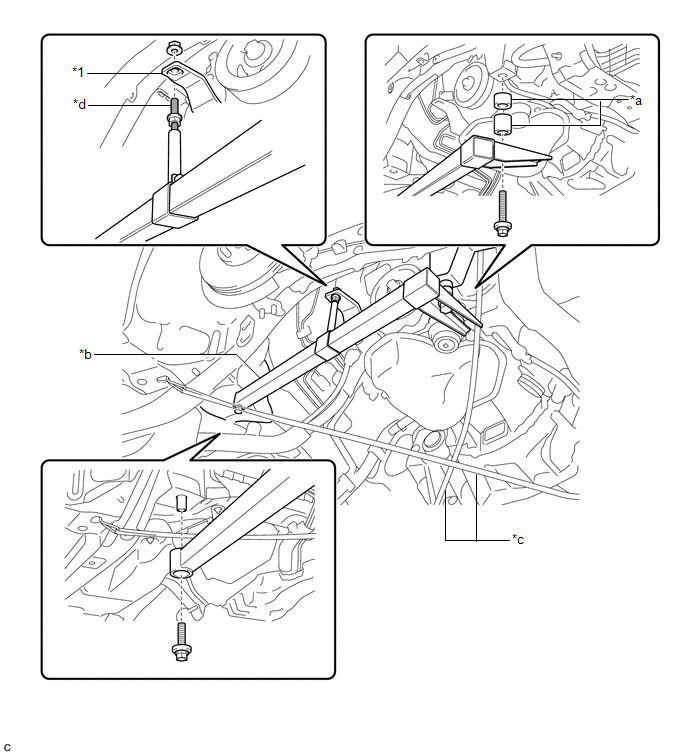

    1. Install the SST (support bar) to the engine mounting bracket RH with the stud bolt and nut.
      GTY571575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Engine Mounting Bracket RH - -
      *a Spacer *b SST (Support Bar)
      *c SST (Belt) *d Stud Bolt
      • SST: 09944-10020
        1. 09944-01010
        2. 09944-01020
        3. 09944-01030
        4. 09944-01040
        5. 09944-01050
        6. 09944-01060
      WARNING:

      To prevent the engine assembly with hybrid vehicle transaxle assembly from falling while servicing, do not remove SST (belt).

      HINT:

      Tighten the nut by hand.

    2. Install SST (support bar) to the vehicle body with the 2 bolts as shown in the illustration.

      Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

  36. REMOVE FRONT ENGINE MOUNTING INSULATOR

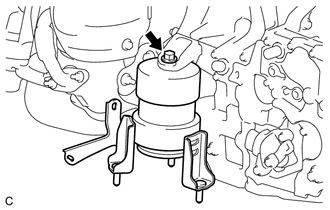

    1. Remove the bolt and front engine mounting insulator from the front engine mounting bracket.
      GTY482743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE ENGINE MOUNTING INSULATOR LH
    1. Remove the nut and engine mounting insulator LH from the hybrid vehicle transaxle assembly.
      GTY480785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. SUPPORT ENGINE ASSEMBLY
    1. Set an engine lifter.
      GTY474691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WARNING:

      To prevent the engine assembly with hybrid vehicle transaxle assembly from falling while servicing, do not remove SST.

      NOTE:

      Make sure that there is a clearance between the oil pan sub-assembly and engine lifter.

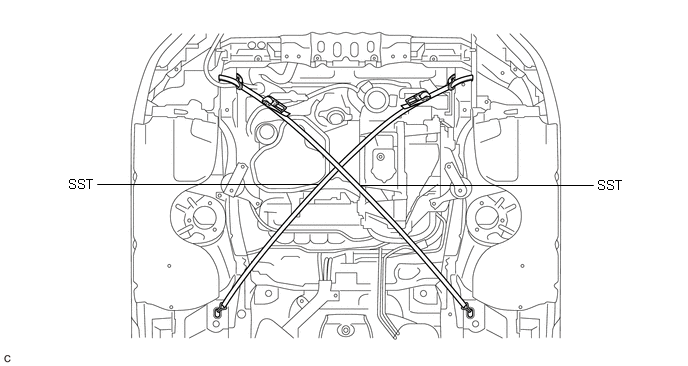

  39. REMOVE BELT
    1. Remove SST from the vehicle body.
      GTY548857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE HYBRID VEHICLE TRANSAXLE ASSEMBLY
    1. Using a transmission jack attachment, set the hybrid vehicle transaxle assembly on a transmission jack.
      NOTE:
      • Secure the hybrid vehicle transaxle assembly to the transmission jack using a suitable adapter, such as a rope or attachment.
      • To prevent the motor water jacket cover assembly from deforming, do not place any attachments under the motor water jacket cover assembly of the hybrid vehicle transaxle assembly.
    2. Remove the 9 bolts and hybrid vehicle transaxle assembly from the engine assembly.
      GTY316058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • To avoid damage to the 2 knock pins, do not pry between the hybrid vehicle transaxle assembly and engine assembly.
      • To prevent the splines of the transmission input damper assembly from becoming misaligned, do not allow the hybrid vehicle transaxle assembly to hit the transmission input damper assembly during hybrid vehicle transaxle assembly removal and installation.
      • Secure the hybrid vehicle transaxle assembly to the transmission jack using a belt, etc. to prevent it from falling.
  41. REMOVE FRONT ENGINE MOUNTING BRACKET
    1. Remove the 3 bolts and front engine mounting bracket from the hybrid vehicle transaxle assembly.
      GTY316059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE NO. 1 TRANSMISSION CONTROL CABLE BRACKET
    1. Remove the 2 bolts and No. 1 transmission control cable bracket from the hybrid vehicle transaxle assembly.
      GTY316064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE NO. 2 TRANSMISSION CONTROL CABLE BRACKET
    1. Remove the bolt and No. 2 transmission control cable bracket from the hybrid vehicle transaxle assembly.
      GTY316065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE NO. 3 TRANSMISSION CONTROL CABLE BRACKET
    1. Remove the bolt and No. 3 transmission control cable bracket from the hybrid vehicle transaxle assembly.
      GTY316062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE AUTOMATIC TRANSMISSION CASE COVER
    1. Disengage the 2 guides and remove the automatic transmission case cover from the No. 3 automatic transmission case cover.
      GTY316063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE NO. 3 AUTOMATIC TRANSMISSION CASE COVER
    1. Remove the 2 bolts, clip and No. 3 automatic transmission case cover from the hybrid vehicle transaxle assembly.
      GTY316138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE HYBRID TRANSAXLE MASS DAMPER
    1. Remove the hybrid transaxle mass damper and gasket from the hybrid vehicle transaxle assembly.
      GTY320735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE WIRE HARNESS CLAMP BRACKET
    1. Remove the 3 bolts and 2 wire harness clamp brackets from the hybrid vehicle transaxle assembly.
      GTY316139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE NO. 1 INVERTER COOLING HOSE ASSEMBLY
    1. Remove the No. 1 inverter cooling hose assembly from the hybrid vehicle transaxle assembly.
      GTY322182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
