Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH
  2. REMOVE ENGINE UNDER COVER RH
  3. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH
  4. REMOVE ENGINE UNDER COVER LH
  5. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
    1. Disconnect the heated oxygen sensor connector.
      GTY539692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

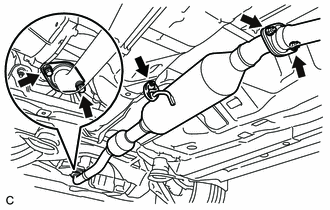

    2. Remove the 2 bolts, 2 compression springs and 2 nuts.
      GTY548699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the front exhaust pipe assembly (TWC: Rear Catalyst) from the exhaust pipe support.
    4. Remove the 2 gaskets from the exhaust manifold converter sub-assembly (TWC: Front Catalyst) and front exhaust pipe assembly (TWC: Rear Catalyst).
  6. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    1. Remove the 4 bolts and No. 1 exhaust manifold heat insulator from the exhaust manifold converter sub-assembly (TWC: Front Catalyst).
      GTY319658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE AIR FUEL RATIO SENSOR

    Refer to PROCEDURE - Step 2

  8. REMOVE NO. 1 MANIFOLD CONVERTER INSULATOR

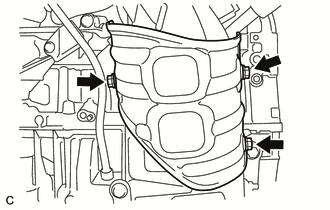

    1. Remove the 3 bolts and No. 1 manifold converter insulator from the exhaust manifold converter sub-assembly (TWC: Front Catalyst).
      GTY317762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 2 EGR PIPE

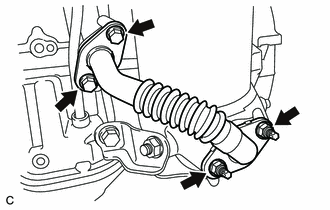

    1. Remove the 2 bolts, 2 nuts and No. 2 EGR pipe.
      GTY317763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 No. 2 EGR pipe gaskets from the No. 2 EGR pipe.
  10. REMOVE NO. 2 MANIFOLD STAY

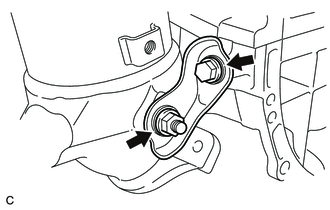

    1. Remove the bolt, nut and No. 2 manifold stay.
      GTY322546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE MANIFOLD STAY
    1. Remove the bolt, nut and manifold stay.
      GTY317761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY (TWC: Front Catalyst)
    1. Remove the 5 nuts and exhaust manifold converter sub-assembly (TWC: Front Catalyst).
      GTY194978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the exhaust manifold gasket from the cylinder head sub-assembly.
      GTY169414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
    1. Remove the 2 bolts and No. 2 exhaust manifold heat insulator from the exhaust manifold converter sub-assembly (TWC: Front Catalyst).
      GTY322522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
