Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT WIPER ARM HEAD CAP

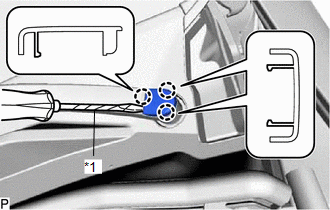

    1. Using a screwdriver, disengage the 3 claws to remove the front wiper arm head cap.
      GTY557080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape

      HINT:

      • Tape the screwdriver tip before use.
      • Use the same procedure for the RH side and LH side.
  2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH

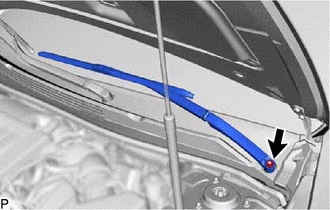

    1. Remove the nut and front wiper arm and blade assembly LH.
      GTY370034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH

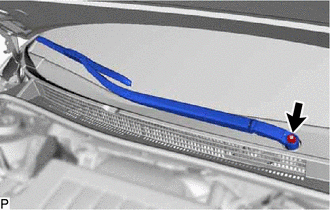

    1. Remove the nut and front wiper arm and blade assembly RH.
      GTY370047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT FENDER TO COWL SIDE SEAL LH

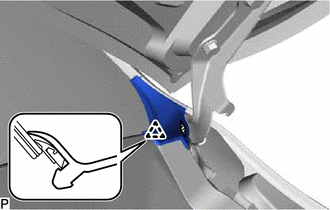

    1. Separate the double-sided tape.
      GTY370048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clip.

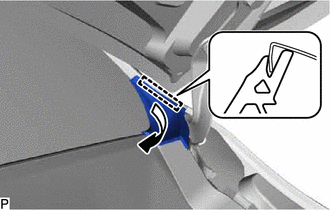

    3. Disengage the guide to remove the front fender to cowl side seal LH as shown in the illustration.
      GTY370054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT FENDER TO COWL SIDE SEAL RH

    HINT:

    Use the same procedure as for the LH side.

  6. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

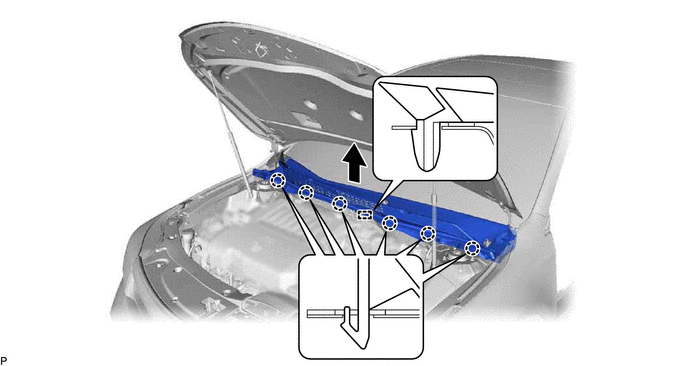

    1. Disengage the 6 claws and guide as shown in the illustration.
      GTY382608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

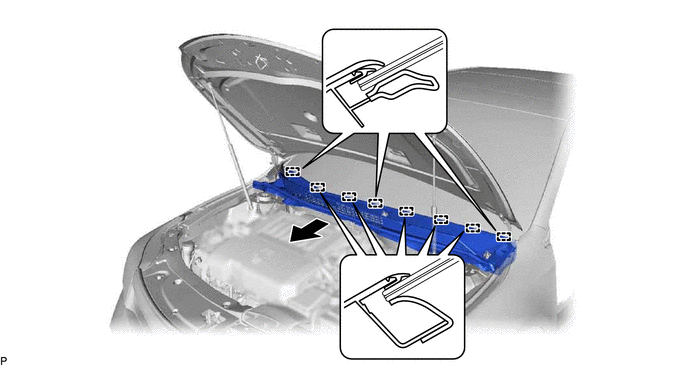

    2. Disengage the 8 guides and pull out the cowl top ventilator louver sub-assembly as shown in the illustration.
      GTY370053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

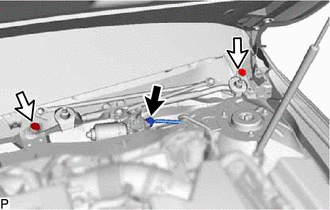

    1. Disconnect the connector.
      GTY370051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts.

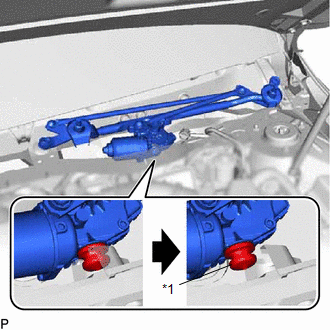

    3. Disengage the motor grommet to remove the windshield wiper motor and link assembly as shown in the illustration.
      GTY377220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Motor Grommet
      NOTE:

      Be careful not to damage the windshield when removing the windshield wiper motor and link assembly.

  8. REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY

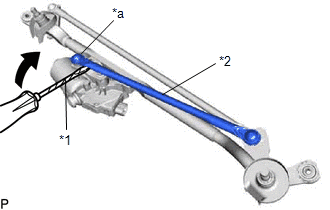

    1. Using a screwdriver, separate the windshield wiper link No. 1 rod from the pivot of the windshield wiper motor assembly as shown in the illustration.
      GTY572424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
      *2 Windshield Wiper Link No. 1 Rod
      *a Pivot of the windshield wiper motor assembly

      HINT:

      Tape the screwdriver tip before use.

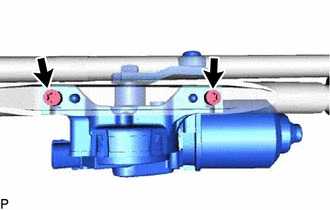

    2. Using a T30 "TORX" socket wrench, remove the 2 bolts and windshield wiper motor assembly from the windshield wiper link assembly.
      GTY382596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
