Disassembly [10/2014 - ]: Procedure
- REMOVE ENGINE COVER JOINT
- REMOVE SPARK PLUG
Refer to PROCEDURE - Step 3
- REMOVE KNOCK CONTROL SENSOR
Refer to PROCEDURE - Step 2
- REMOVE ENGINE COOLANT TEMPERATURE SENSOR
Refer to PROCEDURE - Step 5
- REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
Refer to PROCEDURE - Step 2
- REMOVE CAMSHAFT POSITION SENSOR
Refer to PROCEDURE - Step 2
- REMOVE OIL FILLER CAP SUB-ASSEMBLY
- Remove the oil filler cap sub-assembly from the cylinder head cover sub-assembly.
- REMOVE OIL FILLER CAP GASKET
- Remove the oil filler cap gasket from the oil filler cap sub-assembly.
- REMOVE CRANKSHAFT POSITION SENSOR
Refer to PROCEDURE - Step 1
- REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
Refer to PROCEDURE - Step 2
- REMOVE VENTILATION CASE SUB-ASSEMBLY
- Remove the 8 bolts and 2 nuts.
- Remove the ventilation case sub-assembly by prying between the ventilation case sub-assembly and cylinder block sub-assembly with a screwdriver.NOTE:
Be careful not to damage the contact surfaces of the cylinder block sub-assembly and ventilation case sub-assembly.
HINT:
Tape the screwdriver tip before use.
- Remove the 8 bolts and 2 nuts.
- REMOVE SEPARATOR CASE
- REMOVE CRANKSHAFT PULLEY

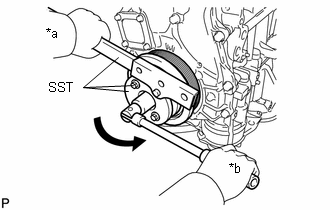

- Using SST, hold the crankshaft pulley and loosen the pulley bolt. Further loosen the pulley bolt until 2 or 3 threads are screwed into the crankshaft.TEXT IN ILLUSTRATION
*a Hold *b Turn - SST: 09213-54015
- SST: 09330-00021
- SST: 91551-80650

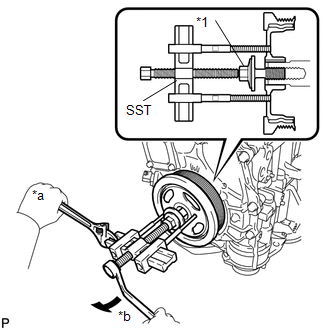

- Using SST and the pulley bolt, remove the crankshaft pulley.TEXT IN ILLUSTRATION
*1 Pulley Bolt *a Hold *b Turn - SST: 09950-50013
- 09951-05010
- 09952-05010
- 09953-05020
- 09954-05011
HINT:
Apply a lubricant to the threads and end of SST.
- SST: 09950-50013
- Using SST, hold the crankshaft pulley and loosen the pulley bolt. Further loosen the pulley bolt until 2 or 3 threads are screwed into the crankshaft.
- REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY

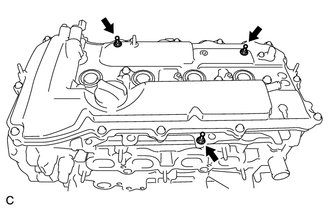

- REMOVE STUD BOLT NOTE:
If a stud bolt is deformed or its threads are damaged, replace it.
- REMOVE SPARK PLUG TUBE GASKET
- REMOVE ENGINE MOUNTING BRACKET RH
Refer to PROCEDURE - Step 6
- REMOVE TIMING CHAIN COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
- REMOVE OIL PUMP RELIEF VALVE PLUG
- REMOVE TIMING CHAIN COVER PLATE
- REMOVE TIMING CHAIN COVER OIL SEAL
Refer to PROCEDURE - Step 8
- SET NO. 1 CYLINDER TO TDC/COMPRESSION
See step 14
- REMOVE TIMING CHAIN GUIDE
See step 15
- REMOVE NO. 1 CHAIN TENSIONER ASSEMBLY
See step 16
- REMOVE CHAIN TENSIONER SLIPPER
See step 17
- REMOVE CHAIN SUB-ASSEMBLY
- Remove the chain sub-assembly.
- REMOVE NO. 1 CHAIN VIBRATION DAMPER
See step 19
- REMOVE CRANKSHAFT TIMING SPROCKET
- REMOVE CAMSHAFT TIMING GEAR ASSEMBLY
See step 20
- REMOVE CAMSHAFT TIMING SPROCKET
See step 21
- REMOVE CAMSHAFT HOUSING SUB-ASSEMBLY
See step 22
- REMOVE CAMSHAFT BEARING CAP
See step 23
- REMOVE OIL CONTROL VALVE FILTER
- REMOVE CAMSHAFT
See step 26
- REMOVE NO. 1 CAMSHAFT BEARING
- REMOVE NO. 2 CAMSHAFT BEARING

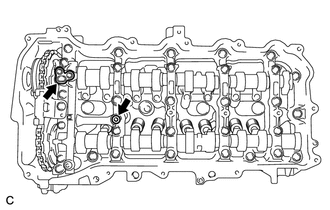

- REMOVE STUD BOLT NOTE:
If a stud bolt is deformed or its threads are damaged, replace it.
- REMOVE CAMSHAFT BEARING CAP SETTING RING PIN NOTE:
It is not necessary to remove the ring pin unless it is being replaced.
- REMOVE STRAIGHT PIN NOTE:
It is not necessary to remove the straight pin unless it is being replaced.
- REMOVE NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
See step 28
- REMOVE VALVE LASH ADJUSTER ASSEMBLY
See step 29
- REMOVE VALVE STEM CAP
See step 30
- REMOVE CYLINDER HEAD SUB-ASSEMBLY
See step 31
- REMOVE CYLINDER HEAD GASKET
See step 32
- REMOVE CYLINDER BLOCK WATER JACKET SPACER
- REMOVE OIL FILTER CAP ASSEMBLY
Refer to PROCEDURE - Step 2
- REMOVE OIL PAN DRAIN PLUG
- Remove the oil pan drain plug and gasket from the oil pan sub-assembly.
- REMOVE OIL PAN SUB-ASSEMBLY

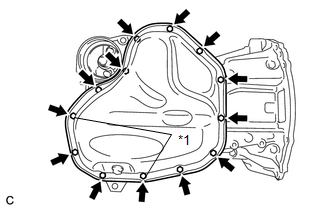

- Remove the 11 bolts and 2 nuts.TEXT IN ILLUSTRATION
*1 Nut - Insert the blade of an oil pan seal cutter between the oil pan sub-assembly and stiffening crankcase assembly, cut off the applied sealer and remove the oil pan sub-assembly.NOTE:
- Be careful not to damage the stiffening crankcase assembly contact surface of the oil pan sub-assembly.
- Be careful not to damage the stiffening crankcase flange.
- Remove the 11 bolts and 2 nuts.
- REMOVE OIL STRAINER SUB-ASSEMBLY
- REMOVE NO. 1 OIL PAN BAFFLE PLATE
- INSPECT CRANKSHAFT BACKLASH
- REMOVE ENGINE BALANCER ASSEMBLY
- INSPECT NO. 1 BALANCE SHAFT THRUST CLEARANCE
See step 14
- INSPECT NO. 2 BALANCE SHAFT THRUST CLEARANCE
See step 15
- REMOVE STIFFENING CRANKCASE ASSEMBLY
- Remove the 7 bolts.
- Using a screwdriver, remove the stiffening crankcase assembly by prying between the stiffening crankcase assembly and cylinder block sub-assembly at the places shown in the illustration.TEXT IN ILLUSTRATION
*a LH Side *b RH Side NOTE:Be careful not to damage the contact surfaces of the cylinder block sub-assembly and stiffening crankcase assembly.
HINT:
Tape the screwdriver tip before use.
- Remove the 7 bolts.
- REMOVE STUD BOLT NOTE:
If a stud bolt is deformed or its threads are damaged, replace it.
- REMOVE RING PIN NOTE:
It is not necessary to remove the ring pin unless it is being replaced.
- REMOVE REAR ENGINE OIL SEAL
