Removal [10/2014 - ]: Procedure

  1. DRAIN COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  3. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 and PROCEDURE - Step 1

  4. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 23

  5. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

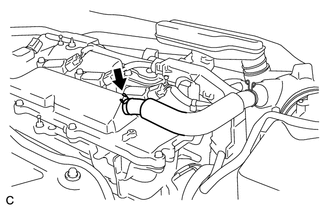

    1. Slide the clip and disconnect the ventilation hose from the cylinder head cover sub-assembly.
      GTY316241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

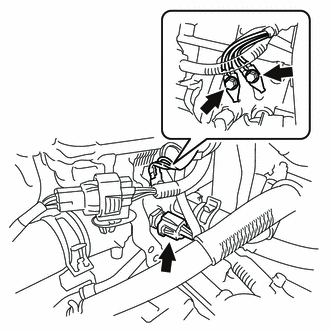

    2. Disconnect the engine coolant temperature sensor connector.
      GTY319230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and disconnect the wire harness.

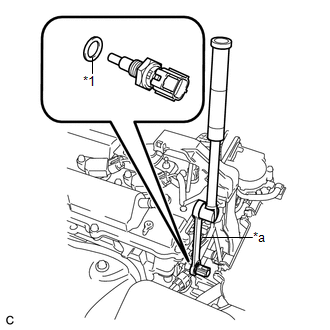

    4. Using a 19 mm ball joint lock nut wrench, remove the engine coolant temperature sensor.
      GTY374909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Gasket
      *a 19 mm Ball Joint Lock Nut Wrench
    5. Remove the gasket from the engine coolant temperature sensor.
