Removal [10/2014 - ]: Procedure

(Refer to REMOVAL [10/2014 - ] )

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 15

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 5

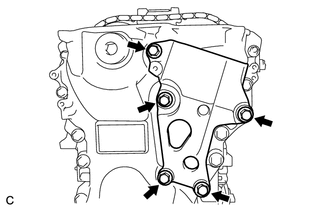

1. Remove the 5 bolts and engine mounting bracket RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

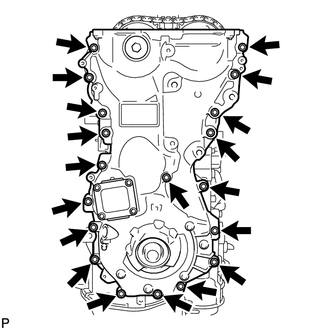

1. Remove the 17 bolts and 2 nuts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

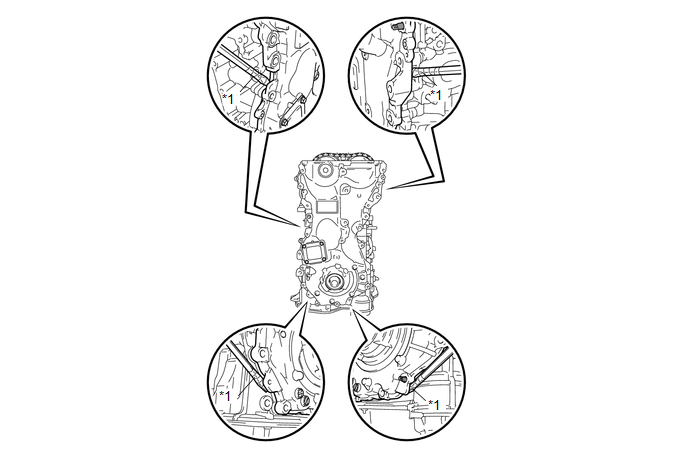

2. Remove the timing chain cover sub-assembly by prying between the timing chain cover sub-assembly and cylinder head sub-assembly, camshaft housing sub-assembly, cylinder block and stiffening crankcase assembly with a screwdriver as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a

   Protective Tape

   -

   -

   NOTE:

   Be careful not to damage the contact surfaces of the cylinder head sub-assembly, camshaft housing sub-assembly, cylinder block, stiffening crankcase assembly or timing chain cover sub-assembly.

   HINT:

   Tape the screwdriver tip before use.

3. Remove the 2 oil pump gaskets and oil hole cover gasket from the stiffening crankcase assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

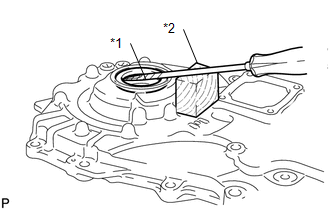

1. Using a screwdriver and wooden block, pry out the timing chain cover oil seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Protective Tape
   *2	Wooden Block

   NOTE:

   Do not damage the surface of the oil seal press fit hole.

   HINT:

   Tape the screwdriver tip before use.
