Removal [10/2014 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  2. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
    1. Disconnect the camshaft timing oil control valve assembly connector.
      GTY316091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft timing oil control valve assembly.

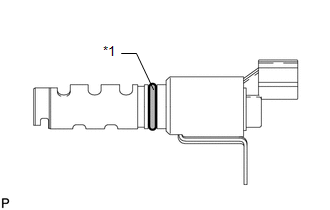

    3. Remove the O-ring from the camshaft timing oil control valve assembly.
      GTY556351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 O-ring
