Removal [10/2014 - ]: Procedure

Refer to PROCEDURE - Step 18

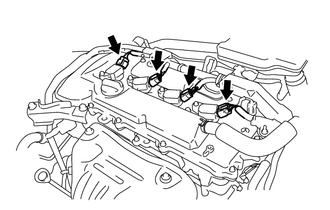

1. Disconnect the 4 ignition coil assembly connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 4 bolts and 4 ignition coil assemblies.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   If an ignition coil assembly has been struck or dropped, replace it.

   HINT:

   Arrange the removed parts in the correct order.

1. Remove the 4 spark plugs.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   If a spark plug has been struck or dropped, replace it.

   HINT:

   Arrange the removed parts in the correct order.
