Removal [10/2014 - ]: Procedure

  1. REMOVE INTAKE MANIFOLD

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE KNOCK CONTROL SENSOR

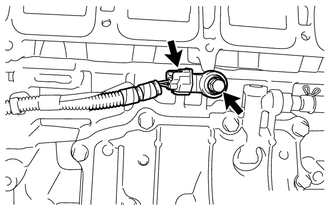

    1. Disconnect the knock control sensor connector.
      GTY248846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and knock control sensor.
