Removal [10/2014 - ]: Procedure

  1. REMOVE INTAKE MANIFOLD

    (Refer to REMOVAL [10/2014 - ] )

  2. REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
    1. Slide the clip and remove the No. 2 ventilation hose from the PCV valve (ventilation valve sub-assembly).

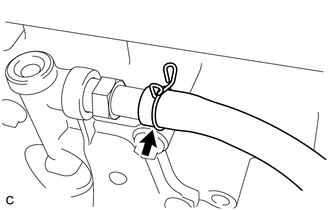

      GTY319440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 19 mm socket wrench, remove the PCV valve (ventilation valve sub-assembly) from the ventilation case assembly.

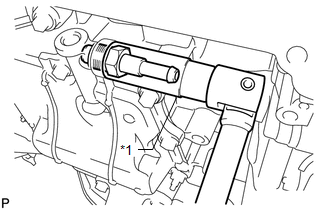

      GTY594680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 19 mm Socket Wrench
