RADIO ANTENNA CORD (for Sedan): Installation

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing PRECAUTION .
  1. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY
    1. w/ Curtain Shield Airbag:
      1. Install the antenna cord positioning tapes into the 4 claws of the front and rear side rail spacers.
      2. Align the antenna cord positioning tapes with the markings on the roof headlining.
      3. Install the antenna cord onto the roof headlining with 8 new pieces of tape.

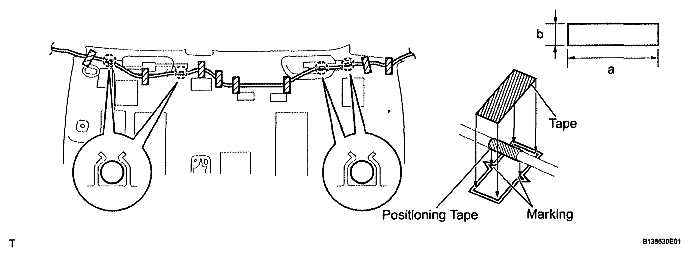

        Fig 1: Identifying Claws Of Front And Rear Side Real Spacers
        G04833550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Tape size:

        TAPE SIZE MEASUREMENT

        Mark Measurement
        a 80 mm (3.15 in.)
        b 20 mm (0.787 in.)
        NOTE:
        • Apply the tape securely in place.
        • Do not touch the adhesive surface when applying the tape to prevent adhesion failure.
    2. w/o Curtain Shield Airbag:
      1. Install the antenna cord positioning tapes into the 6 claws of the front and rear side rail spacers.
      2. Align the antenna cord positioning tapes with the markings on the roof headlining.
      3. Install the antenna cord onto the roof headlining with 6 new pieces of tape.

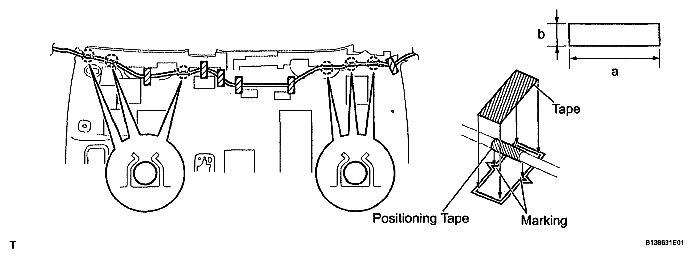

        Fig 2: Identifying Claws Of Front And Rear Side Real Spacers
        G04833551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Tape size:

        TAPE SIZE MEASUREMENT

        Mark Measurement
        a 80 mm (3.15 in.)
        b 20 mm (0.787 in.)
        NOTE:
        • Apply the tape securely in place.
        • Do not touch the adhesive surface when applying the tape to prevent adhesion failure.
  2. INSTALL ROOF HEADLINING ASSEMBLY
    1. w/ Curtain Shield Airbag:
      1. Engage the 4 hooks and install the roof headlining.
      2. Install the 2 clips.
        Fig 3: Identifying Clips And Hooks - W/ Curtain Shield Airbag
        G04835398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Curtain Shield Airbag:
      1. Engage the 2 claws and 4 hooks and install the roof headlining.
      2. Install the 2 clips.
        Fig 4: Identifying Claws And Hooks - W/O Curtain Shield Airbag
        G04835399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the antenna connector.
    4. Install the clamp.
  3. INSTALL MAP LIGHT ASSEMBLY  (See INSTALLATION )
  4. INSTALL ROOM LIGHT ASSEMBLY  (See INSTALLATION )
  5. INSTALL VISOR HOLDER RH  (See INSTALLATION )
  6. INSTALL VISOR HOLDER LH  (See INSTALLATION )
  7. INSTALL VISOR ASSEMBLY RH  (See INSTALLATION )
  8. INSTALL VISOR ASSEMBLY LH  (See INSTALLATION )
    Fig 5: Locating Antenna Connector And Clamp
    G04835397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL ASSIST GRIP SUB-ASSEMBLY  (See INSTALLATION )
  10. INSTALL ASSIST GRIP COVER  (See INSTALLATION )
  11. INSTALL ANTENNA CORD SUB-ASSEMBLY
    1. Install the antenna cord with the 5 clamps.
    2. Connect the antenna amplifier connector.
    3. Insert the hook into the body hole and install the bracket with the bolt.

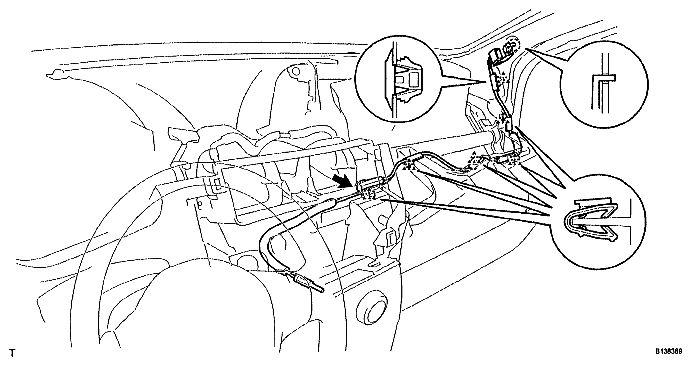

      Fig 6: Locating Antenna Amplifier Connector
      G04833544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL RADIO RECEIVER ASSEMBLY (See REASSEMBLY  )
  13. INSTALL INSTRUMENT CLUSTER CENTER FINISH PANEL SUB-ASSEMBLY (except Integrated with Panel)  (See INSTALLATION )
  14. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY  (See INSTALLATION )
  15. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  (See INSTALLATION )
  16. INSTALL COMBINATION METER ASSEMBLY  (See INSTALLATION )
  17. INSTALL INSTRUMENT CLUSTER FINISH PANEL  (See INSTALLATION )
  18. INSTALL INSTRUMENT PANEL FINISH PANEL END RH  (See INSTALLATION )
  19. INSTALL INSTRUMENT PANEL FINISH PANEL END LH  (See INSTALLATION )
  20. INSTALL INSTRUMENT PANEL LOWER CENTER FINISH PANEL  (See INSTALLATION )
  21. INSTALL FRONT PILLAR GARNISH RH  (See INSTALLATION )
  22. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
  23. INSTALL CENTER PILLAR UPPER GARNISH RH  (See INSTALLATION )
  24. INSTALL CENTER PILLAR UPPER GARNISH LH  (See INSTALLATION )
  25. INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH  (See INSTALLATION )
  26. INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH  (See INSTALLATION )
  27. INSTALL SEAT BELT ANCHOR COVER CAP  (See INSTALLATION )
  28. INSTALL CENTER PILLAR LOWER GARNISH RH  (See INSTALLATION )
  29. INSTALL CENTER PILLAR LOWER GARNISH LH  (See INSTALLATION )
  30. INSTALL ROOF SIDE INNER GARNISH RH  (See INSTALLATION )
  31. INSTALL ROOF SIDE INNER GARNISH LH  (See INSTALLATION )
  32. INSTALL REAR SEAT SIDE COVER RH  (See INSTALLATION )
  33. INSTALL REAR SEAT SIDE COVER LH  (See INSTALLATION )
  34. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH  (See INSTALLATION )
  35. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH  (See INSTALLATION )
  36. INSTALL REAR DOOR SCUFF PLATE RH  (See INSTALLATION )
  37. INSTALL REAR DOOR SCUFF PLATE LH  (See INSTALLATION )
  38. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH  (See INSTALLATION )
  39. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH  (See INSTALLATION )
  40. INSTALL COWL SIDE TRIM BOARD RH  (See INSTALLATION )
  41. INSTALL COWL SIDE TRIM BOARD LH  (See INSTALLATION )
  42. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH  (See INSTALLATION )
  43. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY LH  (See INSTALLATION )
  44. INSTALL FRONT DOOR SCUFF PLATE RH  (See INSTALLATION )
  45. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  46. INSTALL LUGGAGE COMPARTMENT TRIM INNER PAD (for 60/40 Split Seat Type)  (See INSTALLATION )
  47. INSTALL SPARE WHEEL COVER ASSEMBLY (for 60/ 40 Split Seat Type)  (See INSTALLATION )
  48. INSTALL LUGGAGE COMPARTMENT FLOOR MAT (for 60/40 Split Seat Type)  (See INSTALLATION )
  49. INSTALL REAR SEATBACK ASSEMBLY RH (for 60/ 40 Split Seat Type)  INSTALLATION
  50. INSTALL REAR SEATBACK ASSEMBLY LH (for 60/40 Split Seat Type)  (See INSTALLATION )
  51. INSTALL REAR SEATBACK ASSEMBLY (for Fixed Seat Type)  INSTALLATION
  52. INSTALL REAR SEAT CUSHION COVER PAD SUB-ASSEMBLY
    1. for 60/40 Split Seat Type:
      1. Install the rear seat cushion cover pad sub-assembly (See INSTALLATION ).
    2. for Fixed Seat Type:
      1. Install the rear seat cushion cover pad sub-assembly INSTALLATION .
  53. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  54. INSPECT SRS WARNING LIGHT

    DIAGNOSIS SYSTEM
