CURTAIN SHIELD AIRBAG ASSEMBLY (for Sedan): Installation

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing (See AIRBAG SYSTEM  ).

HINT:

The procedure described below is for the RH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

Fig 1: Identifying Roof Side Rail Bracket
G04830319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. INSTALL ROOF SIDE RAIL BRACKET RH
    1. Insert the 2 hooks into the body holes and install the roof side rail bracket and tighten 2 the bolts.

      Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)

      Fig 2: Identifying Roof Side Rail Bracket
      G04830319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CURTAIN SHIELD AIRBAG BRACKET RH
    1. Insert the 2 hooks into the body holes and install the curtain shield back bracket and tighten 1 the bolt.

      Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)

  3. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY RH
    1. Insert the 3 hooks into the body holes and install the curtain shield back bracket and tighten 9 the bolts.

      Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)

      Fig 3: Locating Curtain Shield Airbag Bracket
      G04830318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

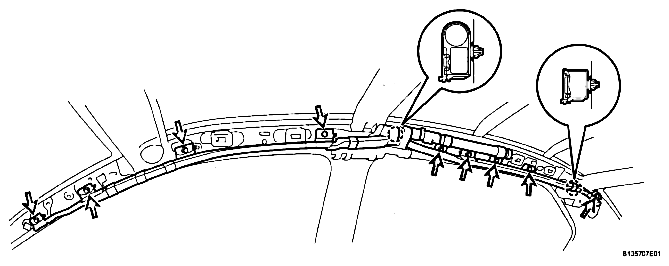

      Fig 4: Locating Curtain Shield Airbag And Bolts With Hooks
      G04830317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the airbag connector.
      NOTE: Lock the locking button securely.
  4. INSTALL ROOF HEADLINING ASSEMBLY  (See INSTALLATION )
  5. INSTALL MAP LIGHT ASSEMBLY  (See INSTALLATION )
  6. INSTALL ROOM LIGHT ASSEMBLY  (See INSTALLATION )
  7. INSTALL VISOR HOLDER RH  (See INSTALLATION )
  8. INSTALL VISOR HOLDER LH  (See INSTALLATION )
  9. INSTALL VISOR ASSEMBLY RH  (See INSTALLATION )
  10. INSTALL VISOR ASSEMBLY LH  (See INSTALLATION )
  11. INSTALL ASSIST GRIP COVER  (See INSTALLATION )
    Fig 5: Identifying Airbag Connector
    G04830323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL INSTRUMENT PANEL BOX  (See INSTALLATION )
  13. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY  (See INSTALLATION )
  14. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  (See INSTALLATION )
  15. INSTALL COMBINATION METER ASSEMBLY  (See INSTALLATION )
  16. INSTALL INSTRUMENT CLUSTER FINISH PANEL  (See INSTALLATION )
  17. INSTALL INSTRUMENT PANEL FINISH PANEL END RH  (See INSTALLATION )
  18. INSTALL INSTRUMENT PANEL FINISH PANEL END LH  (See INSTALLATION )
  19. INSTALL REAR CONSOLE BOX ASSEMBLY  (See INSTALLATION )
  20. INSTALL REAR CONSOLE BOX CARPET  (See INSTALLATION )
  21. INSTALL REAR CONSOLE BOX UPPER REAR PANEL SUB-ASSEMBLY  (See INSTALLATION )
  22. INSTALL REAR CONSOLE BOX UPPER FRONT PANEL SUB-ASSEMBLY  (See INSTALLATION )
  23. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  (See INSTALLATION )
  24. INSTALL INSTRUMENT PANEL LOWER CENTER FINISH PANEL  (See INSTALLATION )
  25. INSTALL FRONT PILLAR GARNISH RH  (See INSTALLATION )
  26. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
  27. INSTALL CENTER PILLAR UPPER GARNISH RH  (See INSTALLATION )
  28. INSTALL CENTER PILLAR UPPER GARNISH LH  (See INSTALLATION )
  29. INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH  (See INSTALLATION )
  30. INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH  (See INSTALLATION )
  31. INSTALL SEAT BELT ANCHOR COVER CAP  (See INSTALLATION )
  32. INSTALL CENTER PILLAR LOWER GARNISH RH  (See INSTALLATION )
  33. INSTALL CENTER PILLAR LOWER GARNISH LH  (See INSTALLATION )
  34. INSTALL ROOF SIDE INNER GARNISH RH  (See INSTALLATION )
  35. INSTALL ROOF SIDE INNER GARNISH LH  (See INSTALLATION )
  36. INSTALL REAR SEAT SIDE COVER RH  (See INSTALLATION )
  37. INSTALL REAR SEAT SIDE COVER LH  (See INSTALLATION )
  38. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH  (See INSTALLATION )
  39. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH  (See INSTALLATION )
  40. INSTALL REAR DOOR SCUFF PLATE RH  (See INSTALLATION )
  41. INSTALL REAR DOOR SCUFF PLATE LH  (See INSTALLATION )
  42. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH  (See INSTALLATION )
  43. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH  (See INSTALLATION )
  44. INSTALL COWL SIDE TRIM BOARD RH  (See INSTALLATION )
  45. INSTALL COWL SIDE TRIM BOARD LH  (See INSTALLATION )
  46. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH  (See INSTALLATION )
  47. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY LH  (See INSTALLATION )
  48. INSTALL FRONT DOOR SCUFF PLATE RH  (See INSTALLATION )
  49. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  50. INSTALL LUGGAGE COMPARTMENT TRIM INNER PAD (for 60/40 Split Seat Type)  (See INSTALLATION )
  51. INSTALL SPARE WHEEL COVER ASSEMBLY (for 60/ 40 Split Seat Type)  (See INSTALLATION )
  52. INSTALL LUGGAGE COMPARTMENT FLOOR MAT (for 60/40 Split Seat Type)  (See INSTALLATION )
  53. INSTALL REAR SEATBACK ASSEMBLY (for Fixed Seat Type)  INSTALLATION
  54. INSTALL REAR SEATBACK ASSEMBLY LH (for 60/40 Split Seat Type)  (See INSTALLATION )
  55. INSTALL REAR SEATBACK ASSEMBLY RH (for 60/ 40 Split Seat Type)  (See INSTALLATION )
  56. INSTALL REAR SEAT CUSHION COVER PAD SUB-ASSEMBLY  (See INSTALLATION )
  57. INSTALL FRONT SEAT ASSEMBLY LH  INSTALLATION
  58. INSTALL FRONT SEAT ASSEMBLY RH  (See INSTALLATION )
  59. INSTALL FRONT SEAT HEADREST ASSEMBLY  (See INSTALLATION )
  60. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  61. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM  )
