Parking Brake Pedal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
  2. REMOVE SEAT TRACK BRACKET COVER OUTER FRONT LH

    For Manual Seat (See REMOVAL )

    For Power Seat (See REMOVAL )

  3. REMOVE SEAT TRACK BRACKET COVER INNER FRONT LH

    For Manual Seat (See REMOVAL )

    For Power Seat (See REMOVAL )

  4. REMOVE SEAT TRACK COVER LH

    For Manual Seat (See REMOVAL )

    For Power Seat (See REMOVAL )

  5. REMOVE SEAT TRACK COVER RH

    For Manual Seat (See REMOVAL )

    For Power Seat (See REMOVAL )

  6. REMOVE FRONT SEAT ASSEMBLY

    For Manual Seat of w/o Front Seat Side Airbag (See REMOVAL )

    For Manual Seat of w/ Front Seat Side Airbag (See DISASSEMBLY )

    For Power Seat of w/o Front Seat Side Airbag (See REMOVAL )

    For Power Seat of w/ Front Seat Side Airbag (See DISASSEMBLY )

  7. REMOVE FRONT DOOR SCUFF PLATE

    For w/ Rear No.2 Seat (See REMOVAL )

    For w/o Rear No.2 Seat (See REMOVAL )

  8. REMOVE COWL SIDE TRIM SUB-ASSEMBLY  (See REMOVAL )
  9. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER  (See REMOVAL )
  10. REMOVE INSTRUMENT PANEL INSERT SUB-ASSEMBLY LOWER  (See REMOVAL )
  11. REMOVE FLOOR CARPET COVER CENTER  (See REMOVAL )
  12. REMOVE SKID CONTROL ECU  (See REMOVAL )
  13. REMOVE FLOOR FOOTREST
  14. REMOVE PARKING BRAKE PEDAL
    1. Remove the 2 bolts and separate the parking brake No.2 and No.3 cable assemblies from the parking brake equalizer.
      Fig 1: Locating Parking Brake Pedal Bolts
      G05202967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the rubber boot as shown in the illustration.
      Fig 2: Sliding Rubber Boot
      G05202968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the parking brake equalizer from the parking brake No.1 cable assembly.
      Fig 3: Removing Parking Brake Equalizer From Parking Brake No.1 Cable Assembly
      G05202969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 bolts and 2 nuts, and separate the parking brake No.1 cable assembly from the body.

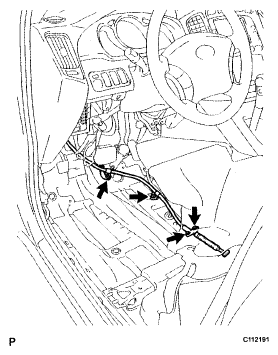

      Fig 4: Removing Parking Brake Cable Assembly From Body
      G05202970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the connector and clamp.
    6. Remove the 3 nuts and parking brake pedal from the body.
      Fig 5: Removing Nuts And Parking Brake Pedal From Body
      G05202971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
