FRONT SEAT ASSEMBLY (for Power Seat): Disassembly

1. Using a screwdriver, remove the reclining power seat switch knob.

   HINT:

   Tape the screwdriver tip before use.

1. Using a screwdriver, remove the slide and vertical power seat switch knob.

   HINT:

   Tape the screwdriver tip before use.

1. Release the 2 rubber bands on the backside of the front seatback board sub-assembly.
2. Remove the 7 screws.
3. Disengage the 4 claws and clip, and remove the front seat cushion shield assembly as shown in the illustration.
4. Driver seat only:
   1. Disconnect the power seat switch assembly connector.
5. Remove the front seat cushion shield assembly.

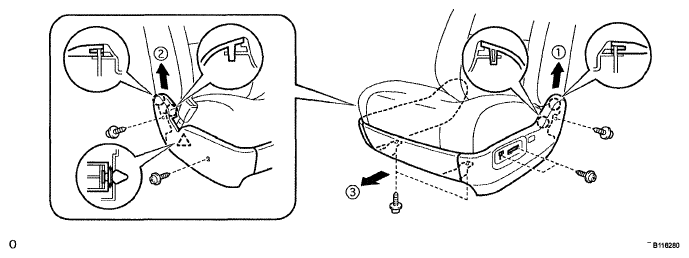

   Fig 1: Locating Front Seat Cushion Shield Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws and power seat switch assembly.

1. Remove the screw.
2. Disengage the claw and remove the front seat cushion shield.

1. Remove the screw.
2. Disengage the claw and remove the front seat cushion shield inner.

1. Disconnect the connector.
2. Remove the 3 screws and front power seat switch.

1. Using a clip remover, remove the 2 clips.
2. Using a screwdriver, raise the 2 claws on the cushion frame of the front seat adjuster RH.

   HINT:

   Tape the screwdriver tip before use.

3. With seat heater:
   1. Disconnect the connector.
4. Disengage the hooks and remove the hog rings and separate type front seat cushion cover with pad.

1. Remove the hog rings and separate type front seat cushion cover.

1. Using a screwdriver, disengage the 2 claws and remove the seat armrest cover.
   Fig 2: Identifying Seat Armrest Cover Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Tape the screwdriver tip before use.

1. Remove the bolt and seat armrest assembly.

1. Remove the 2 screws.
2. Slide the front seatback board sub-assembly down to disengage the 2 claws at the top.
   Fig 3: Locating 2 Claws At Top

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Hold the top right and lower left corners of the front seatback board sub-assembly.
   Fig 4: Locating Top Right And Lower Left Corners Of Front Seatback Board Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Turn the front seatback board sub-assembly counterclockwise to disengage the 2 claws.

   Remove the front seatback board sub-assembly.

   Fig 5: Locating Front Seatback Board Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disengage the hooks and remove the front seatback board cover sub-assembly.

1. Release the hook and turn back the upper part of the separate type front seatback cover so that access to the claws of the front seat headrest supports is possible.
   Fig 6: Locating Hog Rings

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 2 claws and remove the front seat headrest support (LH side).

HINT:

Use the same procedures described for the LH side.

1. With seat heater:
   1. Disconnect the connector.
2. Without front seat side airbag:
   1. Disengage the hook and remove the separate type front seatback cover bracket with pad.
3. With front seat side airbag:
   1. Remove the nut and disconnect the separate type front seatback cover bracket.
   2. Disengage the hook and remove the separate type front seatback cover bracket with pad.

1. Remove the hog rings and separate type front seatback cover.

1. Remove the 2 screws and LH seat reclining adjuster inside cover.

HINT:

Use the same procedures for the RH side and LH side.

1. Remove the screws and reclining adjuster inside cover LH.

HINT:

Use the same procedures for the RH side and LH side.

1. Remove the screws and front seat cushion shield lower LH.

HINT:

Use the same procedures for the RH side and LH side.

1. Disconnect the connector.
2. Remove the 2 screws and lumbar support adjuster assembly.

1. Disengage the clamp and remove the front seat wire.

1. Disengage the clamp and remove the 2 nuts and front seat side airbag assembly.
