Partial Engine ASSY (3MZ-FE): Replacement

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCHARGE FUEL SYSTEM PRESSURE (See  FUEL SYSTEM (3MZ-FE)  )
  2. DISCONNECT BATTERY NEGATIVE TERMINAL
  3. REMOVE FRONT WHEELS
  4. REMOVE ENGINE UNDER COVER NO. 1
  5. REMOVE ENGINE UNDER COVER NO. 2
  6. REMOVE FRONT FENDER APRON SEAL RH
  7. DRAIN ENGINE COOLANT (See  REPLACEMENT  )
  8. DRAIN ENGINE OIL (See  REPLACEMENT  )
  9. DRAIN AUTOMATIC TRANSAXLE FLUID (See  AUTOMATIC TRANSAXLE FLUID  )
  10. REMOVE V-BANK COVER SUB-ASSY (See  REPLACEMENT  )
  11. REMOVE RADIATOR LOWER AIR DEFLECTOR (See  REMOVAL & INSTALLATION  )
  12. REMOVE BATTERY
  13. REMOVE BATTERY TRAY
  14. REMOVE AIR CLEANER INLET ASSY (See  REMOVAL & INSTALLATION  )
  15. REMOVE AIR CLEANER ASSY (See  REMOVAL & INSTALLATION  )
  16. REMOVE AIR CLEANER BRACKET (See  REMOVAL & INSTALLATION  )
  17. REMOVE AIR CLEANER INLET NO. 1 (See  REMOVAL & INSTALLATION  )
  18. REMOVE INTAKE AIR RESONATOR SUB-ASSY
    1. Remove the clip and bolt, then remove the intake air resonator.
  19. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1 (See  REPLACEMENT   )
  20. REMOVE GENERATOR ASSY (See  REMOVAL & INSTALLATION  )
  21. REMOVE ENGINE MOVING CONTROL ROD (See  REPLACEMENT   )
  22. REMOVE ENGINE MOUNTING STAY NO. 2 RH (See  REPLACEMENT   )
  23. REMOVE GENERATOR BRACKET NO. 2 (See  REPLACEMENT  )
  24. REMOVE GENERATOR BELT ADJUSTING BAR (See  REPLACEMENT  )
  25. SEPARATE COMPRESSOR AND MAGNETIC CLUTCH (See  REPLACEMENT  )
  26. SEPARATE TRANSMISSION CONTROL CABLE ASSY (See  TRANSMISSION CONTROL CABLE ASSY  )
  27. DISCONNECT UNION TO CHECK VALVE HOSE
  28. DISCONNECT FUEL VAPOR FEED HOSE NO. 1
  29. DISCONNECT FUEL PIPE SUB-ASSY NO. 1 (See  FUEL SYSTEM (3MZ-FE)  )
  30. DISCONNECT HEATER INLET WATER HOSE
  31. DISCONNECT HEATER OUTLET WATER HOSE
  32. DISCONNECT RADIATOR HOSE INLET
  33. DISCONNECT RADIATOR HOSE OUTLET
  34. DISCONNECT OIL COOLER INLET HOSE
  35. DISCONNECT OIL COOLER OUTLET HOSE
  36. DISCONNECT OIL RESERVOIR TO PUMP HOSE NO. 1

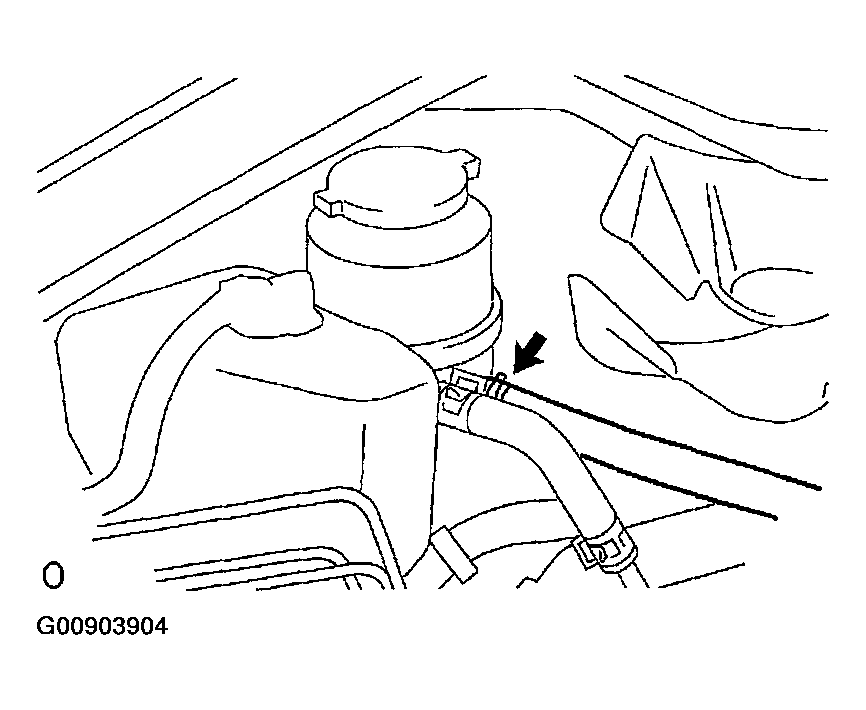

    Fig 1: Locating Oil Reservoir Pump Hose
    G00903904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. DISCONNECT STEERING GEAR OUTLET RETURN TUBE

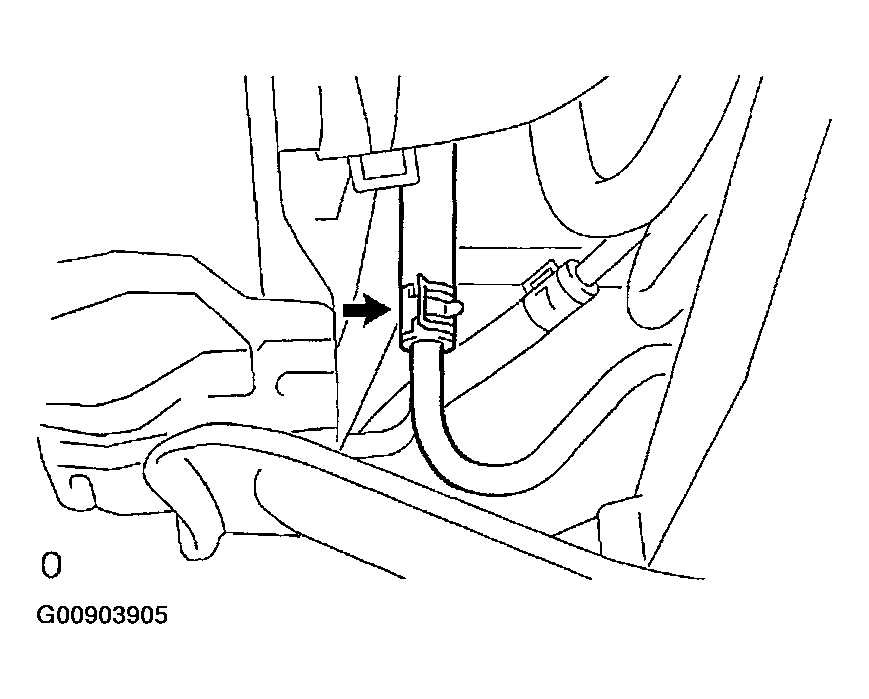

    Fig 2: Locating Steering Gear Outlet Return Tube
    G00903905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE GLOVE COMPARTMENT DOOR ASSY (See  REPLACEMENT  )
  39. SEPARATE ENGINE WIRE
    1. Disconnect the engine wire harness from the ECM and junction block.
    2. Disconnect the engine wire harness from the engine room junction block.
      1. Remove the nut, then separate the engine wire harness.
      2. Using a screwdriver, release the engine room junction block. Separate the engine wire harness by pulling it upward.
    3. Remove the 2 nuts, then pull out the engine wire harness.
    4. Remove the body ground.

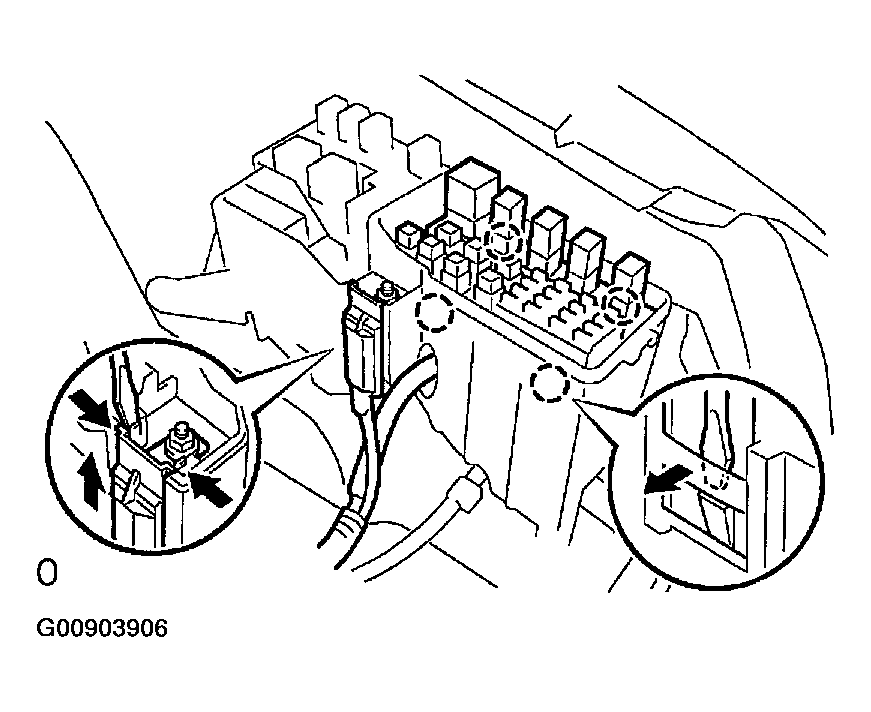

      Fig 3: Disconnecting Engine Wire Harness From Engine Room Junction Block
      G00903906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE EXHAUST PIPE NO. 1 SUPPORT BRACKET FRONT (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  41. REMOVE EXHAUST PIPE NO. 1 SUPPORT BRACKET REAR (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  42. REMOVE EXHAUST PIPE ASSY FRONT (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  43. DISCONNECT FRONT STABILIZER LINK ASSY LH (See  REMOVAL  )
  44. DISCONNECT FRONT STABILIZER LINK ASSY RH

    HINT:

    Perform the same procedure as above on the opposite side.

  45. REMOVE FRONT AXLE HUB LH NUT (See  REMOVAL  )

    SST 09930-00010

  46. REMOVE FRONT AXLE HUB RH NUT

    SST 09930-00010

    HINT:

    Perform the same procedure as above on the opposite side.

  47. SEPARATE SPEED SENSOR FRONT LH (See  REMOVAL  )
  48. SEPARATE SPEED SENSOR FRONT RH

    HINT:

    Perform the same procedure as above on the opposite side.

  49. SEPARATE TIE ROD ASSY LH (See  REMOVAL  )

    SST 09628-62011

  50. SEPARATE TIE ROD ASSY RH

    SST 09628-62011

    HINT:

    Perform the same procedure as above on the opposite side.

  51. SEPARATE FRONT SUSPENSION ARM SUB-ASSY LOWER NO. 1 LH (See  REMOVAL  )
  52. SEPARATE FRONT SUSPENSION ARM SUB-ASSY LOWER NO. 1 RH

    HINT:

    Perform the same procedure as above on the opposite side.

  53. SEPARATE FRONT AXLE ASSY LH (See  REMOVAL  )
  54. SEPARATE FRONT AXLE ASSY RH

    HINT:

    Perform the same procedure as above on the opposite side.

  55. SEPARATE STEERING INTERMEDIATE SHAFT ASSY (See  RACK & PINION POWER STEERING GEAR ASSY  )
  56. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
    1. Set the engine lifter.

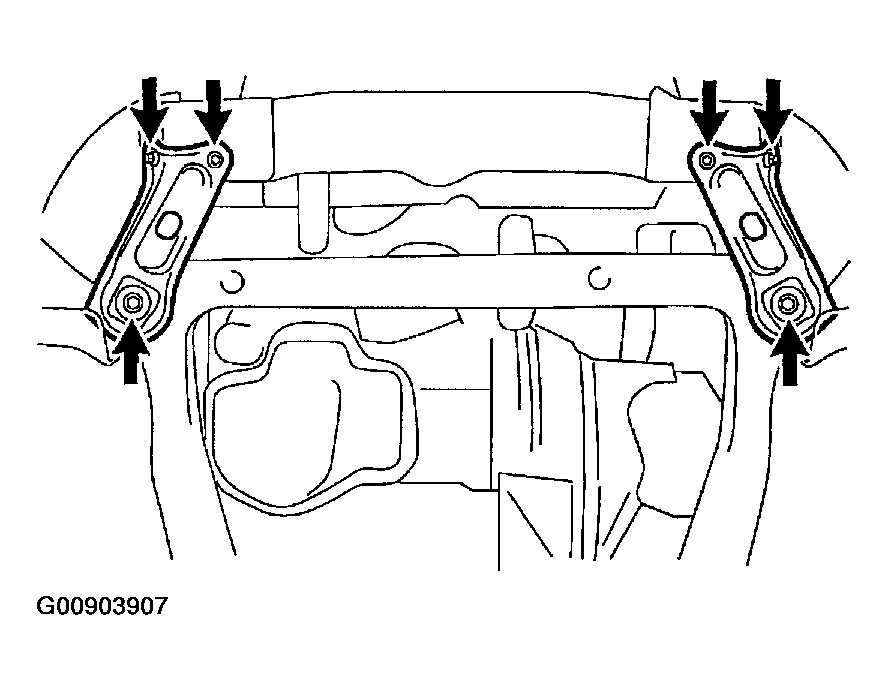

      Fig 4: Locating Frame Side Rail Plate
      G00903907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and 2 nuts, then remove the frame side rail plate RH and LH.

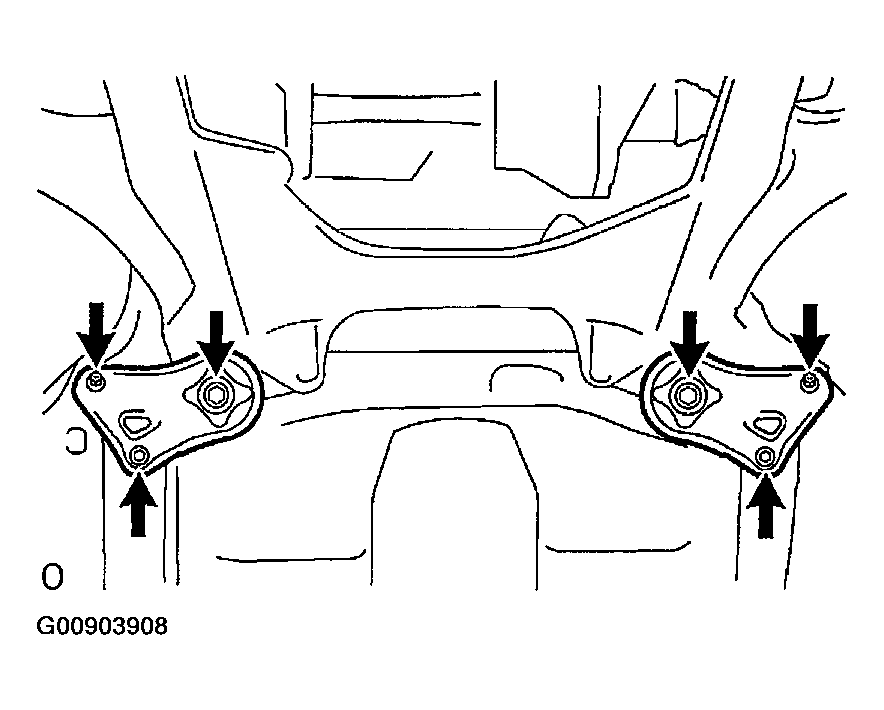

      Fig 5: Locating Frame Side Rail Plate RH And LH
      G00903908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 bolts and 2 nuts, then remove the front suspension member brace rear RH and LH.
    4. Carefully remove the engine assembly from the vehicle.
    5. Install the engine hanger No. 2 in the correct direction as shown in the illustration.

      Torque: 20 N.m (199 kgf.cm, 14 ft.lbf)

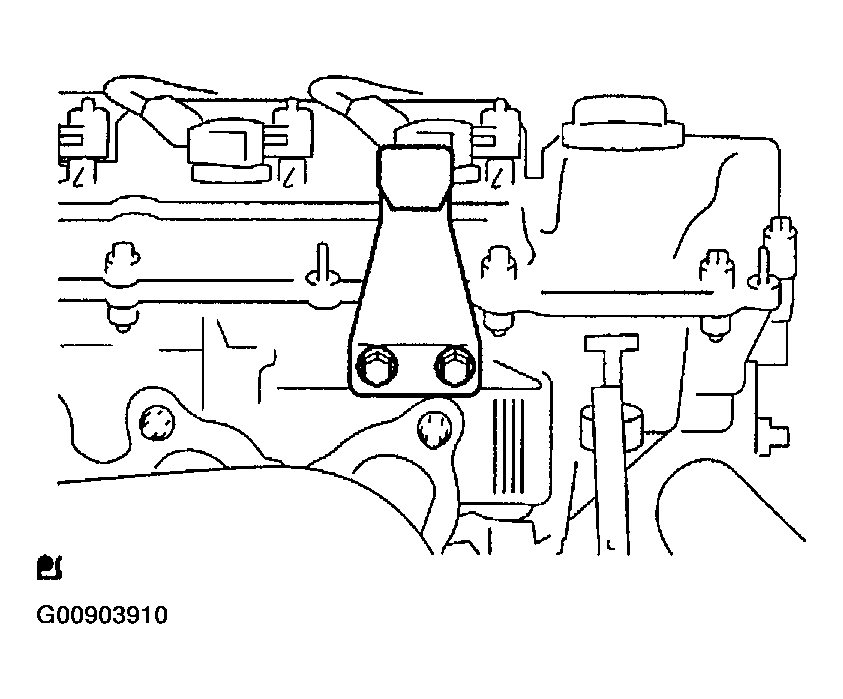

      Fig 6: Installing Engine Hanger
      G00903910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

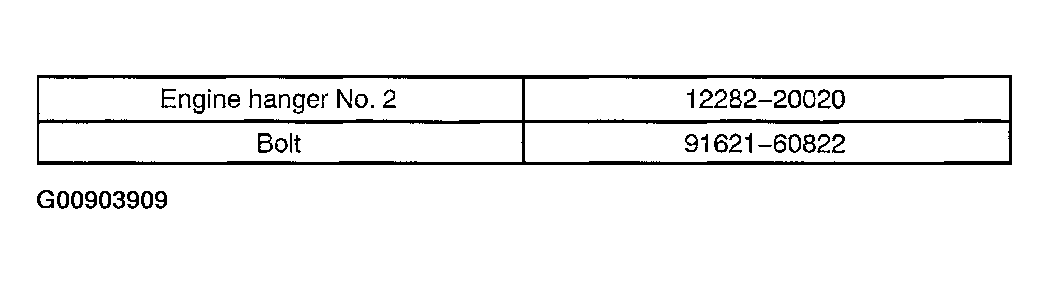

      Fig 7: Engine Hanger Table
      G00903909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

    6. Attach the engine sling and hang the engine assembly with the chain block.
  57. REMOVE VANE PUMP V BELT (See  REPLACEMENT   )
  58. REMOVE VANE PUMP ASSY
    1. Remove the 2 nuts, then disconnect the power steering pressure tube.

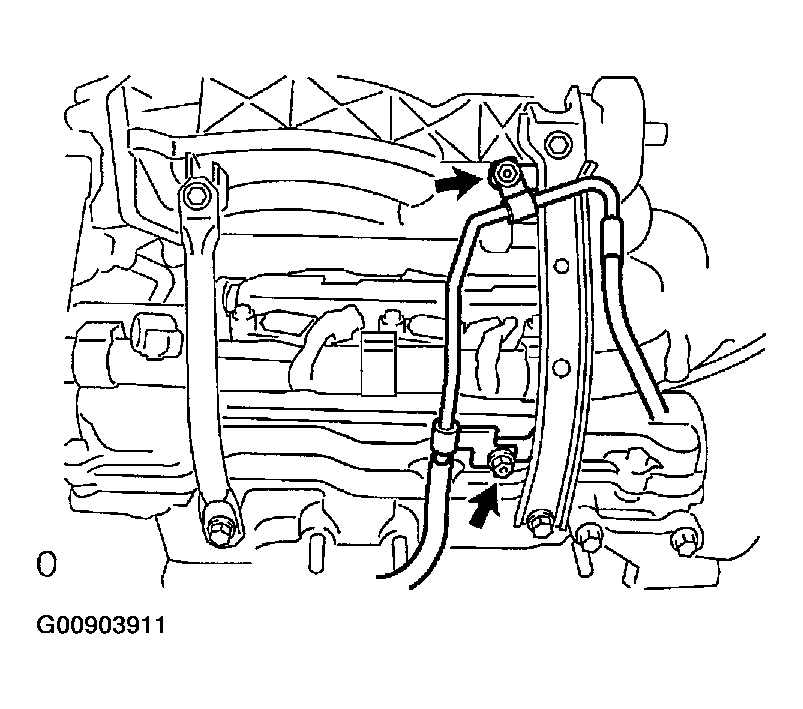

      Fig 8: Removing Vane Pump
      G00903911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and vane pump.

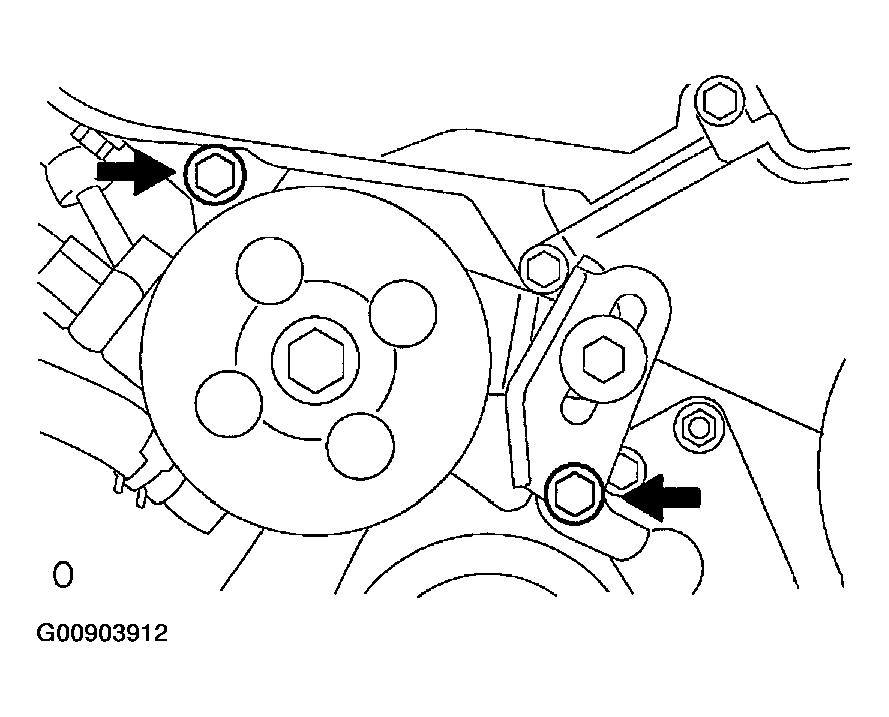

      Fig 9: Locating Vane Pump Bolt
      G00903912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  59. REMOVE FRONT FRAME ASSY
    1. Remove the 2 nuts, then separate the engine mounting insulator RH and LH.

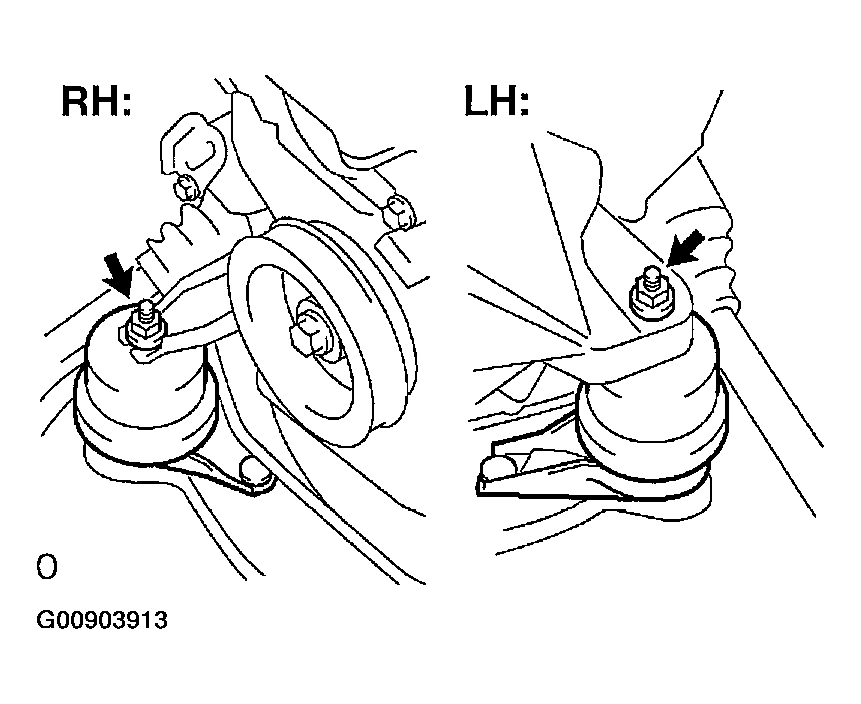

      Fig 10: Locating Front Frame Bolt
      G00903913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt, then separate the engine mounting insulator FR.
      Fig 11: Locating Bolt
      G00903914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  60. REMOVE FRONT DRIVE SHAFT ASSY LH (See  REMOVAL  )

    SST 09520-01010, 09520-24010 (09520-32040)

  61. REMOVE FRONT DRIVE SHAFT ASSY RH (See  REMOVAL  )
  62. REMOVE STARTER ASSY (See  REMOVAL & INSTALLATION  )
  63. REMOVE ENGINE MOUNTING BRACKET FR (See  REPLACEMENT  )
  64. REMOVE EXHAUST PIPE SUPPORT BRACKET NO. 1 (See  REPLACEMENT  )
  65. REMOVE AUTOMATIC TRANSAXLE ASSY (See  REPLACEMENT  )
  66. REMOVE DRIVE SHAFT BEARING BRACKET
  67. REMOVE DRIVE PLATE & RING GEAR SUB-ASSY (See ' REPLACEMENT   )

    SST 09213-54015 (91651-60855), 099330-00021

  68. INSTALL ENGINE STAND
  69. REMOVE ENGINE HANGER NO. 2
  70. REMOVE EMISSION CONTROL VALVE SET (See  REPLACEMENT  )
  71. REMOVE INTAKE AIR SURGE TANK (See  REPLACEMENT  )
  72. REMOVE WATER MANIFOLD (See  REPLACEMENT  )
  73. REMOVE WATER OUTLET (See  REPLACEMENT  )
  74. REMOVE IGNITION COIL ASSY
  75. REMOVE EXHAUST MANIFOLD HEAT INSULATOR NO. 1 (See  REPLACEMENT   )
  76. REMOVE EXHAUST MANIFOLD SUB-ASSY RH (See  REPLACEMENT   )
  77. REMOVE MANIFOLD CONVERTER INSULATOR NO. 3
    1. Remove the bolt and nut, then remove the insulator.

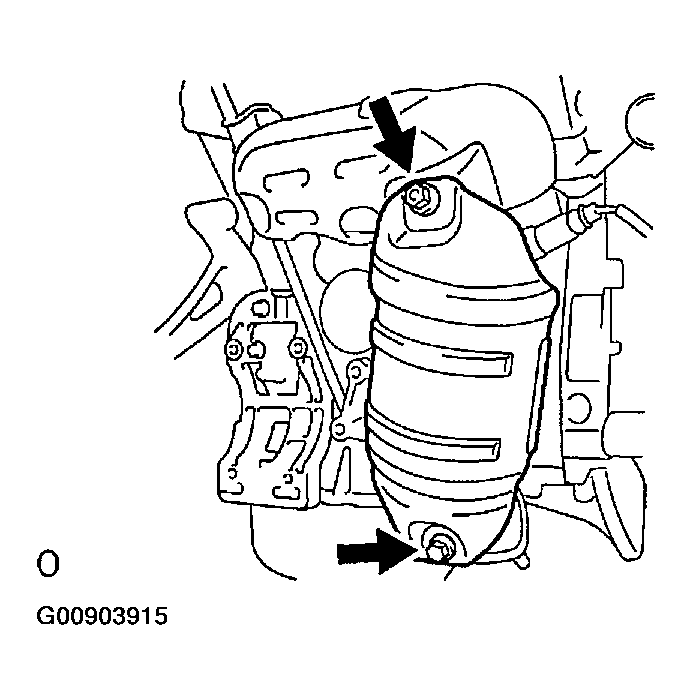

      Fig 12: Removing Manifold Converter Insulator No. 3
      G00903915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  78. REMOVE EXHAUST MANIFOLD HEAT INSULATOR NO. 2
    1. Remove the 2 bolts and insulator.

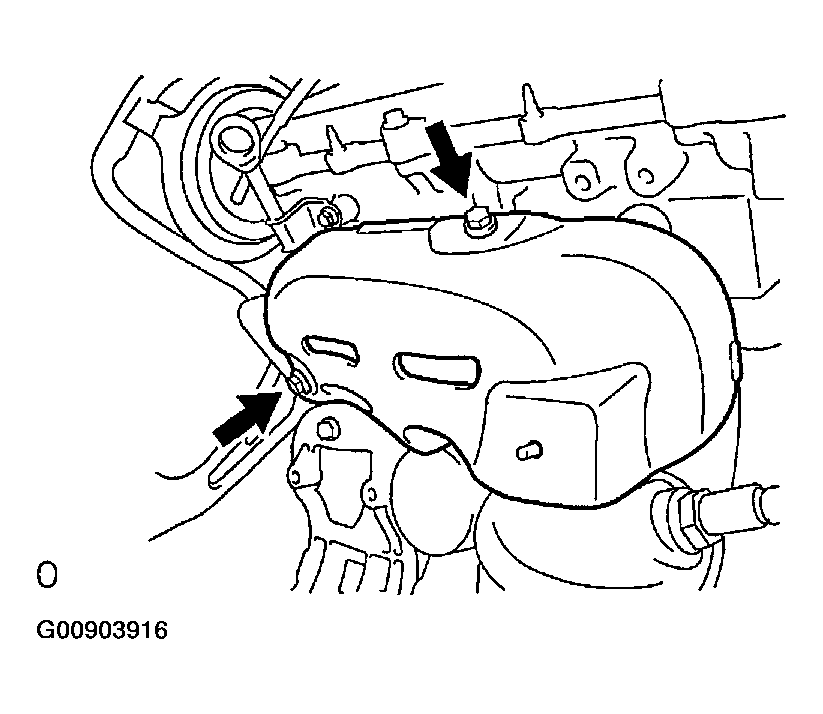

      Fig 13: Removing Exhaust Manifold Heat Insulator No. 2
      G00903916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  79. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSY NO. 2
    1. Using several steps, loosen and remove the 7 nuts in the sequence shown in illustration.
    2. Remove the exhaust manifold converter No. 2 and gasket from the cylinder head LH.

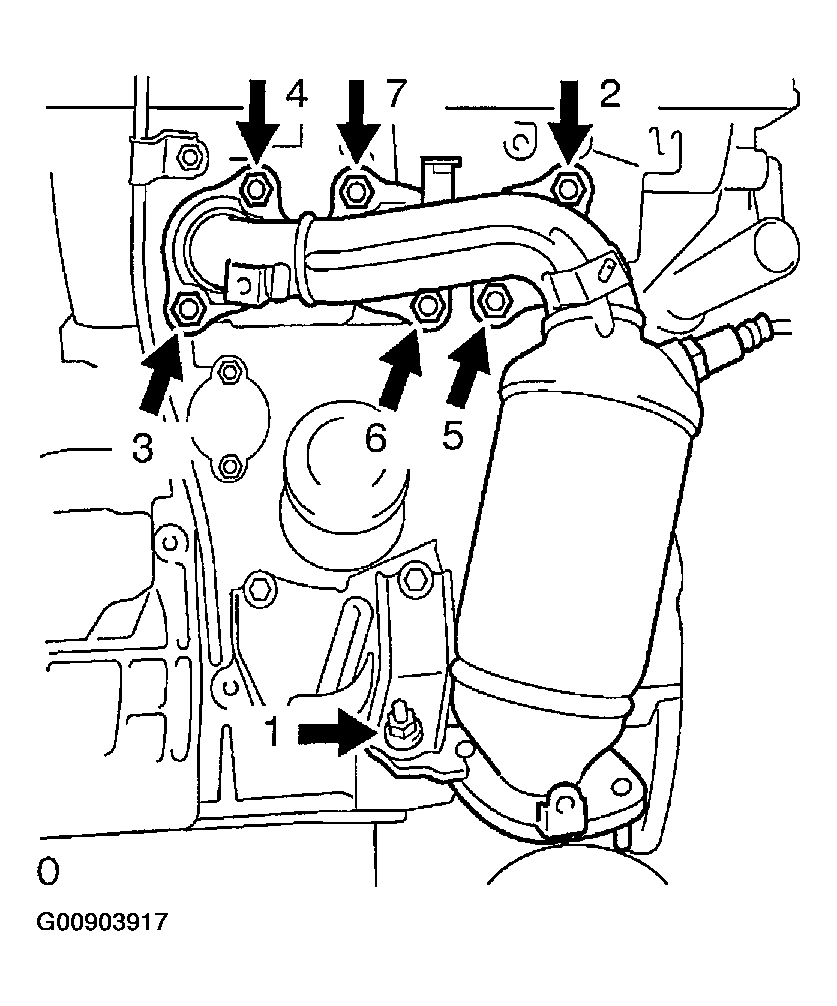

      Fig 14: Identifying Exhaust Manifold Converter Bolt Loosening Sequence
      G00903917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  80. REMOVE MANIFOLD STAY NO. 2
    1. Remove the 2 bolts and manifold stay.

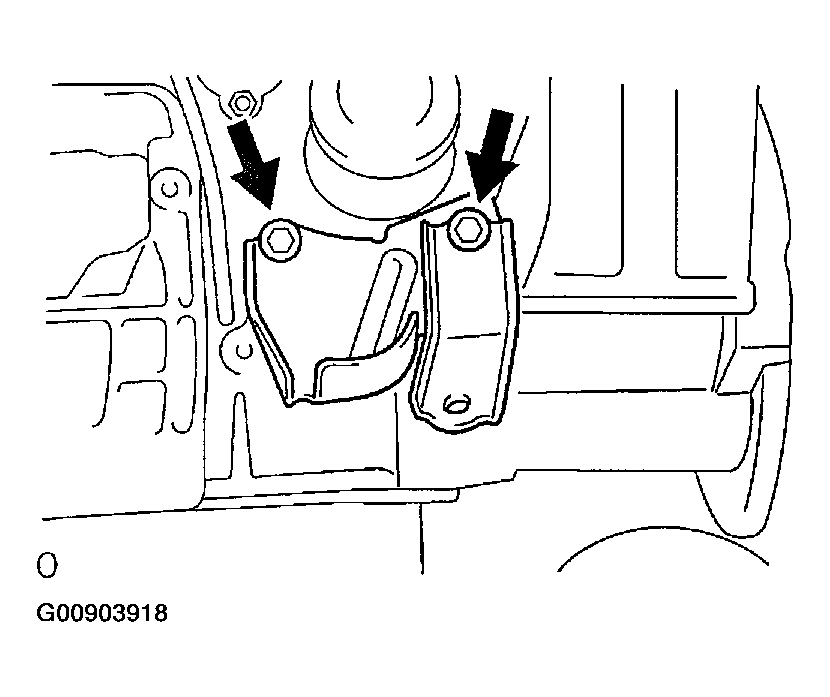

      Fig 15: Locating Bolts And Manifold Stay
      G00903918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  81. REMOVE ENGINE MOUNTING BRACKET RH (See  REPLACEMENT  )
  82. REMOVE PUMP BRACKET
    1. Remove the 3 bolts and pump bracket.

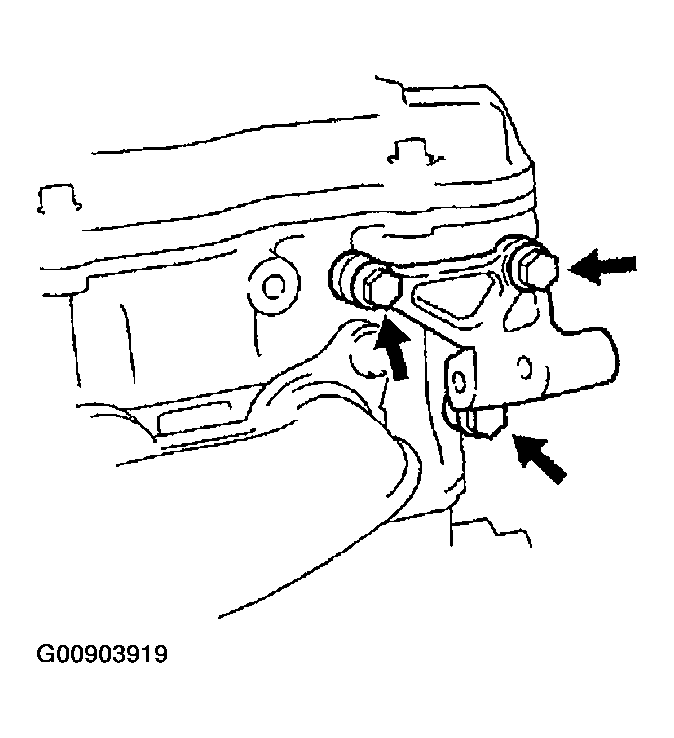

      Fig 16: Removing Bolts And Pump Bracket
      G00903919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  83. REMOVE GENERATOR BRACKET NO. 1
  84. REMOVE COMPRESSOR MOUNTING BRACKET NO. 1 (See  REPLACEMENT  )
  85. REMOVE WATER INLET PIPE (See  REPLACEMENT  )
  86. REMOVE WATER INLET (See  REPLACEMENT  )
  87. REMOVE THERMOSTAT
  88. REMOVE ENGINE OIL PRESSURE SWITCH ASSY
    1. Using a deep socket wrench 24 mm, remove the oil pressure switch.

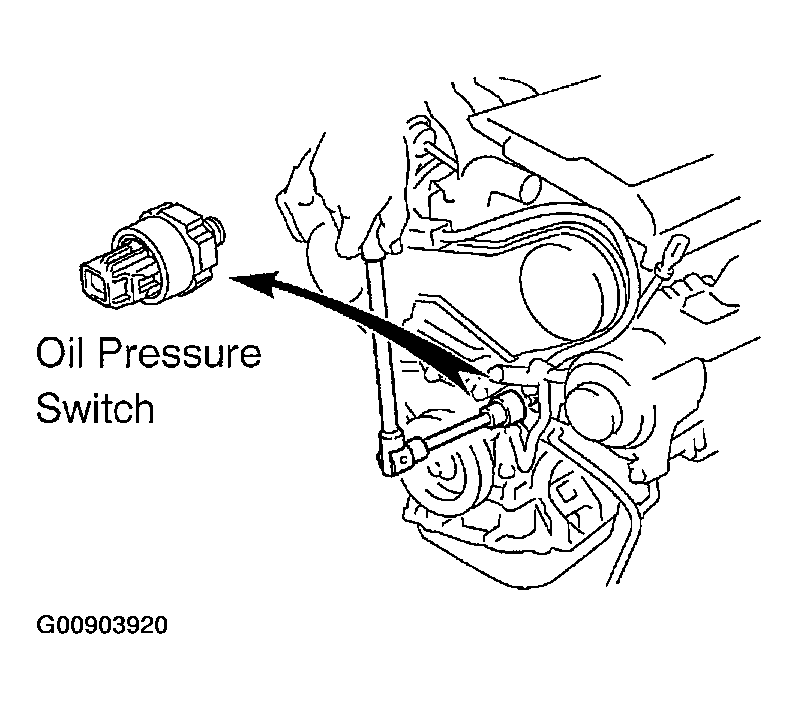

      Fig 17: Locating Oil Pressure Switch
      G00903920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  89. REMOVE KNOCK SENSOR (See  REPLACEMENT  )
  90. REPLACE PARTIAL ENGINE ASSY
  91. INSTALL KNOCK SENSOR (See  REPLACEMENT  )
  92. INSTALL ENGINE OIL PRESSURE SWITCH ASSY
    1. Apply adhesive to 2 or 3 threads of the oil pressure switch.

      Adhesive:

      Part No. 08833-00080 THREE BOND 1344,

      LOCTITE 242 or equivalent

    2. Using a deep socket wrench 24 mm, install the oil pressure switch.

      Torque: 15 N.m (153 kgf.cm, 11 ft.lbf)

  93. INSTALL THERMOSTAT (See  REPLACEMENT  )
  94. INSTALL WATER INLET (See  REPLACEMENT  )
  95. INSTALL WATER INLET PIPE (See  REPLACEMENT  )
  96. INSTALL COMPRESSOR MOUNTING BRACKET NO. 1 (See  REPLACEMENT  )
  97. INSTALL GENERATOR BRACKET NO. 1

    Torque: 58 N.m (591 kgf.cm, 43 ft.lbf)

  98. INSTALL PUMP BRACKET

    Torque: 32 N.m (326 kgf.cm, 24 ft.lbf)

  99. INSTALL ENGINE MOUNTING BRACKET RH (See  REPLACEMENT  )
  100. INSTALL MANIFOLD STAY NO. 2

    Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)

  101. INSTALL EXHAUST MANIFOLD CONVERTER SUB-ASSY NO. 2
    1. Install a new gasket and the exhaust manifold converter No. 2 with the 7 nuts. Using several steps, tighten the nuts uniformly in the sequence shown the illustration.

      Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)

    2. Retighten nuts 1 and 2 as shown in the illustration.
      Fig 18: Identifying Exhaust Manifold Bolt Tightening Sequence
      G00903921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  102. INSTALL EXHAUST MANIFOLD HEAT INSULATOR NO. 2

    Torque: 8.5 N.m (87 kgf.cm, 75 in.lbf)

  103. INSTALL MANIFOLD CONVERTER INSULATOR NO. 3

    Torque: 8.5 N.m (87 kgf.cm, 75 in.lbf)

  104. INSTALL EXHAUST MANIFOLD SUB-ASSY RH (See  REPLACEMENT   )
  105. INSTALL EXHAUST MANIFOLD HEAT INSULATOR NO. 1 (See  REPLACEMENT   )
  106. INSTALL IGNITION COIL ASSY (See  ADJUSTMENT   )
  107. INSTALL WATER OUTLET (See  REPLACEMENT  )
  108. INSTALL INTAKE MANIFOLD (See  REPLACEMENT  )
  109. INSTALL INTAKE AIR SURGE TANK (See  REPLACEMENT  )
  110. INSTALL EMISSION CONTROL VALVE SET (See  REPLACEMENT  )
  111. INSTALL DRIVE PLATE & RING GEAR SUB-ASSY (See  REPLACEMENT   )

    SST 09213-54015 (91651-60855), 09330-00021

  112. INSTALL DRIVE SHAFT BEARING BRACKET

    Torque: 64 N.m (650 kgf.cm, 47 in.lbf)

  113. INSTALL AUTOMATIC TRANSAXLE ASSY (See  REPLACEMENT  )
  114. INSTALL EXHAUST PIPE SUPPORT BRACKET NO. 1 (See  REPLACEMENT  )
  115. INSTALL ENGINE MOUNTING BRACKET FR (See  REPLACEMENT  )
  116. INSTALL STARTER ASSY (See  REMOVAL & INSTALLATION  )
  117. INSTALL FRONT DRIVE SHAFT ASSY LH (See  INSTALLATION  )
  118. INSTALL FRONT DRIVE SHAFT ASSY RH (See  INSTALLATION  )
  119. INSTALL FRONT FRAME ASSY
    1. Install the engine mounting insulator RH and LH with the 2 nuts.

      Torque: 95 N.m (969 kgf.cm, 70 ft.lbf)

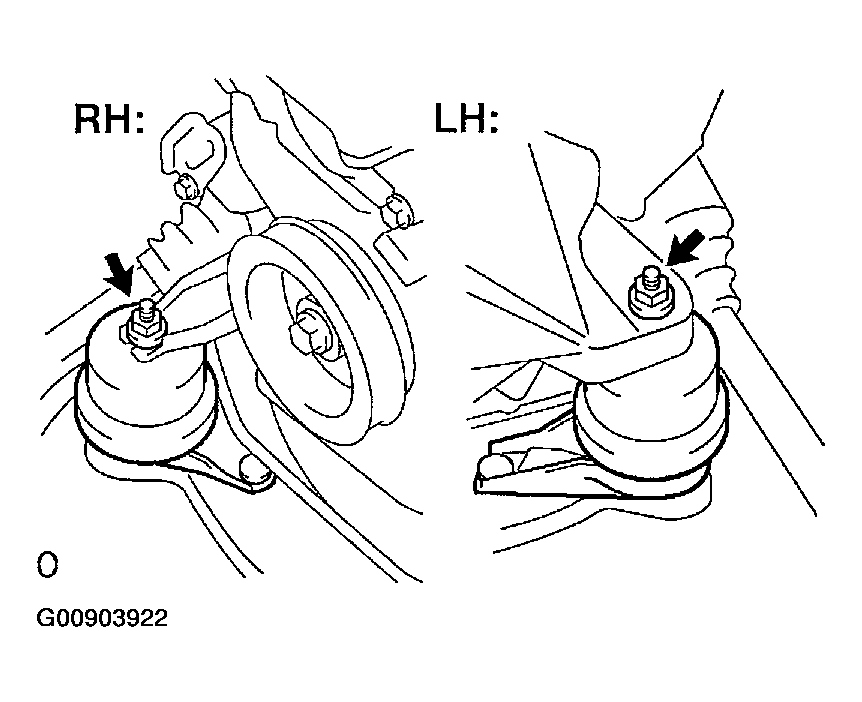

      Fig 19: Installing Engine Mounting Insulator RH And LH With Nuts
      G00903922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the engine mounting insulator FR with the bolt.

      Torque: 87 N.m (887 kgf.cm, 64 ft.lbf)

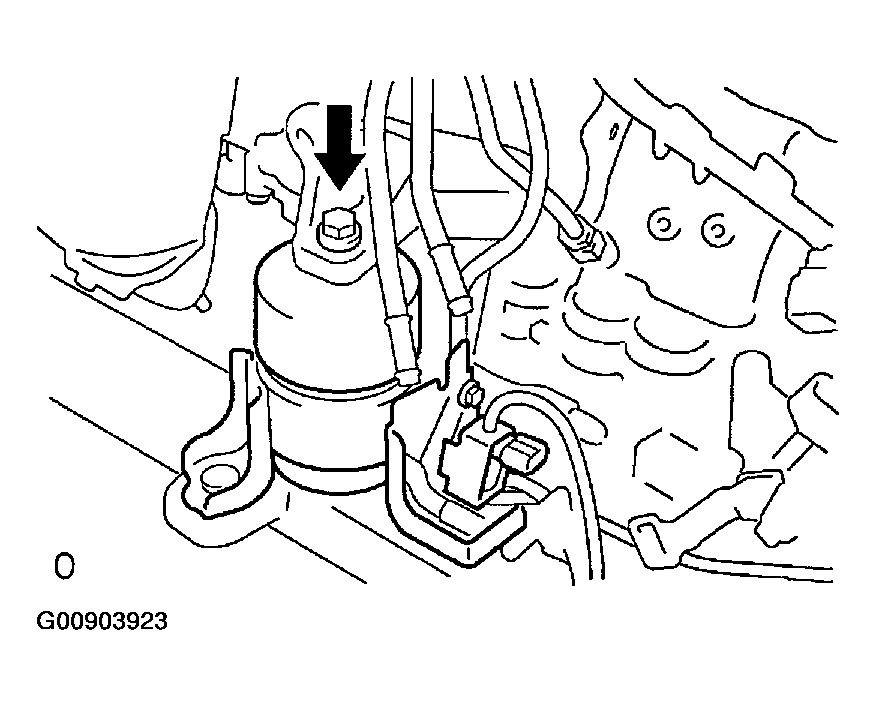

      Fig 20: Installing Engine Mounting Insulator FR With Bolt
      G00903923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  120. INSTALL VANE PUMP ASSY
    1. Temporarily tighten the bolt.
    2. Install the adjusting strut to the engine mounting bracket RH with the bolt.

      Torque: 43 N.m (439 kgf.cm, 32 ft.lbf)

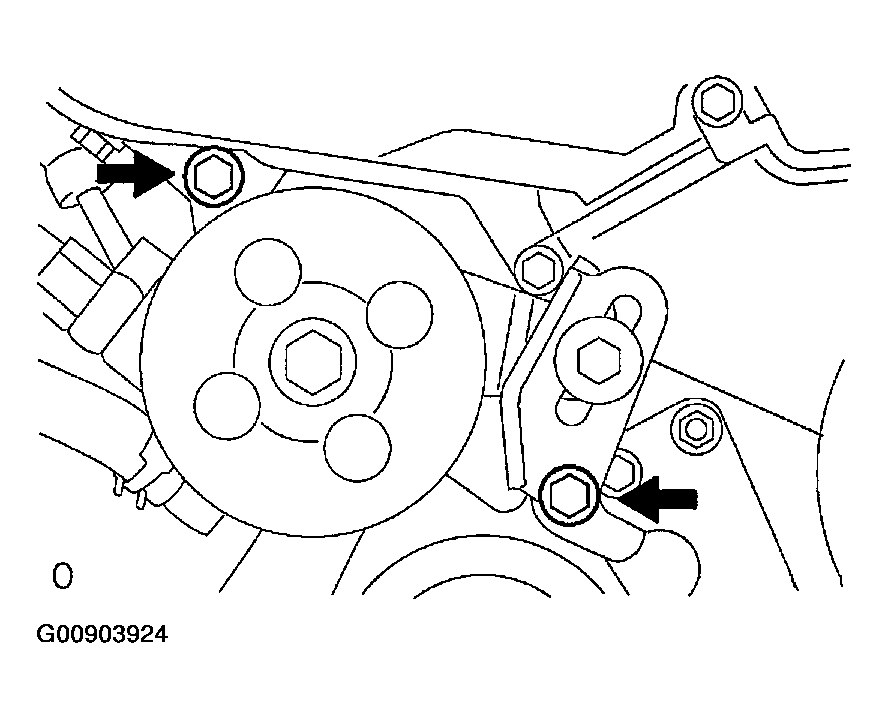

      Fig 21: Locating Vane Pump Bolt
      G00903924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the power steering pressure tube with the 2 nuts.

      Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)

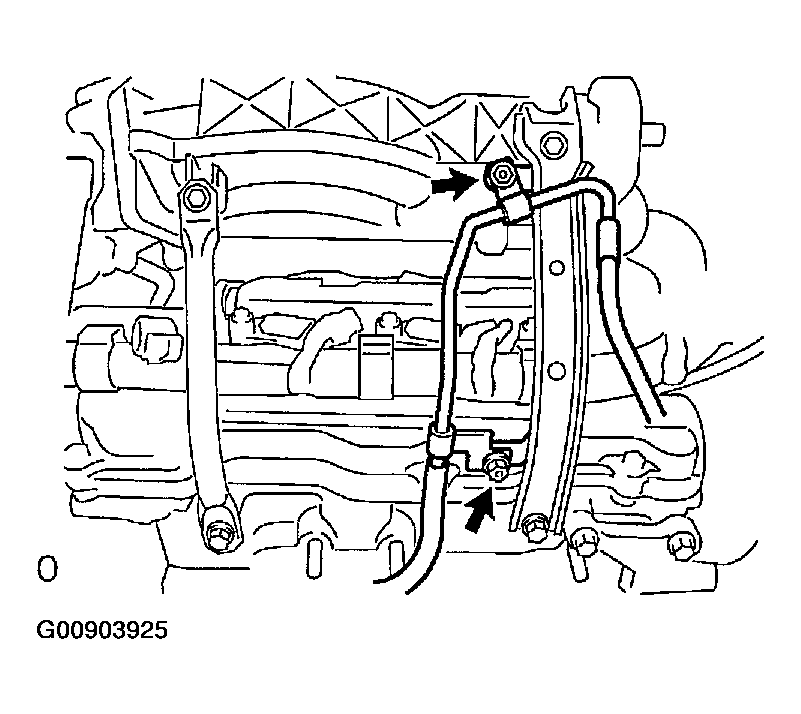

      Fig 22: Connecting Power Steering Pressure Tube With Nuts
      G00903925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  121. INSTALL VANE PUMP V BELT (See  REPLACEMENT   )
  122. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
    1. Set the engine assembly with the transaxle on the engine lifter.
    2. Install the engine assembly to the vehicle.
    3. Install the frame side rail plate RH and LH with the 4 bolts and 2 nuts.

      Torque:

      85 N.m (867 kgf.cm, 63 ft.lbf) for bolt A

      32 N.m (326 kgf.cm, 24 ft.lbf) for bolt B and nut

      Fig 23: Identifying Frame Side rail Plate
      G00903926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the front suspension member brace rear RH and LH with the 4 bolts and 2 nuts.

      Torque:

      85 N.m (867 kgf.cm, 63 ft.lbf) for bolt C

      32 N.m (326 kgf.cm, 24 ft.lbf) for bolt D and nut

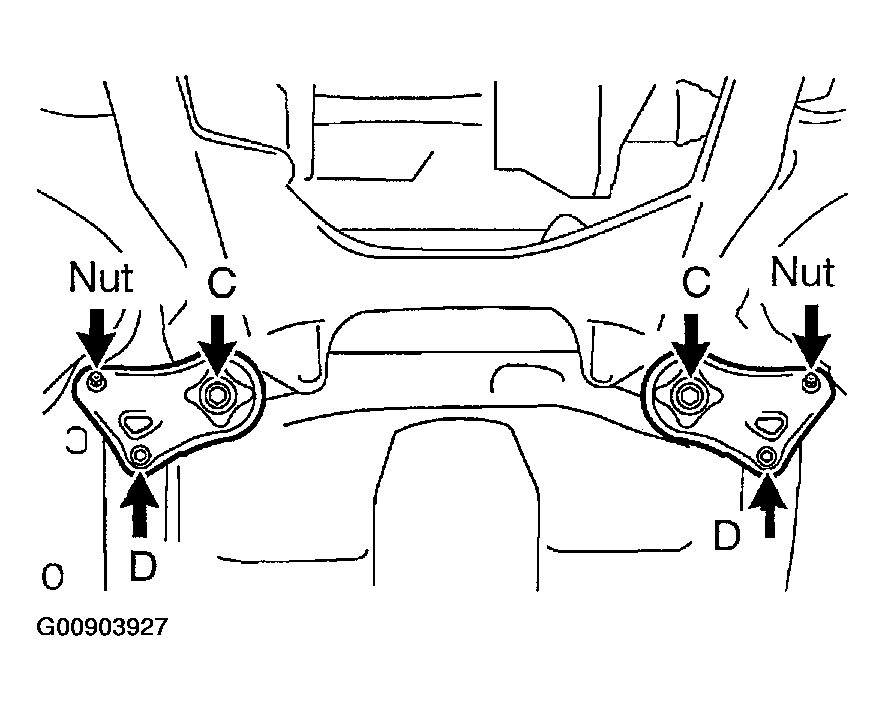

      Fig 24: Identifying Suspension Member Brace
      G00903927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  123. CONNECT STEERING INTERMEDIATE SHAFT ASSY (See  RACK & PINION POWER STEERING GEAR ASSY  )
  124. INSTALL FRONT AXLE ASSY LH (See  INSTALLATION  )
  125. INSTALL FRONT AXLE ASSY RH

    HINT:

    Perform the same procedure as above on the opposite side.

  126. INSTALL FRONT SUSPENSION ARM SUB-ASSY LOWER NO. 1 LH (See  INSTALLATION  )
  127. INSTALL FRONT SUSPENSION ARM SUB-ASSY LOWER NO. 1 RH

    HINT:

    Perform the same procedure as above on the opposite side.

  128. INSTALL TIE ROD ASSY LH (See  INSTALLATION  )
  129. INSTALL TIE ROD ASSY RH

    HINT:

    Perform the same procedure as above on the opposite side.

  130. INSTALL SPEED SENSOR FRONT LH (See  INSTALLATION  )
  131. INSTALL SPEED SENSOR FRONT RH

    HINT:

    Perform the same procedure as above on the opposite side.

  132. INSTALL FRONT AXLE HUB LH NUT (See  INSTALLATION  )
  133. INSTALL FRONT AXLE HUB RH NUT

    HINT:

    Perform the same procedure as above on the opposite side.

  134. INSTALL FRONT STABILIZER LINK ASSY LH (See  INSTALLATION  )
  135. INSTALL FRONT STABILIZER LINK ASSY RH

    HINT:

    Perform the same procedure as above on the opposite side.

  136. INSTALL EXHAUST PIPE ASSY FRONT (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  137. INSTALL EXHAUST PIPE NO. 1 SUPPORT BRACKET REAR (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  138. INSTALL EXHAUST PIPE NO. 1 SUPPORT BRACKET FRONT (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  139. CONNECT FUEL PIPE SUB-ASSY NO. 1 (See  FUEL SYSTEM (3MZ-FE)  )
  140. CONNECT TRANSMISSION CONTROL CABLE ASSY (See  TRANSMISSION CONTROL CABLE ASSY  )
  141. INSTALL COMPRESSOR AND MAGNETIC CLUTCH (See  REPLACEMENT  )
  142. INSTALL GENERATOR BELT ADJUSTING BAR (See  REPLACEMENT  )
  143. INSTALL GENERATOR BRACKET NO. 2 (See  REPLACEMENT   )
  144. INSTALL ENGINE MOUNTING STAY NO. 2 RH (See  REPLACEMENT   )
  145. INSTALL ENGINE MOVING CONTROL ROD (See  REPLACEMENT   )
  146. INSTALL GENERATOR ASSY (See  REMOVAL & INSTALLATION  )
  147. INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1 (See  REPLACEMENT   )
  148. INSPECT DRIVE BELT DEFLECTION AND TENSION (See  INSPECTION   )

    Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

  149. INSTALL AIR CLEANER INLET NO. 1 (See  REMOVAL & INSTALLATION  )
  150. INSTALL AIR CLEANER BRACKET (See  REMOVAL & INSTALLATION  )
  151. INSTALL AIR CLEANER ASSY (See  REMOVAL & INSTALLATION  )
  152. INSTALL AIR CLEANER INLET ASSY (See  REMOVAL & INSTALLATION  )
  153. CHECK CONNECTION OF VACUUM HOSE

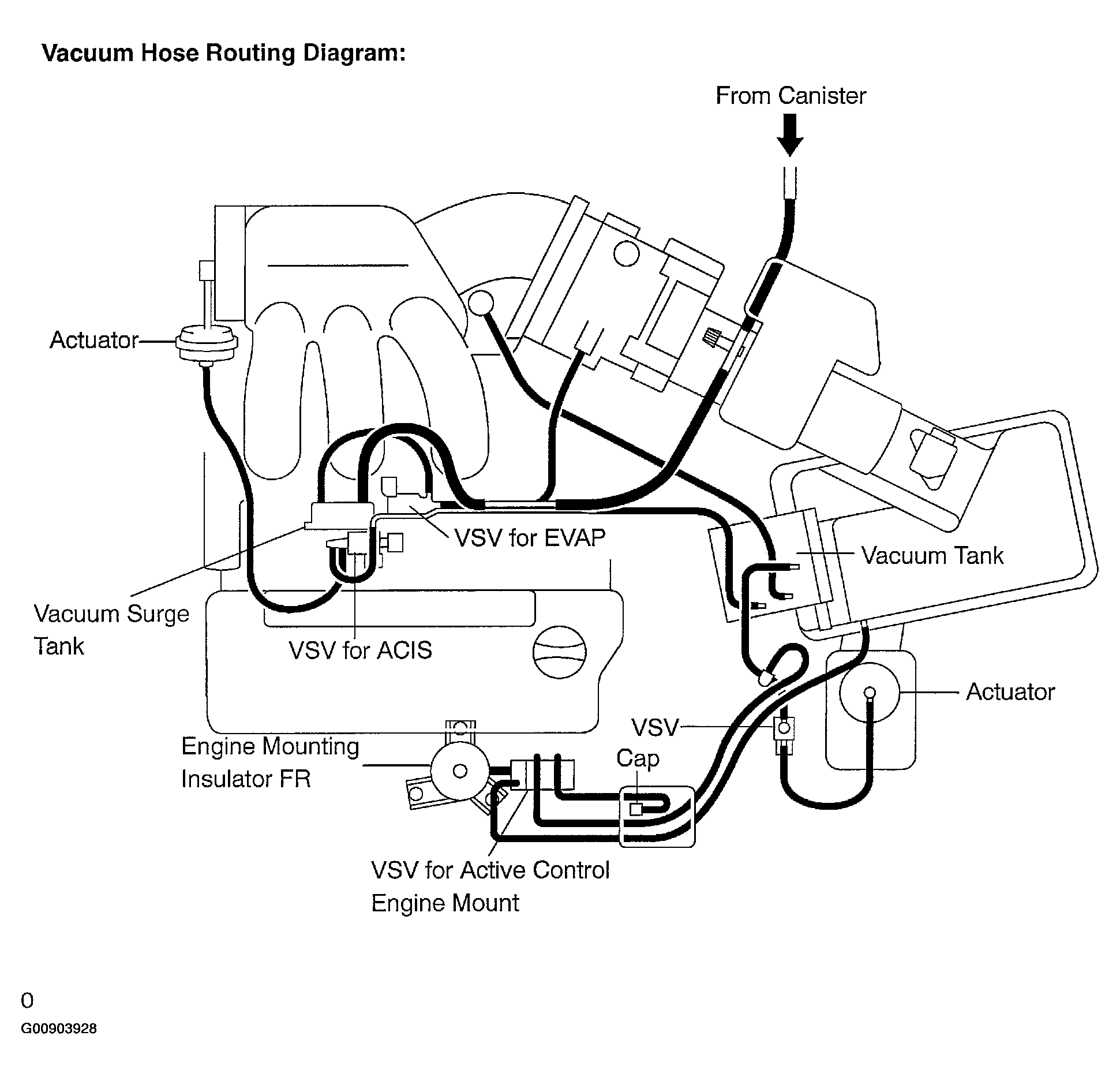

    Fig 25: Vacuum Hose Diagram
    G00903928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  154. INSTALL V-BANK COVER SUB-ASSY (See  REPLACEMENT  )
  155. INSTALL FRONT WHEELS (See  REPLACEMENT   )
  156. ADD AUTOMATIC TRANSAXLE FLUID
  157. ADD ENGINE OIL (See  REPLACEMENT  )
  158. ADD COOLANT (See  REPLACEMENT  )
  159. ADD POWER STEERING FLUID
  160. BLEED POWER STEERING FLUID
  161. INSPECT AUTOMATIC TRANSAXLE FLUID (See  ON-VEHICLE INSPECTION  )
  162. CHECK FOR ENGINE OIL LEAKS
  163. CHECK FOR ENGINE COOLANT LEAKS (See  INSPECTION  )
  164. CHECK POWER STEERING FLUID LEAKAGE
  165. INSPECT FOR FUEL LEAKS
  166. CHECK FOR EXHAUST GAS LEAKS
  167. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (See  FRONT WHEEL ALIGNMENT  )
  168. INSPECT STEERING WHEEL CENTER POINT
  169. INSPECT IGNITION TIMING (See  INSPECTION   )

    SST 09843-18040

  170. INSPECT ENGINE IDLE SPEED (See  INSPECTION   )
  171. INSPECT CO/HC (See  INSPECTION   )
  172. CHECK ABS SPEED SENSOR SIGNAL (See  PRE-CHECK  ,  PRE-CHECK  )
  173. SYSTEM INITIALIZATION (See  PRECAUTION  )
scientia non olet · About LEMON Manuals
