Drive Belt (3MZ-FE): Replacement

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT WHEEL RH
REMOVE FENDER APRON SEAL RH
REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1
1. Loosen bolts A and B.
2. Loosen the adjusting bolt C, then remove the V-ribbed belt.

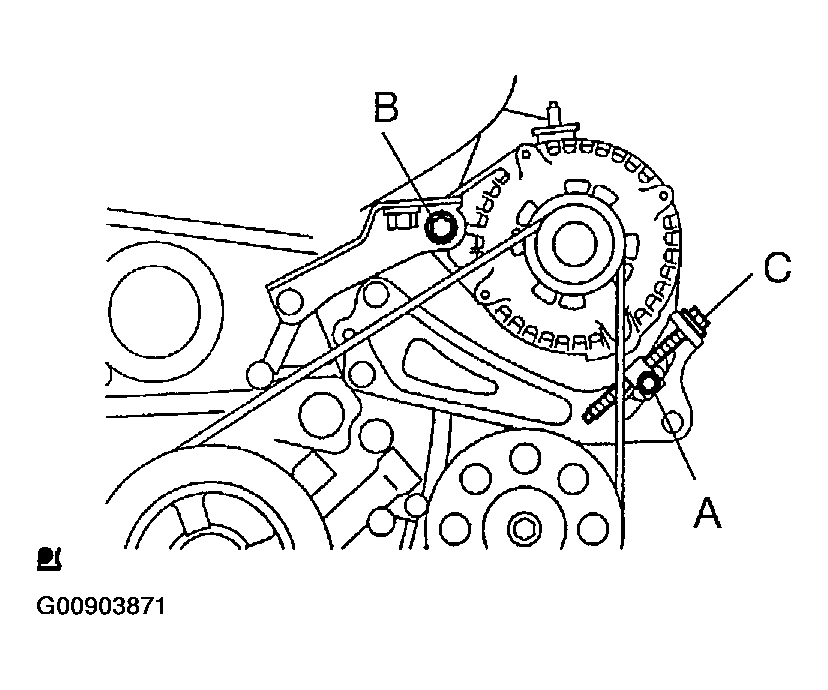

  Fig 1: Locating Bolts (Drive Belt)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VANE PUMP V BELT
1. Loosen bolts A and B, then remove the V-ribbed belt.

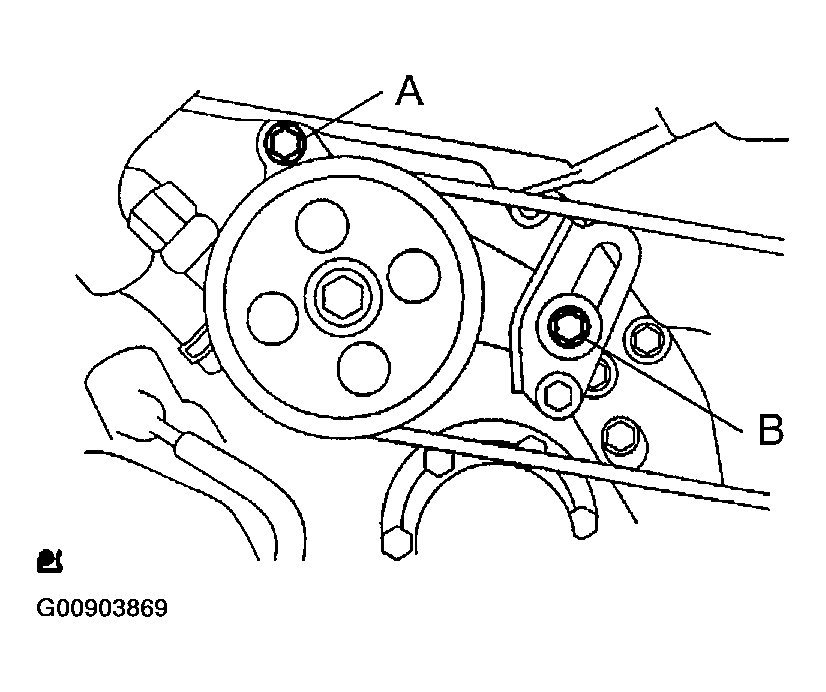

  Fig 2: Identifying Vane Pump Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VANE PUMP V BELT
1. Install the V-ribbed belt on each pulley.
2. Using a bar, adjust the V-ribbed belt tension, then tighten bolt B.
  torque: 43 N.m (439 kgf.cm, 32 ft.lbf)
3. Tighten bolt A.
  torque: 43 N.m (439 kgf.cm, 32 ft.lbf)
INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1
1. Install the V-ribbed belt on each pulley.
2. Tighten the adjusting bolt, C, then adjust the V-ribbed belt tension.
3. First tighten bolt, A, the tighten bolt B.
  Torque:

  18 N.m (178 kgf.cm, 13 ft.lbf) for bolt A

  58 N.m (591 kgf.cm, 43 ft.lbf) for bolt B

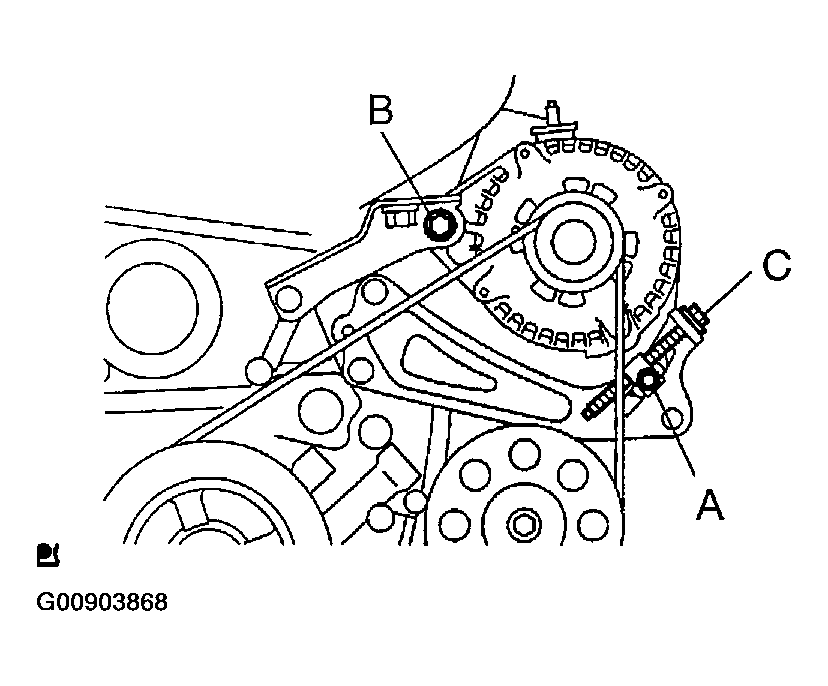

  Fig 4: Installing V-Ribbed Belt On Pulley
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT DRIVE BELT DEFLECTION AND TENSION (See INSPECTION )
INSTALL FRONT WHEEL RH
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
