Timing Belt (3MZ-FE): Replacement

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT WHEEL RH
  2. REMOVE FRONT FENDER APRON SEAL RH
  3. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1 (See  REPLACEMENT   )
  4. REMOVE VANE PUMP V BELT (See  REPLACEMENT   )
  5. REMOVE ENGINE MOVING CONTROL ROD
    1. Remove the reserve tank cap.
    2. Remove the 4 bolts, engine moving control rod and bracket.

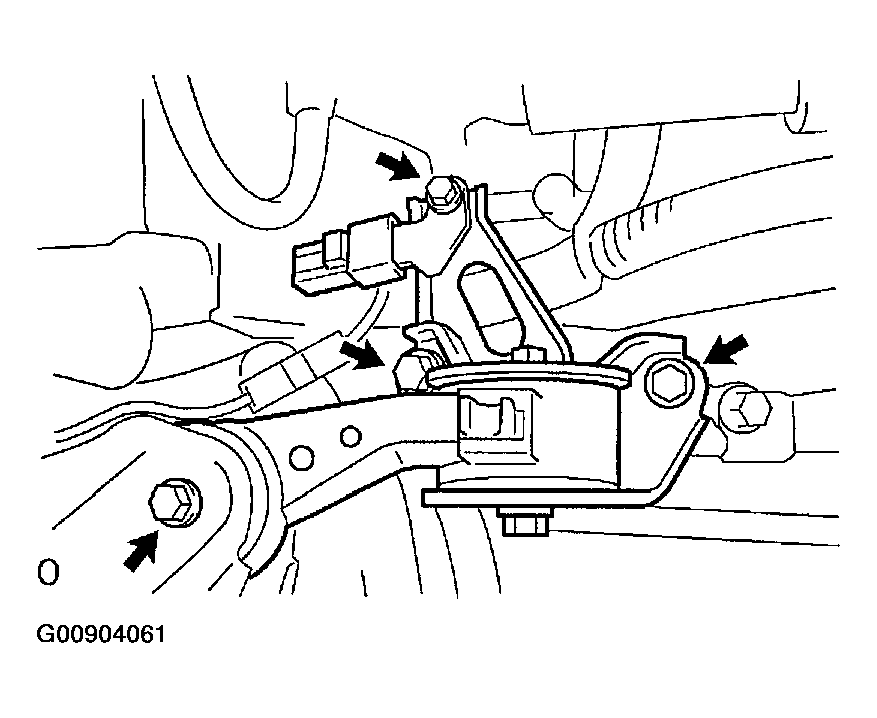

      Fig 1: Removing Engine Moving Control Rod
      G00904061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE ENGINE MOUNTING STAY NO. 2 RH
    1. Remove the bolt, engine mounting stay No. 2 and engine mounting bracket No. 2.

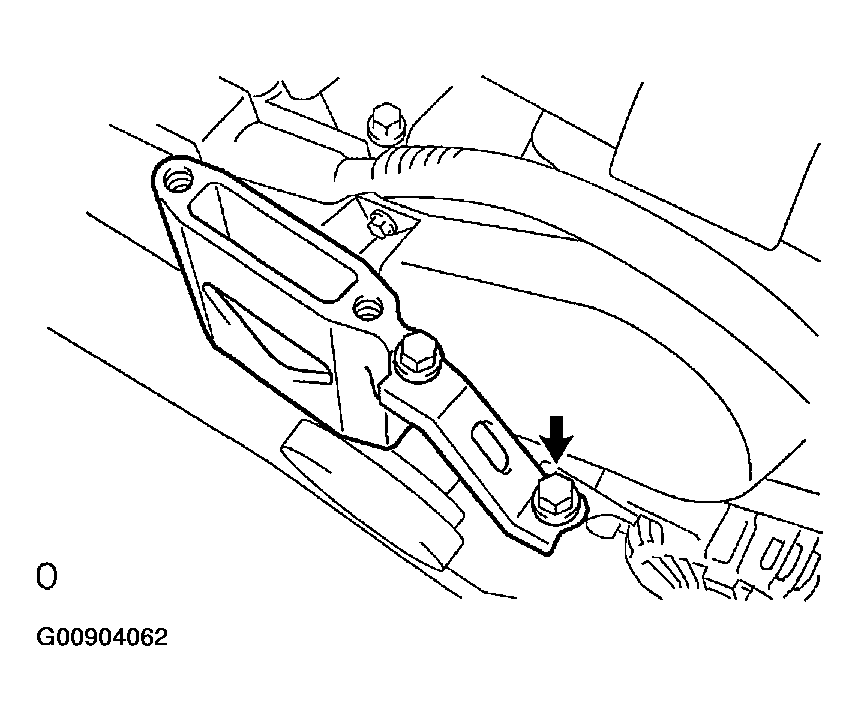

      Fig 2: Removing Engine Mounting Stay No. 2 RH
      G00904062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE GENERATOR BRACKET NO. 2
    1. Remove the nut and generator bracket.

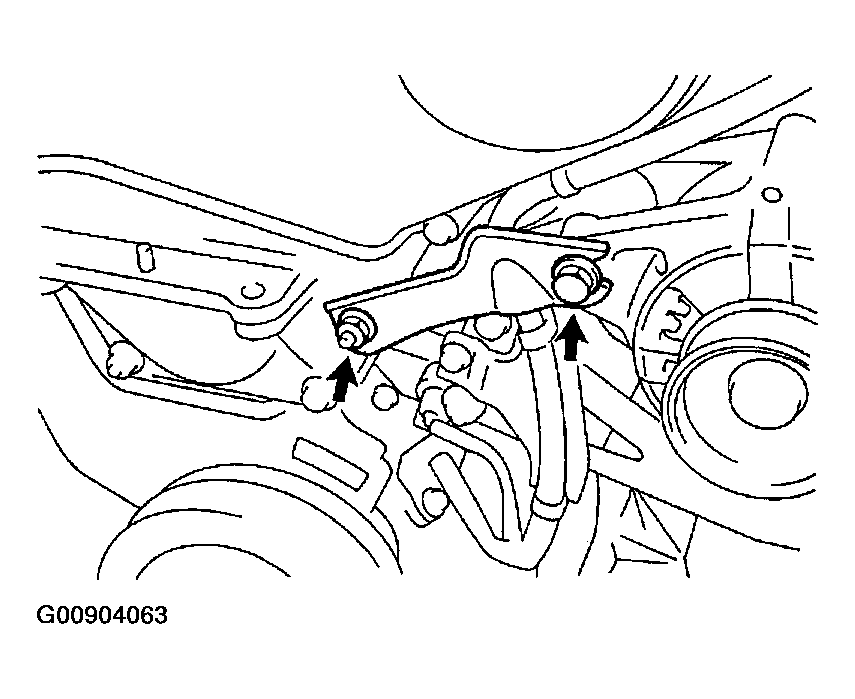

      Fig 3: Removing Generator Bracket No. 2
      G00904063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE CRANKSHAFT PULLEY
    1. Using SST, loosen the pulley bolt.

      SST 09213-54015 (91651-60855), 09330-00021

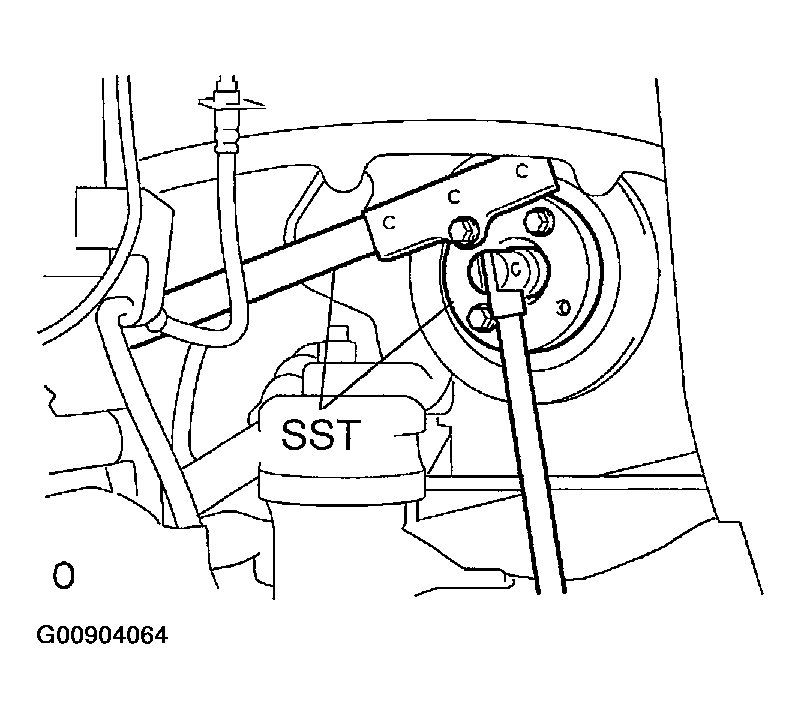

      Fig 4: Removing Crankshaft Pulley
      G00904064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and the pulley bolt, remove the pulley.

      SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05031)

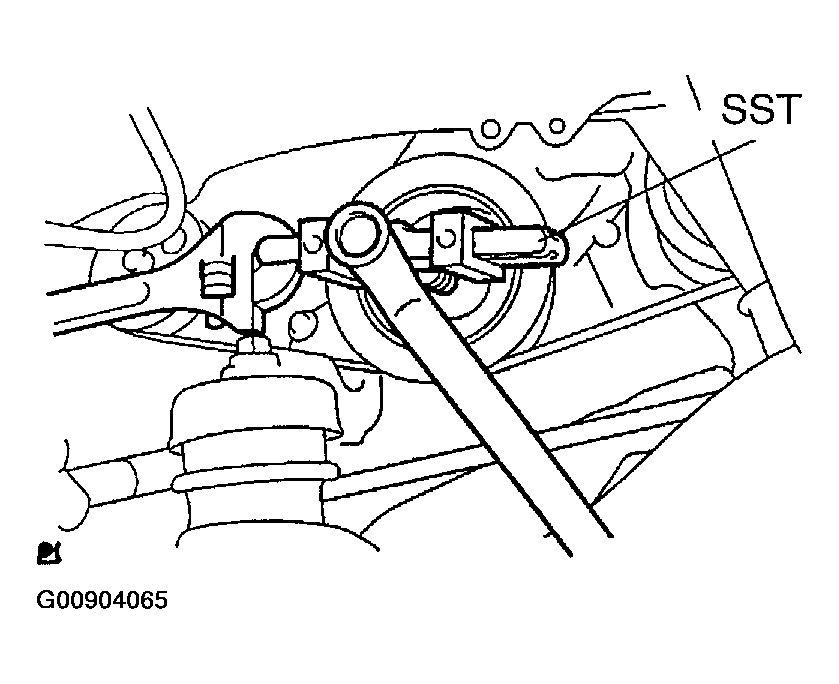

      Fig 5: Remove Pulley Using SST
      G00904065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Before using SST, apply lubricating oil to the threads and tip of the center bolt 150.
  9. REMOVE TIMING BELT NO. 1 COVER
  10. REMOVE TIMING BELT NO. 2 COVER
    1. Disconnect the 2 engine wire protector clamps from the timing belt No. 3 cover.
    2. Remove the 5 bolts and timing belt cover.

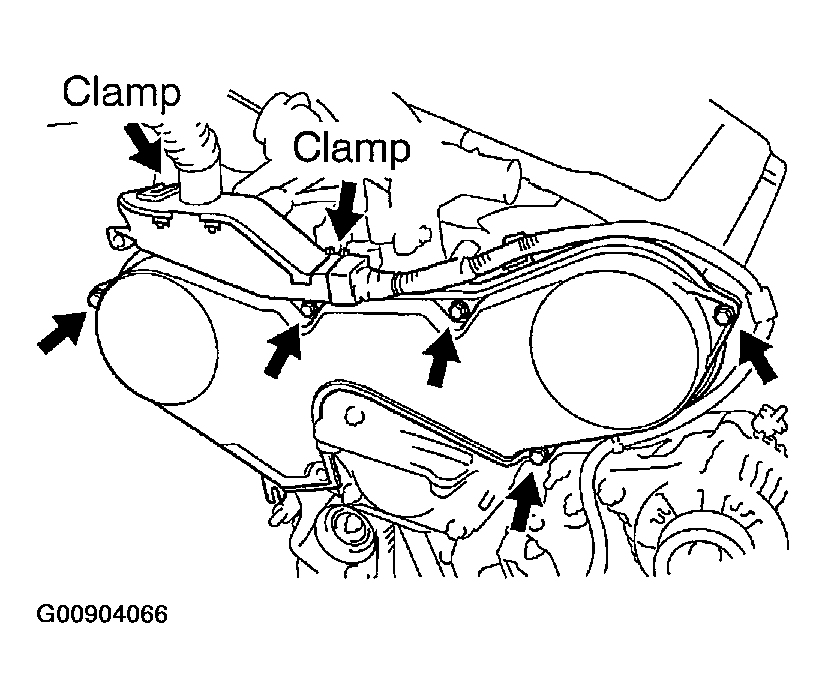

      Fig 6: Removing Timing Belt No. 2 Cover
      G00904066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE ENGINE MOUNTING BRACKET RH
    1. Remove the 2 bolts, nut and engine mounting bracket RH.

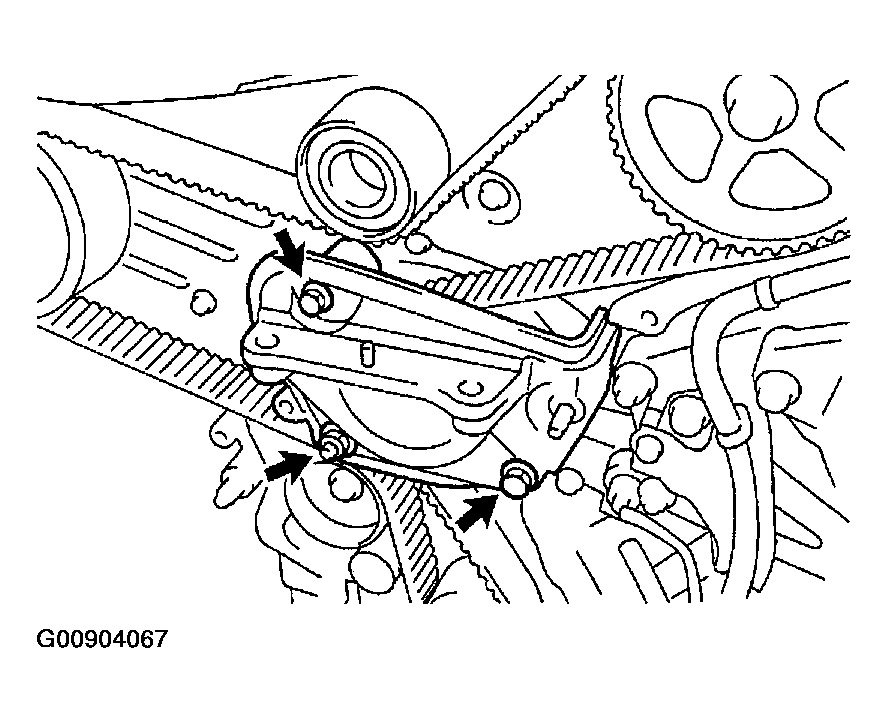

      Fig 7: Removing Engine Mounting Bracket RH
      G00904067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE TIMING BELT GUIDE NO. 2
  13. REMOVE TIMING BELT
    1. Set the No. 1 cylinder to the TDC/compression.
      1. Temporarily install the crankshaft pulley bolt and washer to the crankshaft.
      2. Turn the crankshaft clockwise, then align the timing mark of the crankshaft timing pulley with the oil pump body.

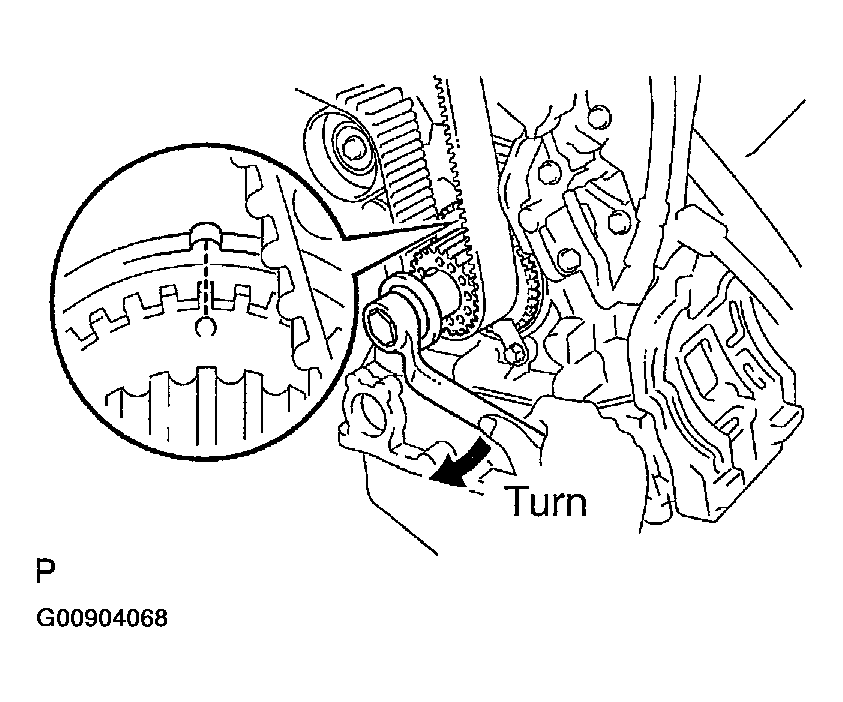

        Fig 8: Turning Crankshaft Clockwise
        G00904068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Check that the timing marks of the camshaft timing pulleys and the timing belt No. 3 cover are aligned.

        If not, turn the crankshaft by 1 revolution (360°).

      4. Remove the crankshaft pulley bolt.

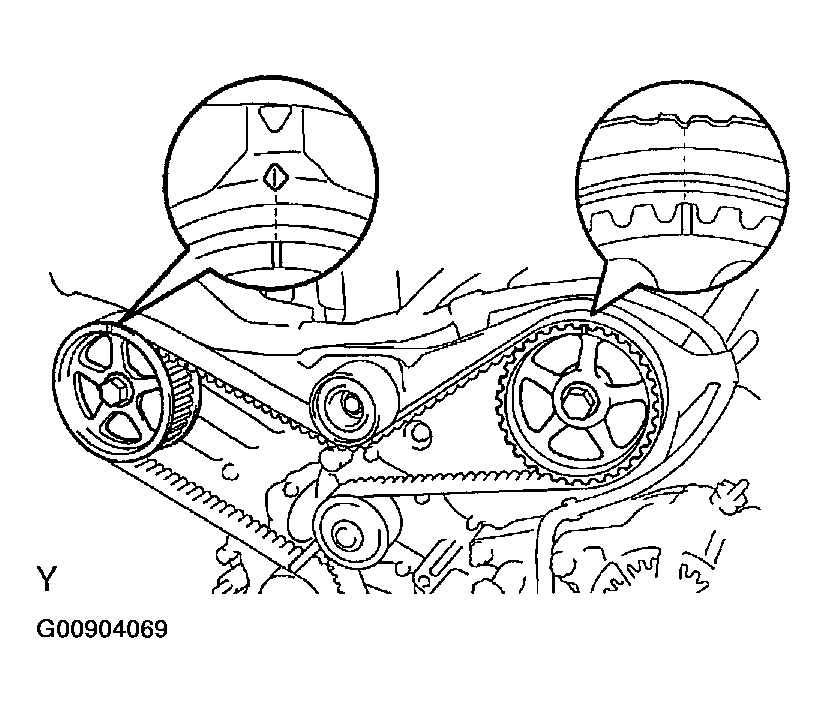

        Fig 9: Checking Timing Marks Of Camshaft Timing Pulleys
        G00904069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. If reusing the timing belt, check that there are 3 installation marks on the timing belt as shown in the illustration.
      1. If the installation marks have disappeared, put new installation marks on the timing belt before removing.

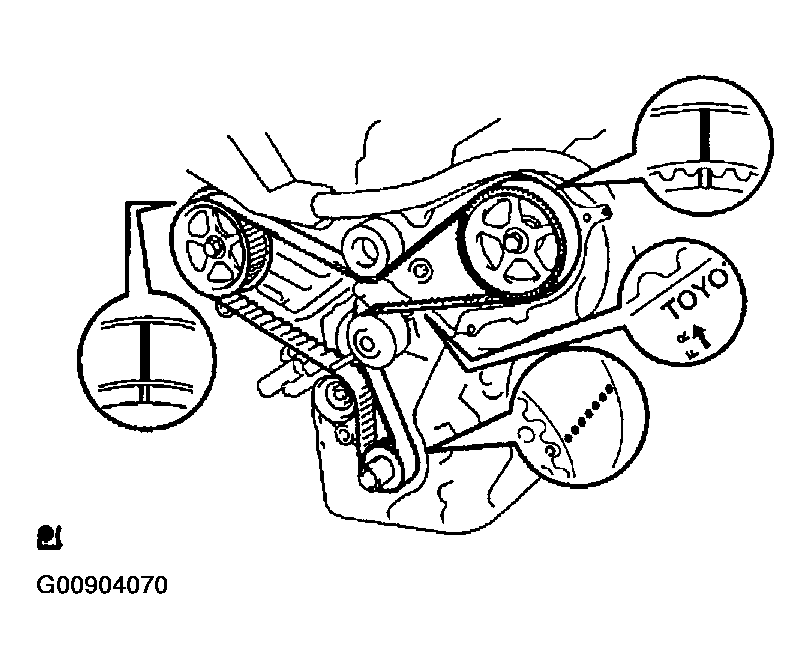

        Fig 10: Identifying Installation Mark
        G00904070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Set the No. 1 cylinder to approximately 60° BTDC/compression.
      1. Turn the crankshaft counterclockwise by approximately 60°.

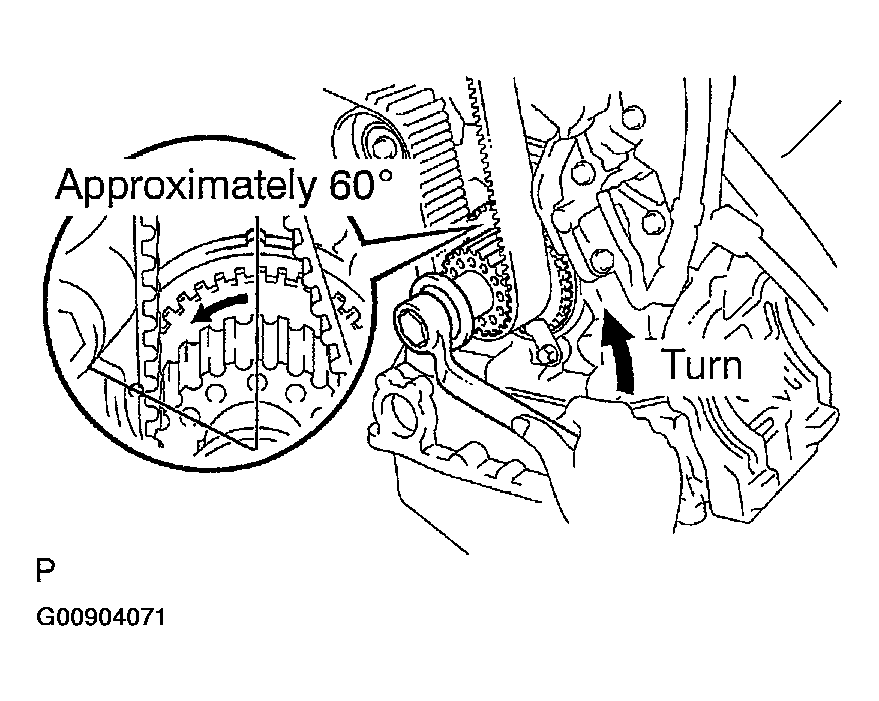

        Fig 11: Turning Crankshaft Counterclockwise By 60deg
        G00904071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE: If the timing belt is disengaged, having the crankshaft pulley set at the wrong angle can cause contact of the piston head with the valve head when removing the camshaft timing pulley and camshaft, which causes damage. So always set the crankshaft pulley at the correct angle.
    4. Remove the timing belt tensioner.
      NOTE: Do not reinstall the tensioner with its plunger extended.
    5. Remove the timing belt in this order.

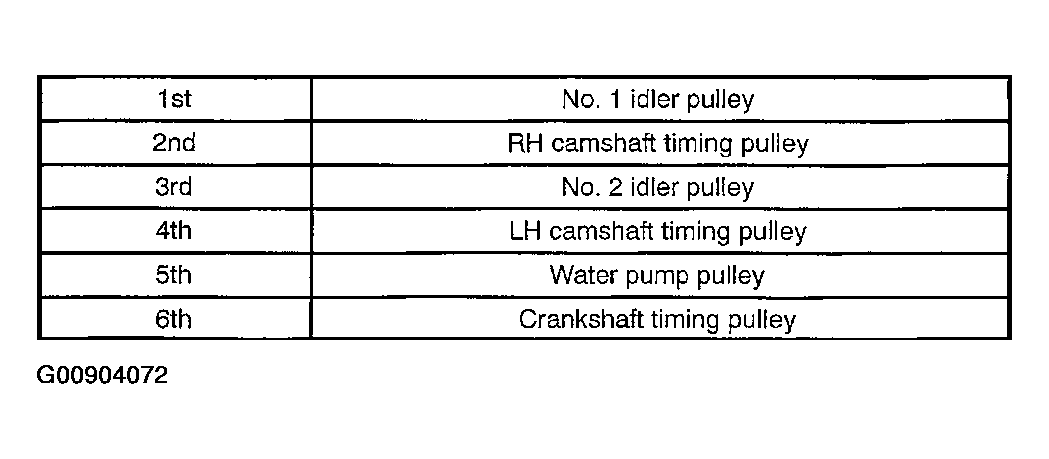

      Fig 12: Timing Belt Table Removal Sequence Table
      G00904072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 13: Timing Belt Removal Sequence Diagram
      G00904073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSPECT TIMING BELT
    NOTE:
    • Do not bend, twist or turn the timing belt inside out.
    • Do not allow contact of the timing belt with oil, water or steam.
    • Do not use the timing belt tension when installing or removing the mounting bolt of the camshaft timing pulley.

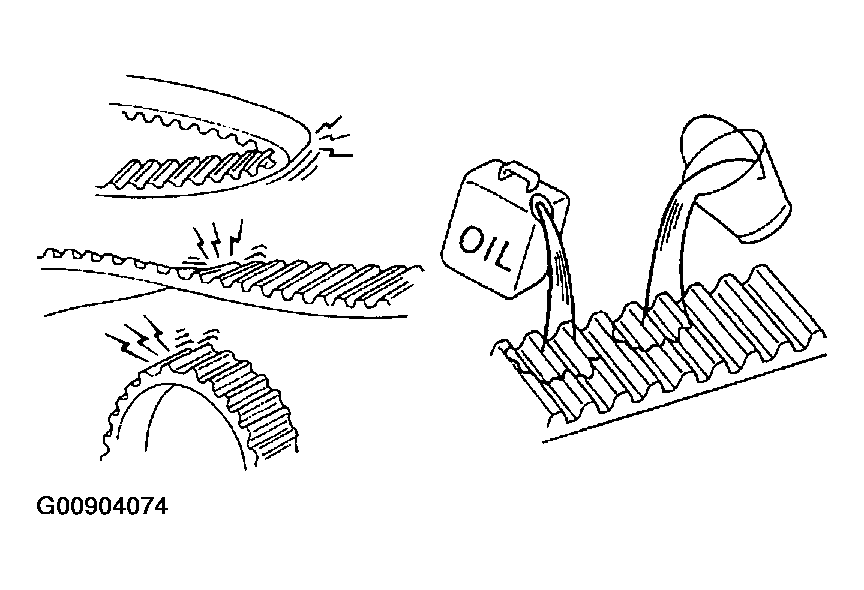

    Fig 14: Timing Belt Inspection Points
    G00904074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Check the belt for any defects as shown in the illustrations. Also, check these points below.

    1. If the belt tears in a short time:
      • Check if the belt is installed properly.
      • Check if the timing cover gasket is damaged and if it is installed properly.
    2. If the belt teeth are cracked or damaged, check if either camshaft is locked.
    3. If there is noticeable wear or cracks on the belt face, check if there are nicks on the side of the idler pulley lock and water pump.
    4. If there is wear or damage on only one side of the belt, check the belt guide and alignment of each pulley.
    5. If there is noticeable wear on the belt teeth:
      • Check the timing cover for damage.
      • Check that the gasket has been installed correctly.
      • Check for foreign objects on the pulley teeth.

      If there is any doubt about the belt condition, replace the timing belt.

  15. INSTALL TIMING BELT
    1. Remove any oil or water on the pulleys, then keep them clean.
      NOTE:
      • If there is a trace of water and/or oil on the timing belt, repair the leakage and install a new timing belt.
      • Only wipe the pulleys; do not use any cleaning agent.
    2. Check the idler pulleys.
      1. Check that the idler pulley turns smoothly.
      2. Visually check the seal portion of the idler pulley for oil leakage.
    3. Check the water pump.
      1. Turn the pulley, then check that water pump bearing moves smoothly and does not make a noise.
      2. Visually check the drain hole for coolant leakage.
    4. Temporarily install the crankshaft pulley bolt and washer to the crankshaft.
    5. Turn the crankshaft counterclockwise by approximately 60°.
      NOTE: To prevent contact of the piston head with the valve head, set the crankshaft pulley at the 60° BTDC/compression position.

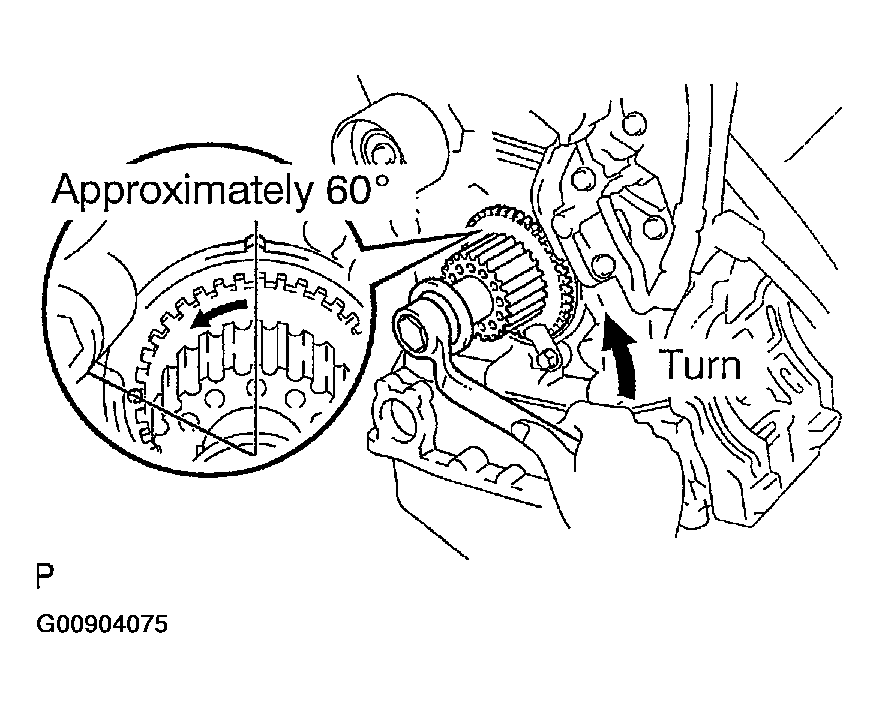

      Fig 15: Turning Crankshaft Counterclockwise By 60deg
      G00904075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Using SST, turn the timing pulleys, then align the timing marks of the timing pulleys with the timing belt No. 3 cover.

      SST 09960-10010 (09962-01000, 09963-01000)

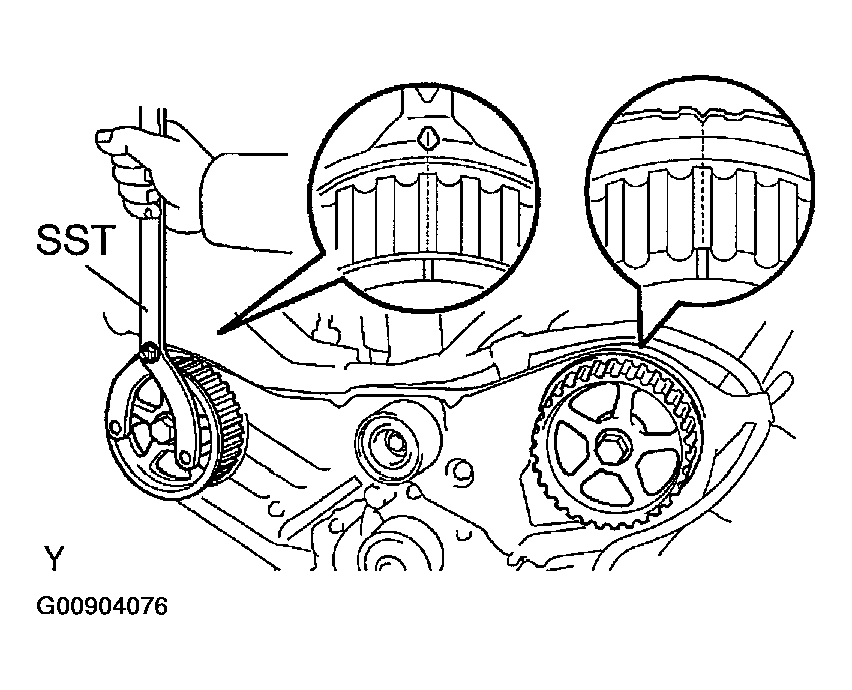

      Fig 16: Turning Timing Pulleys Using SST
      G00904076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Turn the crankshaft, then align the timing mark of the crankshaft timing pulley with the oil pump body.

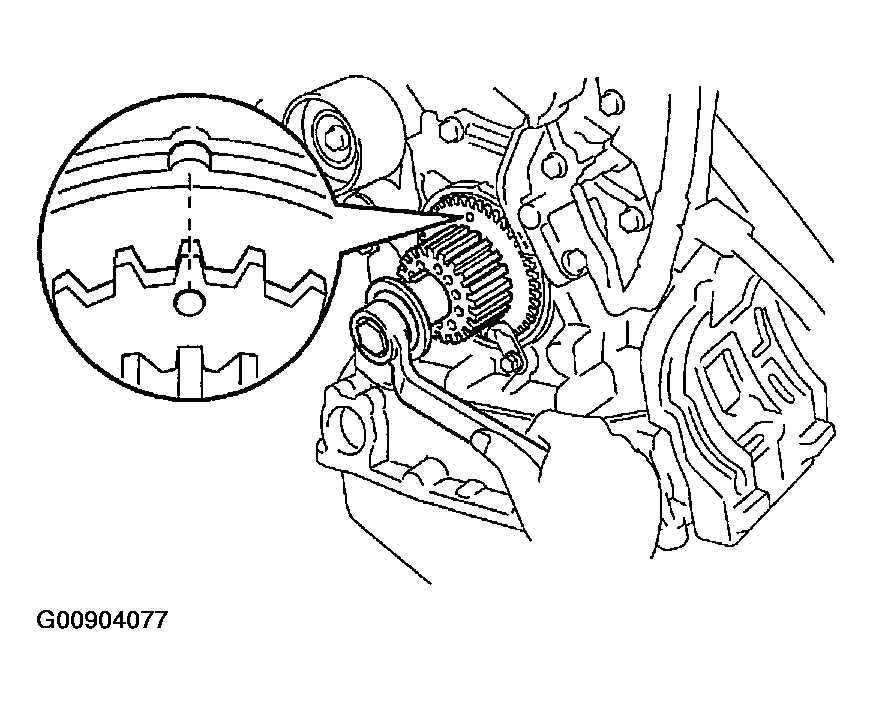

      Fig 17: Aligning Timing Mark Of Crankshaft Timing Pulley With Oil Pump Body
      G00904077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Align the front mark on the timing belt so it faces forward.
    9. Align the installation mark on the timing belt with the timing mark of the crankshaft timing pulley.
    10. Align the installation marks on the timing belt with the timing marks of the camshaft timing pulleys.

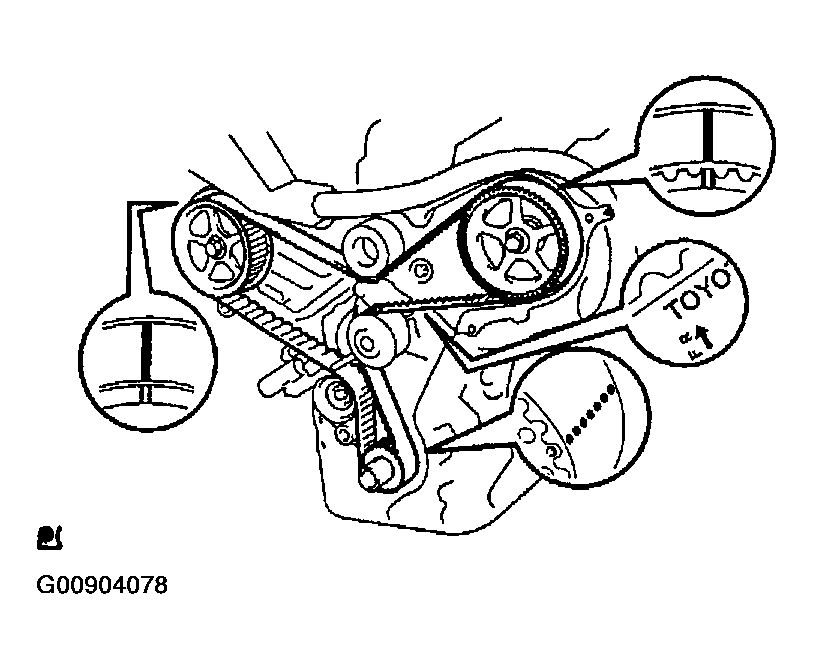

      Fig 18: Aligning Front Mark
      G00904078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Install the timing belt in this order.

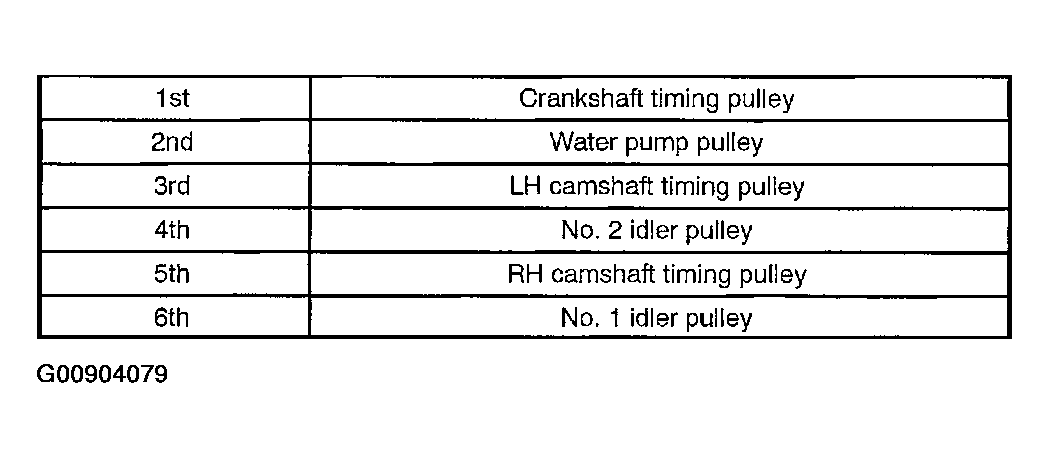

      Fig 19: Timing Belt Installation Sequence Table
      G00904079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

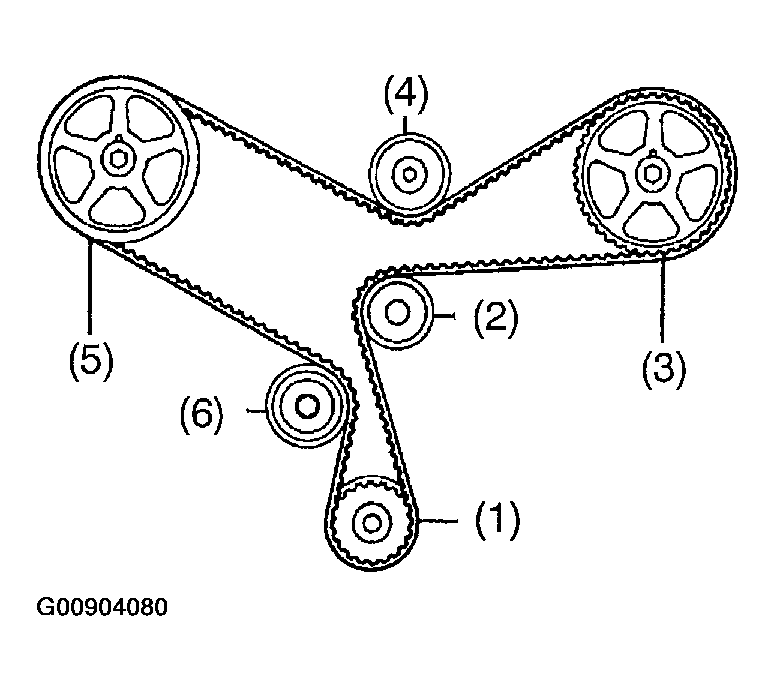

      Fig 20: Timing Belt Installation Sequence Diagram
      G00904080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL TIMING BELT TENSIONER ASSY
    1. Set the timing belt tensioner upright on the press.
    2. Slowly press in the push rod.
      NOTE: Do not apply pressure more than 9.8 kN (1,000 kgf, 2,205 lbf) to the rod.

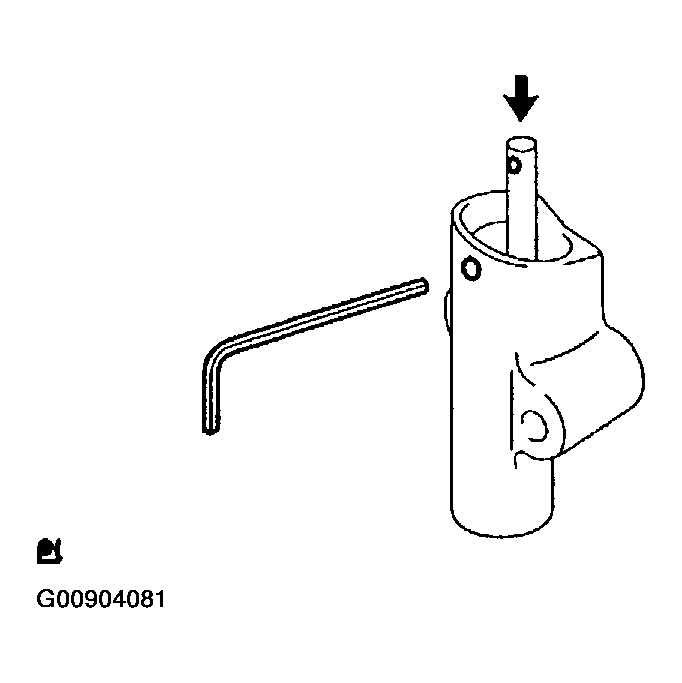

      Fig 21: Aligning Holes Of Push Rod And Housing
      G00904081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Align the holes of the push rod and housing, then pass a 1.5 mm hexagon wrench through the holes to keep the setting position of the push rod.
    4. Release the press.
    5. Temporarily install the tensioner with the 2 bolts. Alternately tighten the 2 bolts.

      Torque: 27 N.m (280 kgf.cm, 20 ft.lbf)

      NOTE: Be sure to tighten the bolts uniformly. Installing the tensioner at an angle may cause failure of its proper operation.
    6. Remove the 1.5 mm hexagon wrench from the tensioner.
    7. Turn the crankshaft 2 revolutions slowly, then align the timing mark of the crankshaft timing pulley with the oil pump body.
      NOTE: Always turn the crankshaft clockwise.

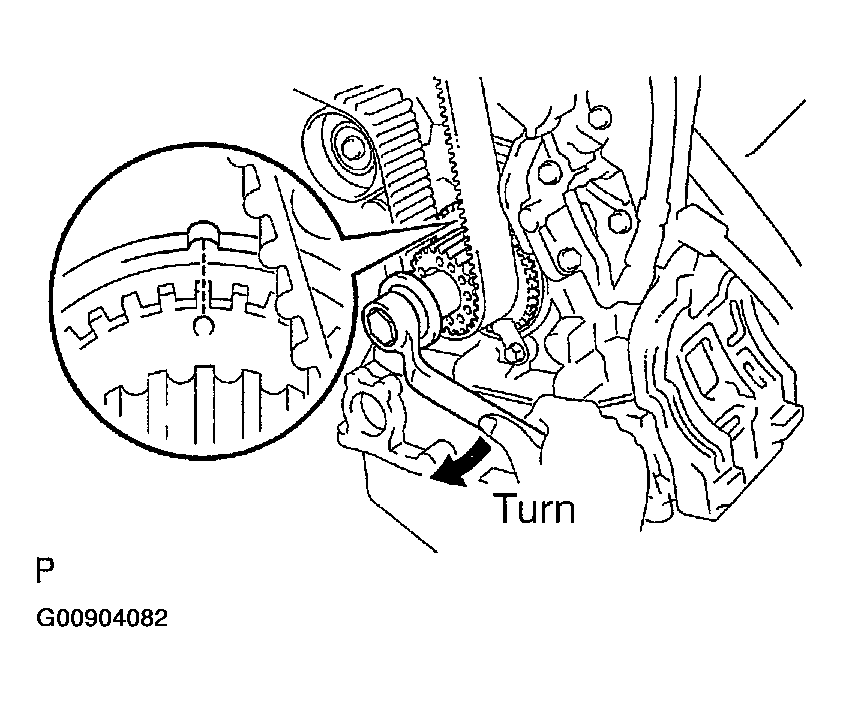

      Fig 22: Turning Crankshaft
      G00904082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Check that the timing marks of the RH and LH timing pulleys are aligned with the timing marks of the timing belt No. 3 cover as shown in the illustration.

      If the marks are not aligned, remove the timing belt and reinstall it.

    9. Remove the crankshaft pulley bolt.

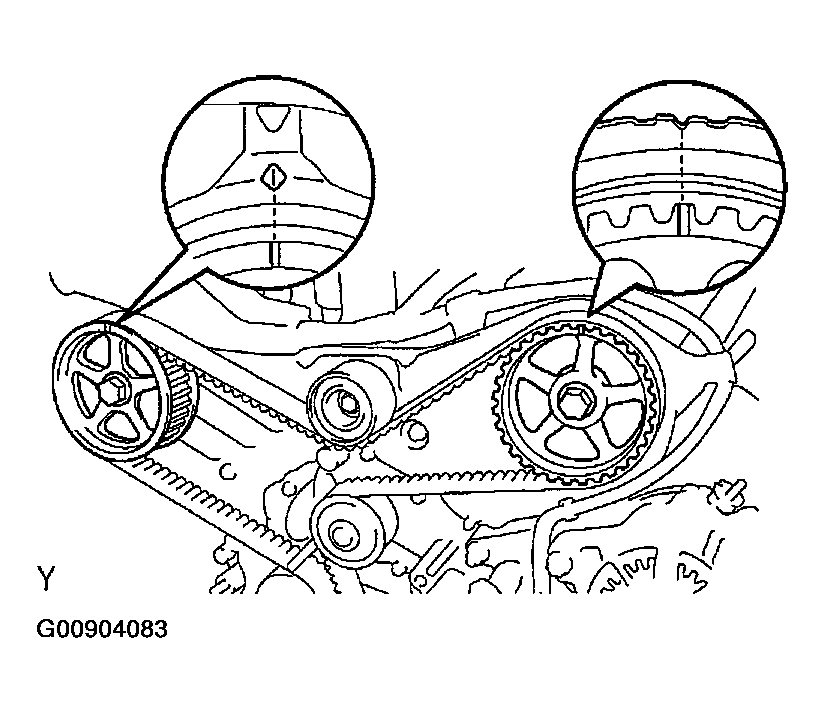

      Fig 23: Identifying Timing Marks Of RH And LH Timing Pulleys
      G00904083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL TIMING BELT GUIDE NO. 2
    1. Install the timing belt guide with the cup side facing the engine front.

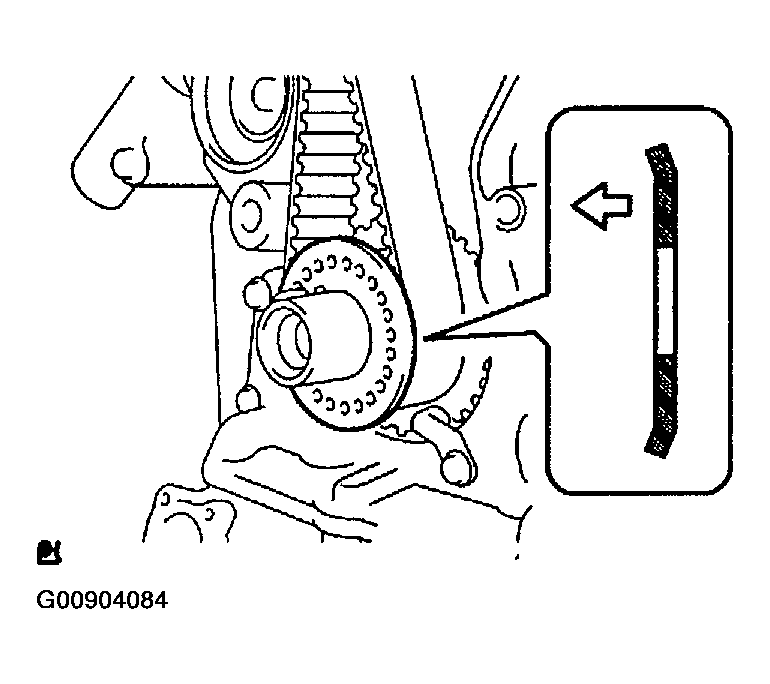

      Fig 24: Installing Timing Belt Guide No. 2
      G00904084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL ENGINE MOUNTING BRACKET RH
    1. Install the engine mounting bracket RH with the 2 bolts and nut.

      Torque: 28 N.m (286 kgf.cm, 21 ft.lbf)

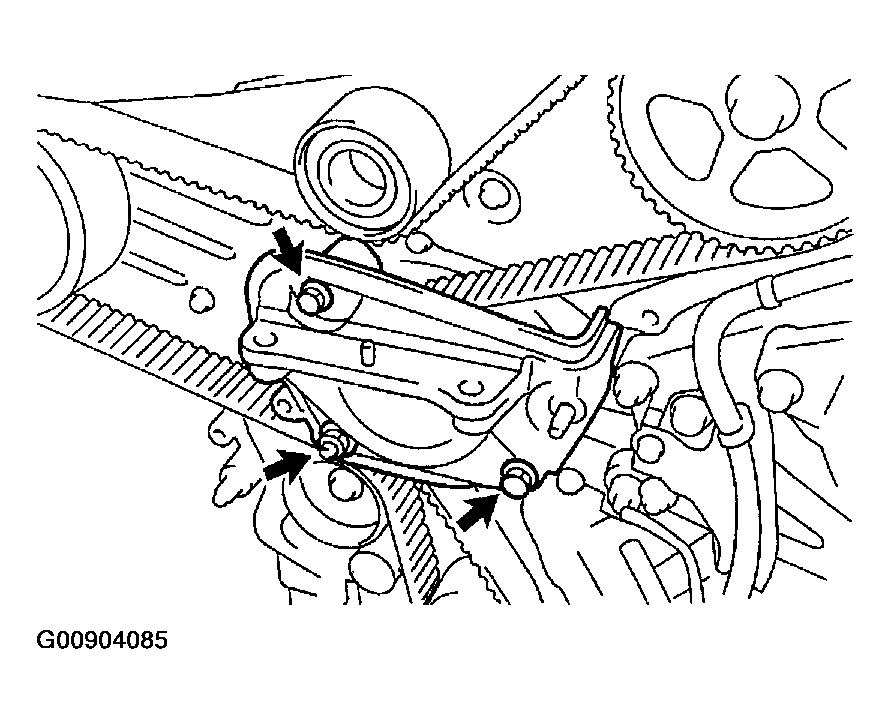

      Fig 25: Identifying Engine Mounting Bolt
      G00904085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL TIMING BELT NO. 2 COVER
    1. Visually check for cracks and breaks on the gasket of the timing belt cover.

      If there is a trace of water intrusion when checking visually, replace the timing belt cover.

    2. Install the timing belt cover.

      Torque: 8.5 N.m (87 kgf.cm, 75 in.lbf)

  20. INSTALL TIMING BELT NO. 1 COVER
    1. Visually check for cracks and breaks on the gasket of the timing belt cover.

      If there is a trace of water intrusion when checking visually, replace the timing belt cover.

    2. Install the timing belt cover.

      Torque: 8.5 N.m (87 kgf.cm, 75 in.lbf)

    3. Install the 2 engine wire protector clamps to the timing belt No. 3 cover.
  21. INSTALL CRANKSHAFT PULLEY
    1. Align the keyway of the pulley with the key located on the crankshaft, then slide the pulley into place.
    2. Using SST, install the pulley bolt.

      SST 09213-54015 (91651-60855), 09330-00021

      Torque: 220 N.m (2250 kgf.cm, 162 ft.lbf)

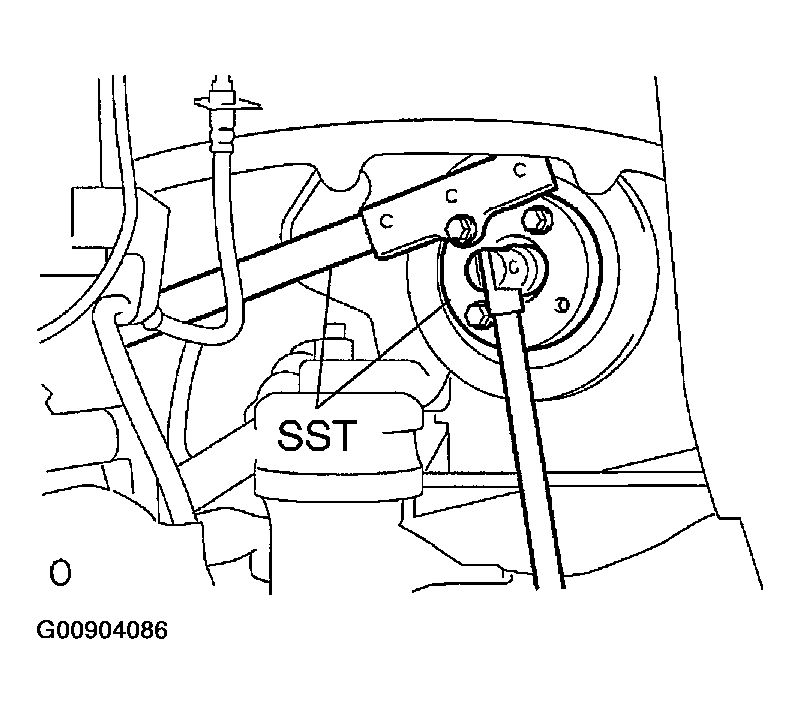

      Fig 26: Installing Pulley Bolt Using SST
      G00904086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL GENERATOR BRACKET NO. 2

    Torque: 28 N.m (286 kgf.cm, 21 ft.lbf)

  23. INSTALL ENGINE MOUNTING STAY NO. 2 RH
    1. Install the engine mounting stay No. 2 and engine mounting bracket No. 2 with the bolt.

      Torque: 64 N.m (653 kgf.cm, 47 ft.lbf)

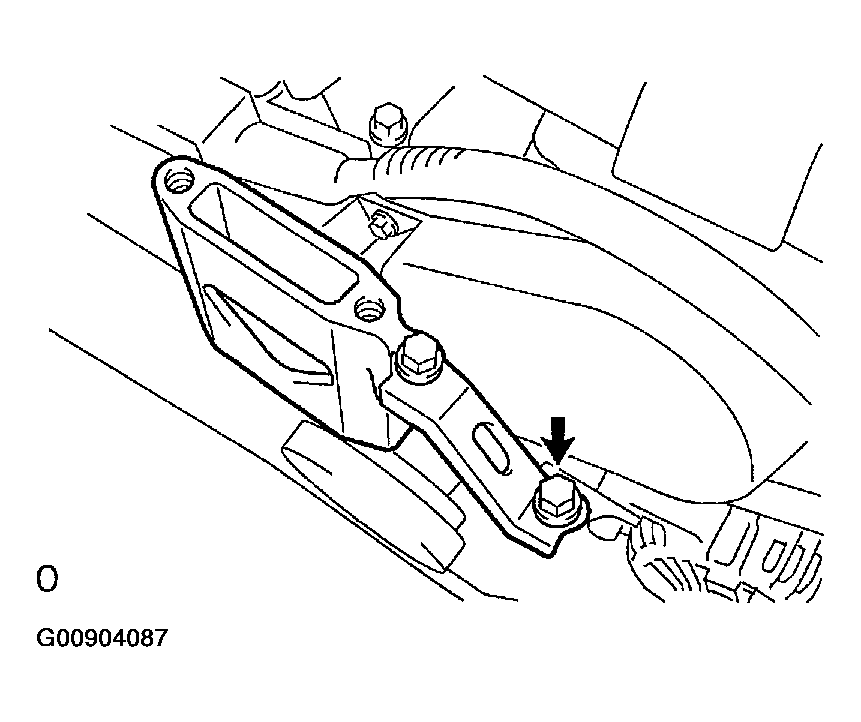

      Fig 27: Locating Engine Mounting Bracket Bolt
      G00904087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL ENGINE MOVING CONTROL ROD
    1. Install the engine moving control rod and bracket with the 4 bolts.

      Torque:

      64 N.m (653 kgf.cm, 47 ft.lbf) for bolt A

      23 N.m (235 kgf.cm, 17 ft.lbf) for bolt B

      Fig 28: Installing Engine Moving Control Rod And Bracket With Bolts
      G00904088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL VANE PUMP V BELT (See  REPLACEMENT   )
  26. INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1 (See  REPLACEMENT   )
  27. INSPECT DRIVE BELT DEFLECTION AND TENSION (See  INSPECTION   )
  28. INSTALL FRONT WHEEL RH (See  REPLACEMENT   )
