Oil Pump ASSY (3MZ-FE): Replacement

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT BATTERY NEGATIVE TERMINAL
  2. DRAIN ENGINE OIL (See  OIL FILTER SUB-ASSY (3MZ-FE)   )
  3. REMOVE FRONT WHEEL RH
  4. REMOVE ENGINE UNDER COVER NO.1
  5. REMOVE ENGINE UNDER COVER NO.2
  6. REMOVE FRONT FENDER APRON SEAL RH
  7. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (See  REPLACEMENT  )
  8. REMOVE GENERATOR ASSY (See  REMOVAL & INSTALLATION  )
  9. REMOVE VANE PUMP V BELT (See  REPLACEMENT  )
  10. REMOVE ENGINE MOVING CONTROL ROD (See  REPLACEMENT  )
  11. REMOVE ENGINE MOUNTING STAY NO.2 RH (See  REPLACEMENT  )
  12. REMOVE GENERATOR BRACKET NO.2 (See  REPLACEMENT  )
  13. REMOVE CRANKSHAFT PULLEY (See  REPLACEMENT  )

    SST 09213-54015 (91651-60855), 09330-00021, 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05031)

  14. REMOVE TIMING BELT NO.1 COVER
  15. REMOVE TIMING BELT NO.2 COVER (See  REPLACEMENT  )
  16. REMOVE ENGINE MOUNTING BRACKET RH (See  REPLACEMENT  )
  17. REMOVE TIMING BELT GUIDE NO.2
  18. REMOVE TIMING BELT (See  REPLACEMENT  )
  19. REMOVE TIMING BELT IDLER SUB-ASSY NO.2
  20. REMOVE CAMSHAFT TIMING PULLEY (See  REPLACEMENT  )

    SST 09960-10010 (09962-01000, 09963-01000), 09249-63010

  21. REMOVE TIMING BELT NO.3 COVER (See  REPLACEMENT  )
  22. REMOVE TIMING BELT IDLER SUB-ASSY NO.1 (See  REPLACEMENT  )
  23. REMOVE CRANKSHAFT TIMING PULLEY (See  REPLACEMENT  )

    SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05011)

  24. REMOVE EXHAUST PIPE NO.1 SUPPORT BRACKET FRONT (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY
  25. REMOVE EXHAUST PIPE NO.1 SUPPORT BRACKET FRONT REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  26. REMOVE EXHAUST PIPE NO.1 SUPPORT BRACKET REAR (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  27. REMOVE EXHAUST PIPE ASSY FRONT (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  28. REMOVE EXHAUST PIPE SUPPORT BRACKET NO.1 (See  REPLACEMENT  )
  29. REMOVE OIL LEVEL GAGE GUIDE (See  REPLACEMENT  )
  30. REMOVE GENERATOR BELT ADJUSTING BAR
    1. Remove the 2 bolts and 2 nuts, then remove the adjusting bar.

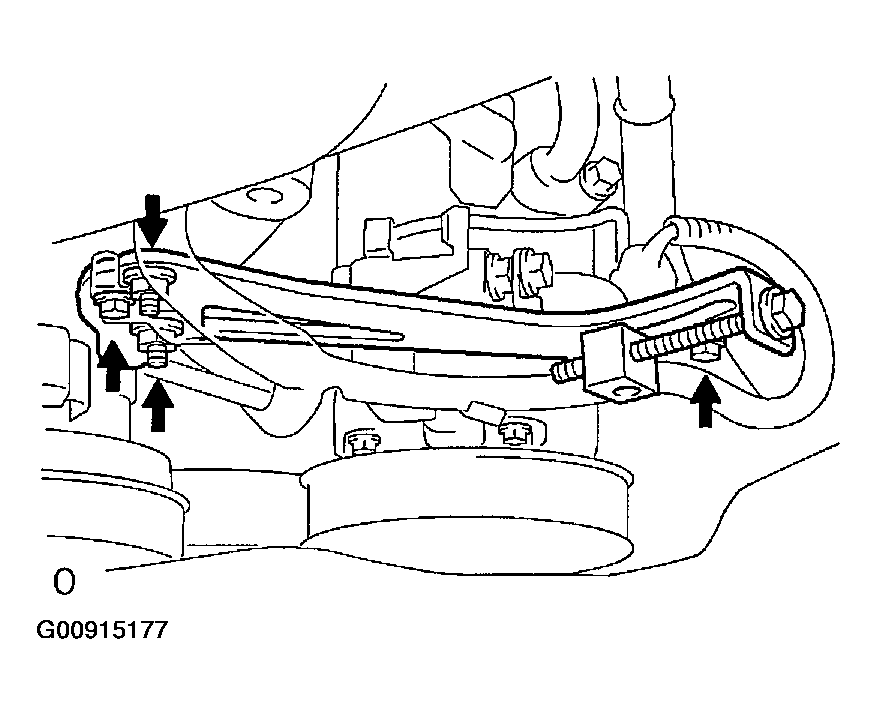

      Fig 1: Removing Bolts, Nuts & Adjusting Bar
      G00915177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. SEPARATE COMPRESSOR AND MAGNETIC CLUTCH
    1. Remove the bolt and nut, then remove the adjusting bar bracket.
    2. Remove the 3 bolts and compressor.

      HINT:

      Secure the hoses off to the side instead of detaching.

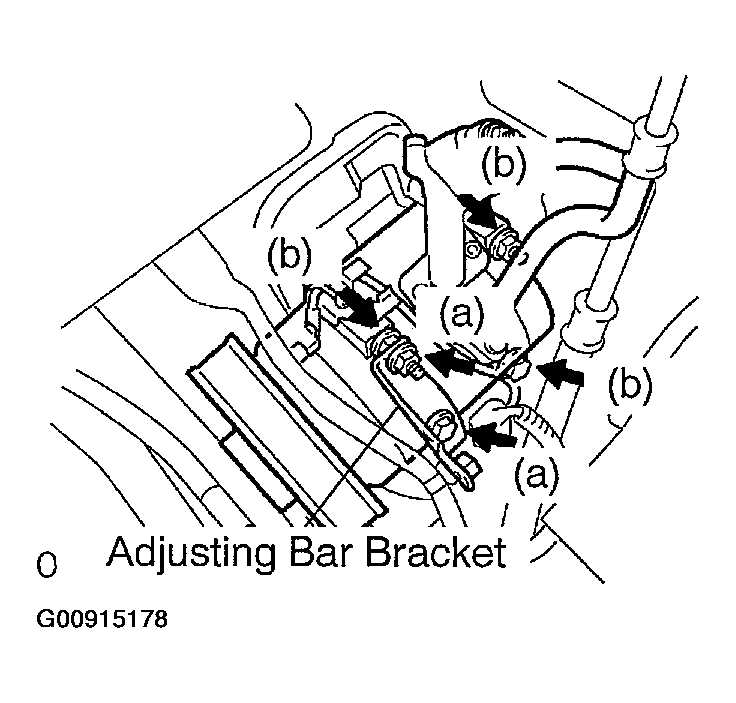

      Fig 2: Removing Bolts, Nuts & Adjusting Bar
      G00915178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE COMPRESSOR MOUNTING BRACKET NO.1
    1. Remove the 2 bolts and compressor mounting bracket.

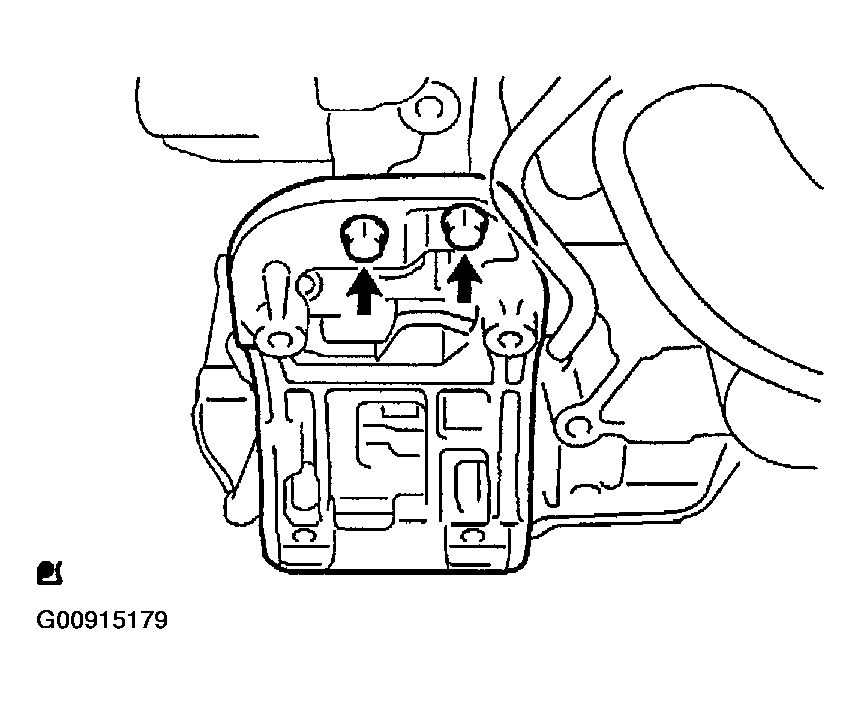

      Fig 3: Identifying Compressor Mounting Bracket Removing Bolts
      G00915179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. SEPARATE ENGINE MOUNTING INSULATOR FR
    1. Remove the 3 nuts and bolt, then separate the engine mounting insulator FR.
      NOTE: Do not remove the engine mounting insulator FR.

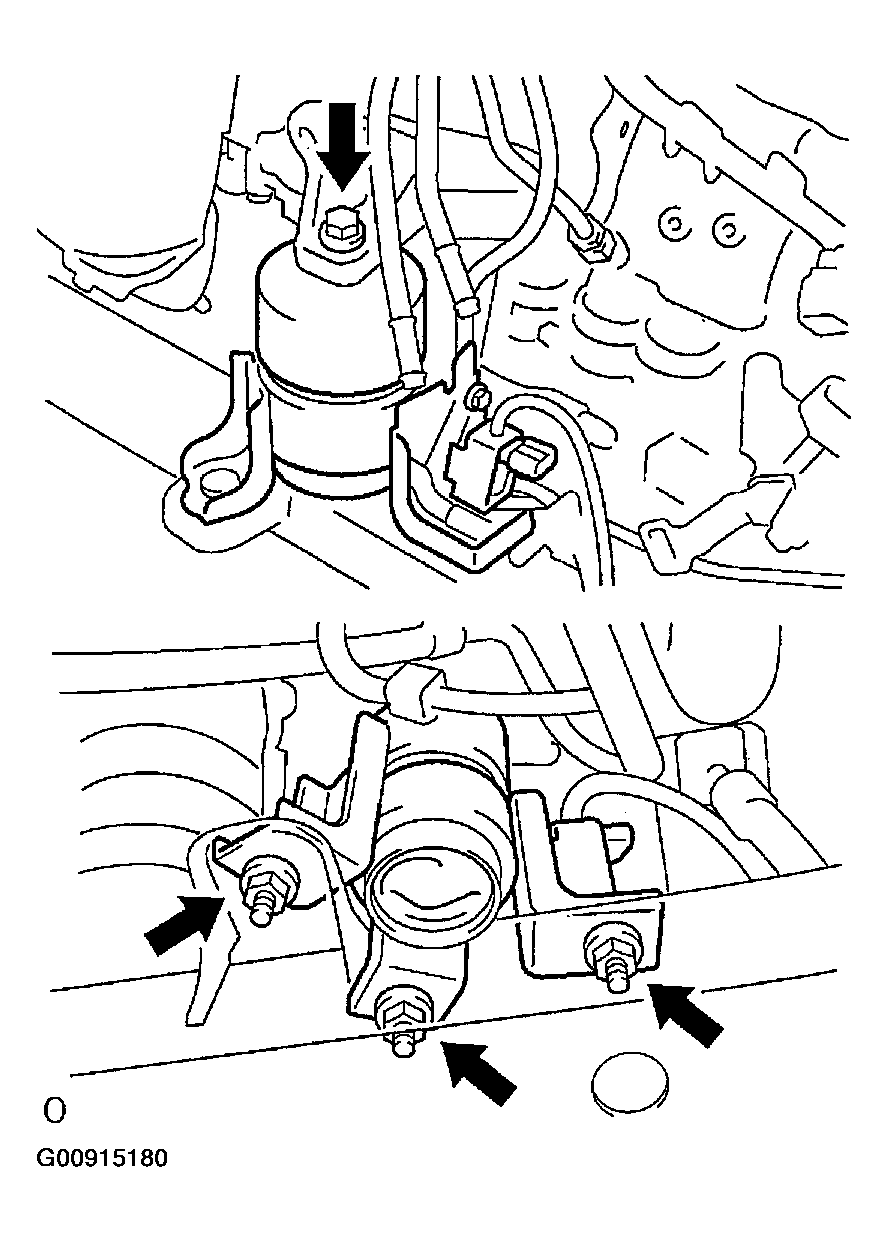

      2. Fig 4: Identifying Engine Mounting Insulator FR Nuts & Bolt
      G00915180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE ENGINE MOUNTING INSULATOR RH
    1. Remove the bolt, then disconnect the power steering return hose clamp from the frame.
    2. Remove the 4 nuts.
    3. Place a wooden block on a jack underneath the engine.
    4. Jack up the engine, then remove the engine mounting insulator RH.
      NOTE: Be careful not to damage the oil pan.

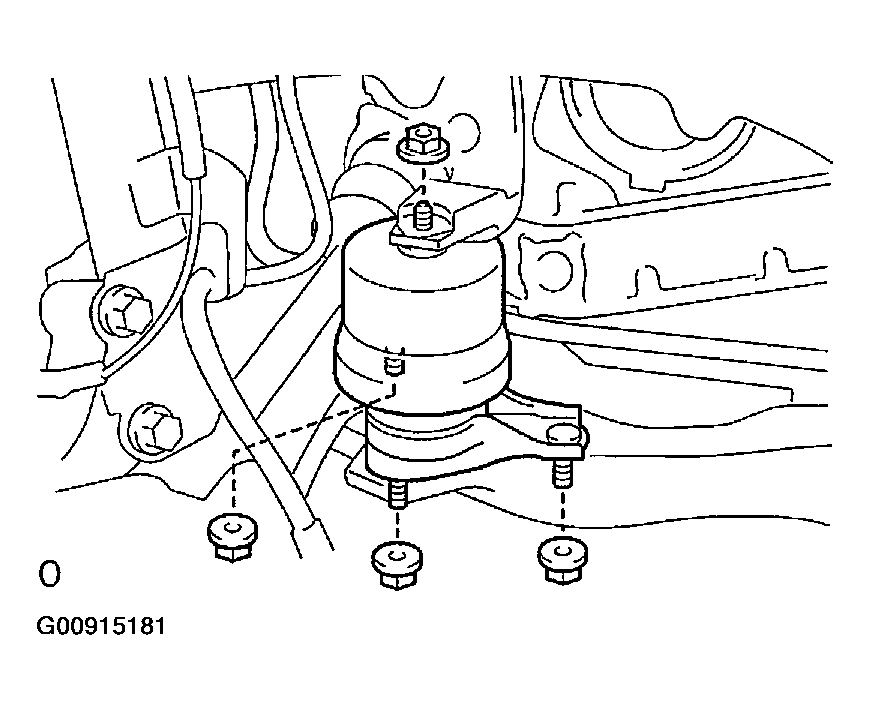

      Fig 5: Removing Engine Mounting Insulator RH Nuts
      G00915181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE ENGINE MOUNTING BRACKET RH
    1. Remove the 4 bolts and nut, then remove the bracket.

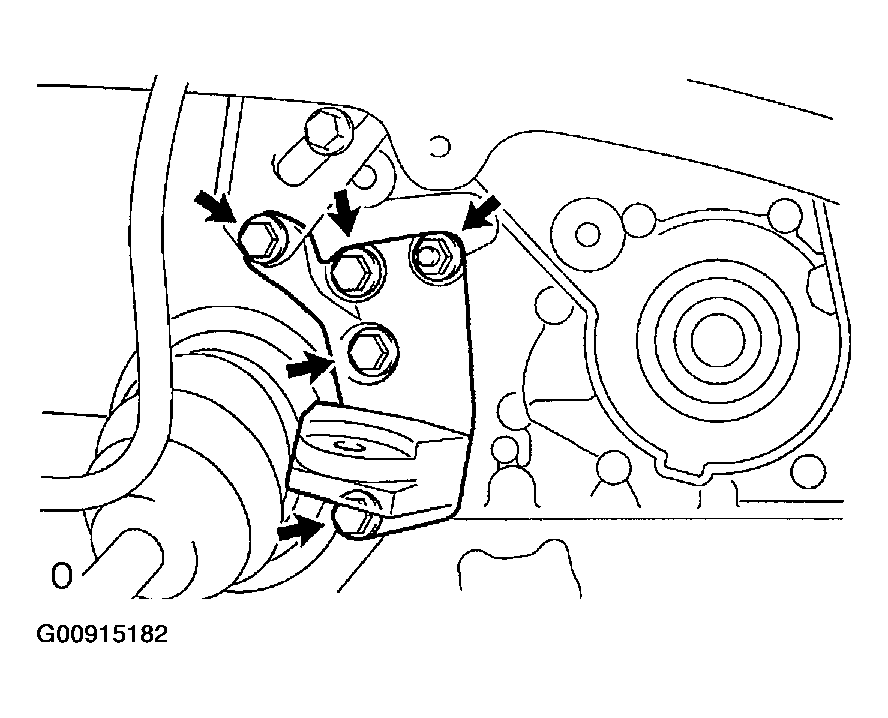

      Fig 6: Removing Engine Mounting Bracket RH Bolts And Nuts
      G00915182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE OIL PAN SUB-ASSY NO.2
    1. Remove the 10 bolts and 2 nuts.

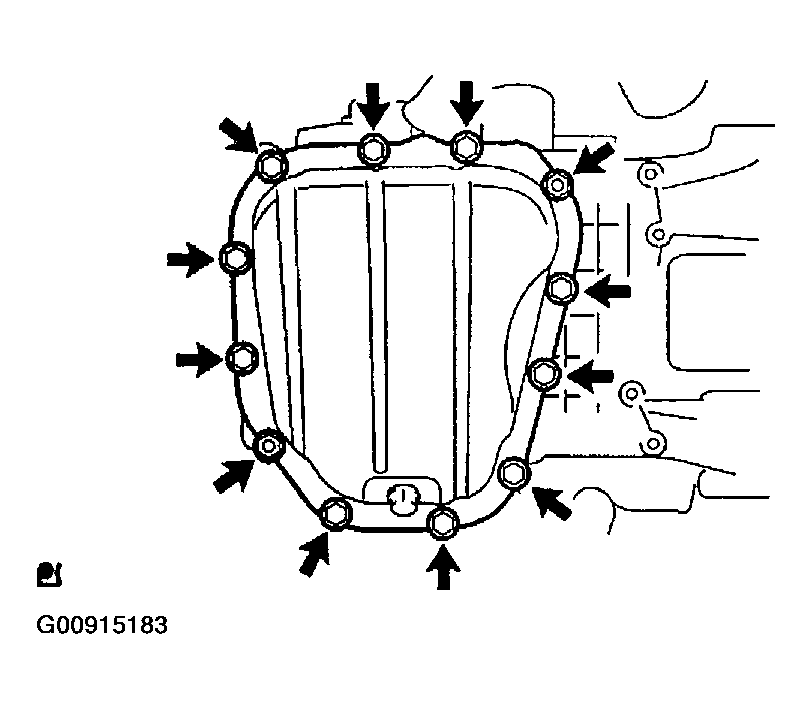

      Fig 7: Removing Oil Pan Sub-Assy No.2 Bolts And Nuts
      G00915183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Insert the blade of SST between the oil pan No. 1 and oil pan No. 2, then cut off the sealer and remove the oil pan No. 2.

      SST 09032-00100

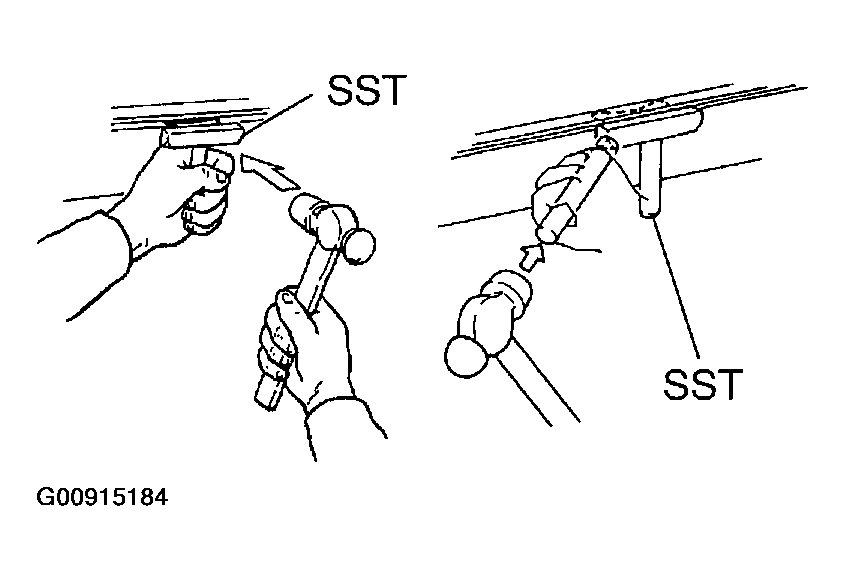

      Fig 8: Removing Oil Pan No.2
      G00915184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the contact surface of the oil pan No. 1 where the oil pan No. 2 is mounted.
      • Do not damage the flange portion of the oil pan No. 2 when removing.
  37. REMOVE OIL STRAINER SUB-ASSY
    1. Remove the bolt and 2 nuts, then remove the oil strainer and gasket.
  38. REMOVE OIL PAN SUB-ASSY
    1. Remove the 2 bolts and nut, then disconnect the engine oil level sensor connector.
    2. Remove the 2 bolts and flywheel housing under cover.

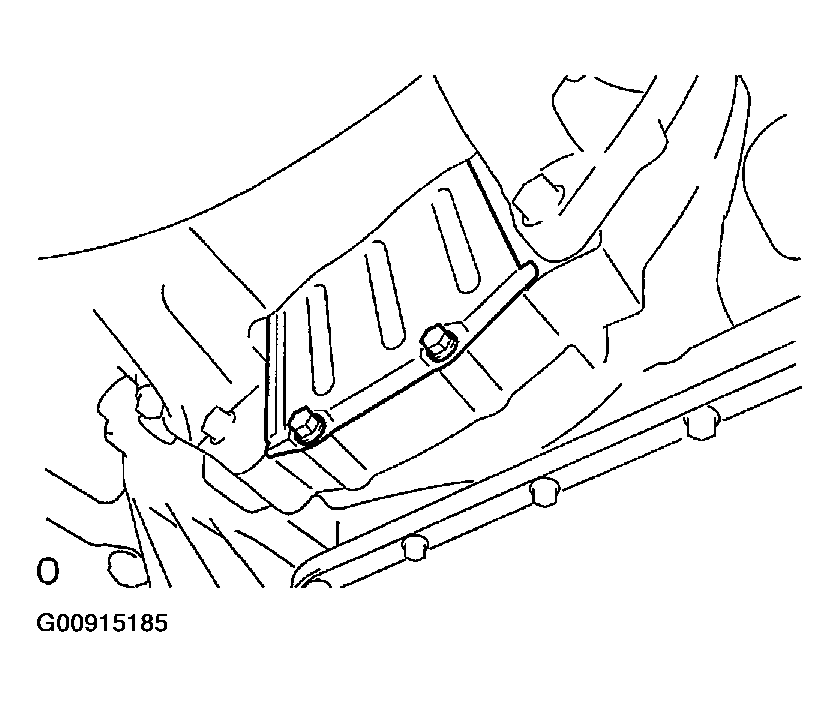

      Fig 9: Removing Flywheel Housing Under Cover & Bolts
      G00915185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Loosen and remove the 17 bolts and 2 nuts uniformly.

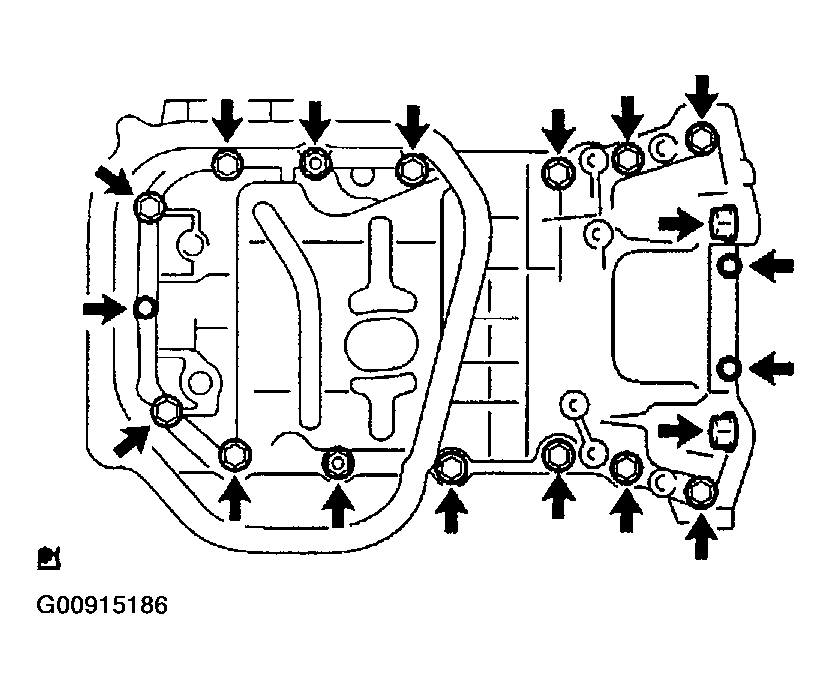

      Fig 10: Removing Oil Pan Sub-Assy Bolts And Nuts
      G00915186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a screwdriver, remove the oil pan by prying between the cylinder block and oil pan.

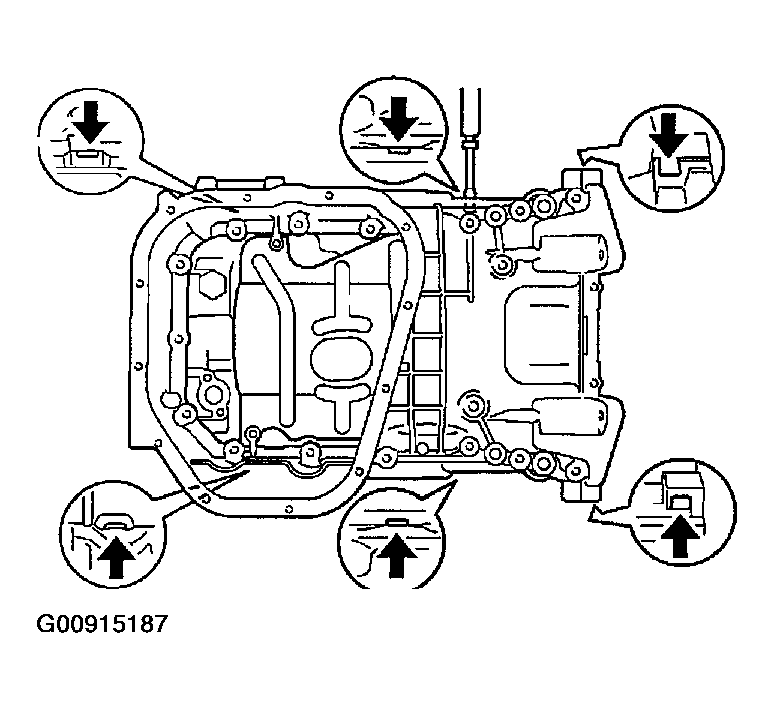

      Fig 11: Removing Oil Pan By Prying Between Cylinder Block And Oil Pan
      G00915187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Be careful not to damage the contact surfaces of the oil pan and cylinder block.
  39. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.
    2. Remove the bolt and crankshaft position sensor.
  40. REMOVE OIL PUMP ASSY
    1. Remove the 9 bolts.
    2. Using a screwdriver, remove the oil pump by prying between the oil pump and bearing cap.
    3. Remove the O-ring.

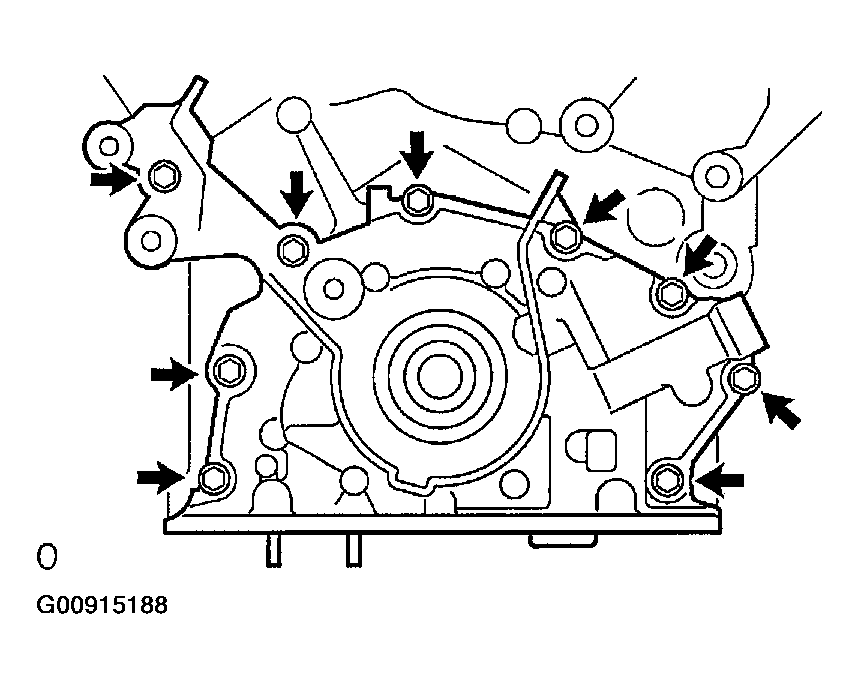

      Fig 12: Removing Oil Pump Assy & Bolts
      G00915188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. INSTALL OIL PUMP SEAL
    1. Using SST and a hammer, tap in the new oil seal until its surface is flush with the oil pump body edge.

      SST 09223-00010

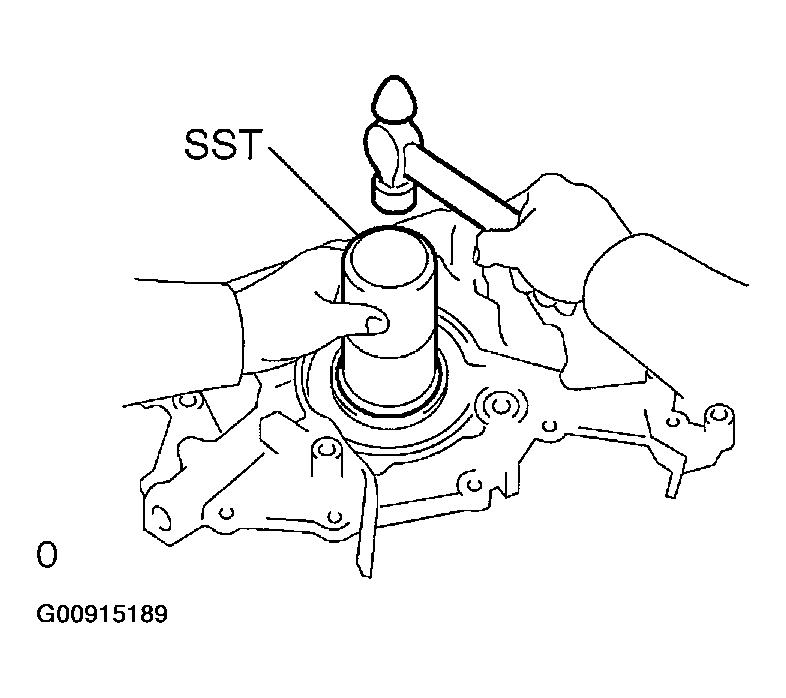

      Fig 13: Installing Oil Pump Seal
      G00915189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to tap the oil seal at an angle.
      • Keep the lip free of foreign objects.
    2. Apply multi-purpose grease to the oil seal lip.
  42. INSTALL OIL PUMP ASSY
    1. Remove any old seal packing material from the contact surface.
    2. Apply a light coat of engine oil to a new O-ring, then place it on the cylinder block.

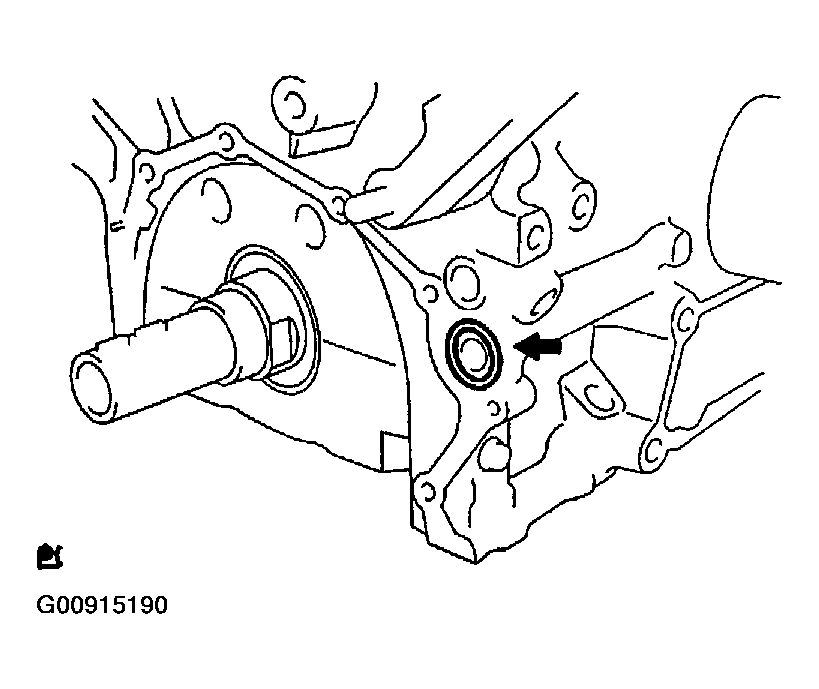

      Fig 14: Identifying O-Ring
      G00915190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Apply a continuous bead of seal packing (Diameter 2 to 3 mm (0.08 to 0.12 in.)) as shown in the illustration.

      Seal packing: Part No. 08826-00080 or equivalent

      NOTE:
      • Remove any oil from contact surface.
      • Apply seal packing to the inner side of the bolt holes.
      • Install the oil pump within 3 minutes after applying seal packing.
      • Do not expose the seal packing to engine oil within 2 hours after installing.

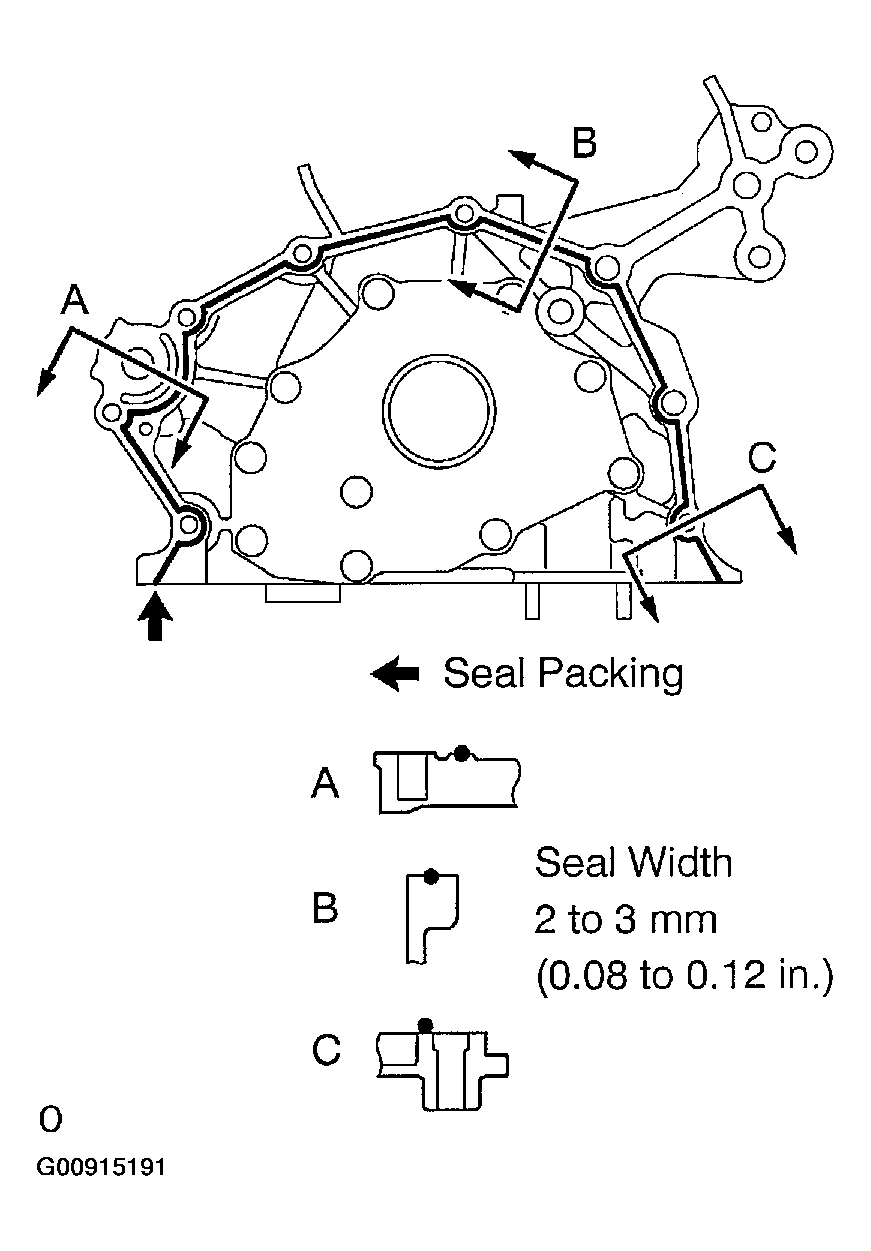

        Fig 15: Applying Seal Packing
        G00915191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Align the key of the oil pump drive gear with the keyway located on the crankshaft, then slide the oil pump into place.

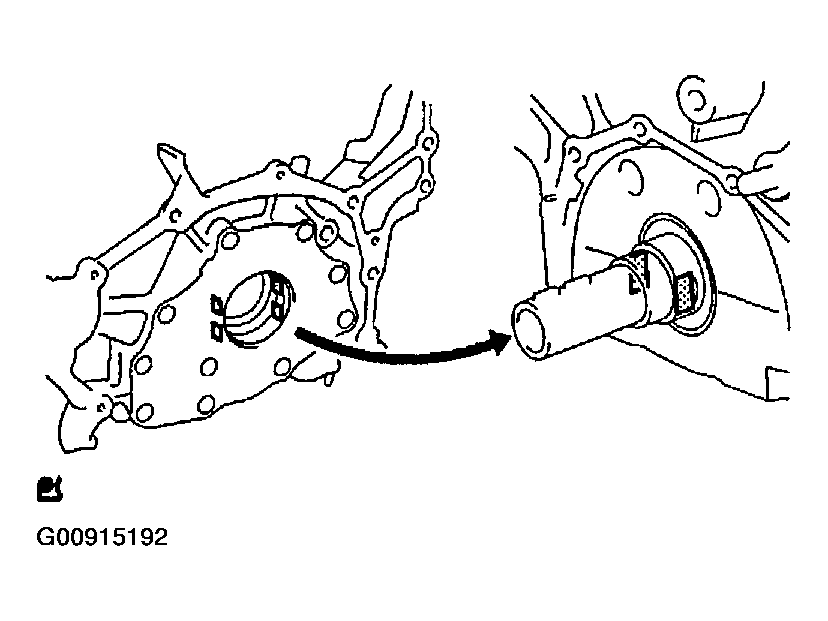

      Fig 16: Aligning Key Of Oil Pump Drive Gear With Keyway Located On Crankshaft
      G00915192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the oil pump with the 9 bolts. Tighten the bolts uniformly in several steps.

      Torque:

      8.0 N.m (82 kgf.cm, 71 in.lbf) for bolt A

      20 N.m (199 kgf.cm, 14 ft.lbf) for bolt B

      43 N.m (439 kgf.cm, 32 ft.lbf) for bolt C

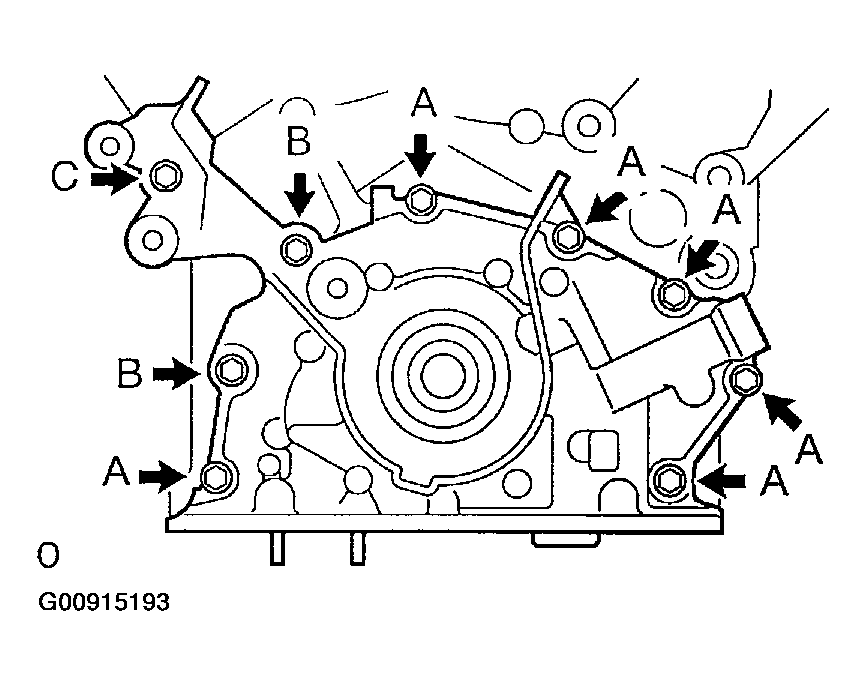

      Fig 17: Installing Oil Pump Bolts
      G00915193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. INSTALL CRANKSHAFT POSITION SENSOR

    Torque: 8.0 N.m (80 kgf.cm, 71 in.lbf)

  44. INSTALL OIL PAN SUB-ASSY
    1. Remove any old seal packing from the contact surface.
    2. Apply a continuous bead of seal packing (Diameter 3 to 4 mm (0.12 to 0.16 in.)) as shown in the illustration.

      Seal packing: Part No. 08826-00080 or equivalent

      NOTE:
      • Remove any oil from the contact surface.
      • Apply seal packing to the outer side of the bolt holes in the region "X".
      • Apply seal packing to the inner side of the bolt holes in the region "Y".
      • Install the oil pan within 3 minutes after applying seal packing.
      • Do not expose the seal packing to engine oil within 2 hours after installing.

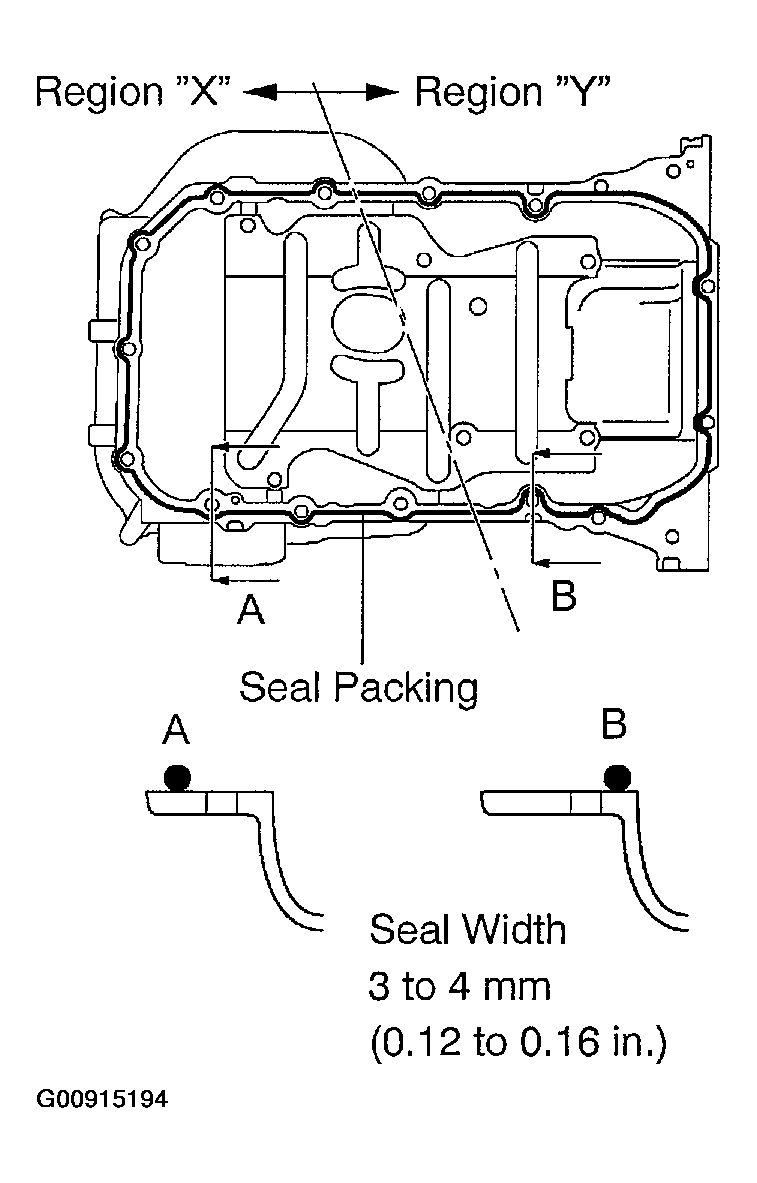

        Fig 18: Applying Seal Packing To Outer Side Of Bolt Holes
        G00915194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the oil pan with the 17 bolts and 2 nuts. Tighten the bolts uniformly in several steps.

      Torque:

      8.0 N.m (82 kgf.cm, 71 in.lbf) for 10 mm head

      20 N.m (199 kgf.cm, 14 ft.lbf) for 12 mm head

      37 N.m (379 kgf.cm, 27 ft.lbf) for 14 mm head

    4. Install the flywheel housing under cover with the 2 bolts.

      Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)

    5. Install the engine oil level sensor connector with the 2 bolts and nut.

      Torque: 8.4 N.m (85 kgf.cm, 74 in.lbf)

  45. INSTALL OIL STRAINER SUB-ASSY
    1. Install a new gasket and the oil strainer with the bolt and 2 nuts.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

  46. INSTALL OIL PAN SUB-ASSY NO.2
    1. Remove any old seal packing from the contact surface.
    2. Apply a continuous bead of seal packing (Diameter 4 to 5 mm (0.16 to 0.20 in.)) as shown in the illustration.

      Seal packing: Part No. 08826-00080 or equivalent

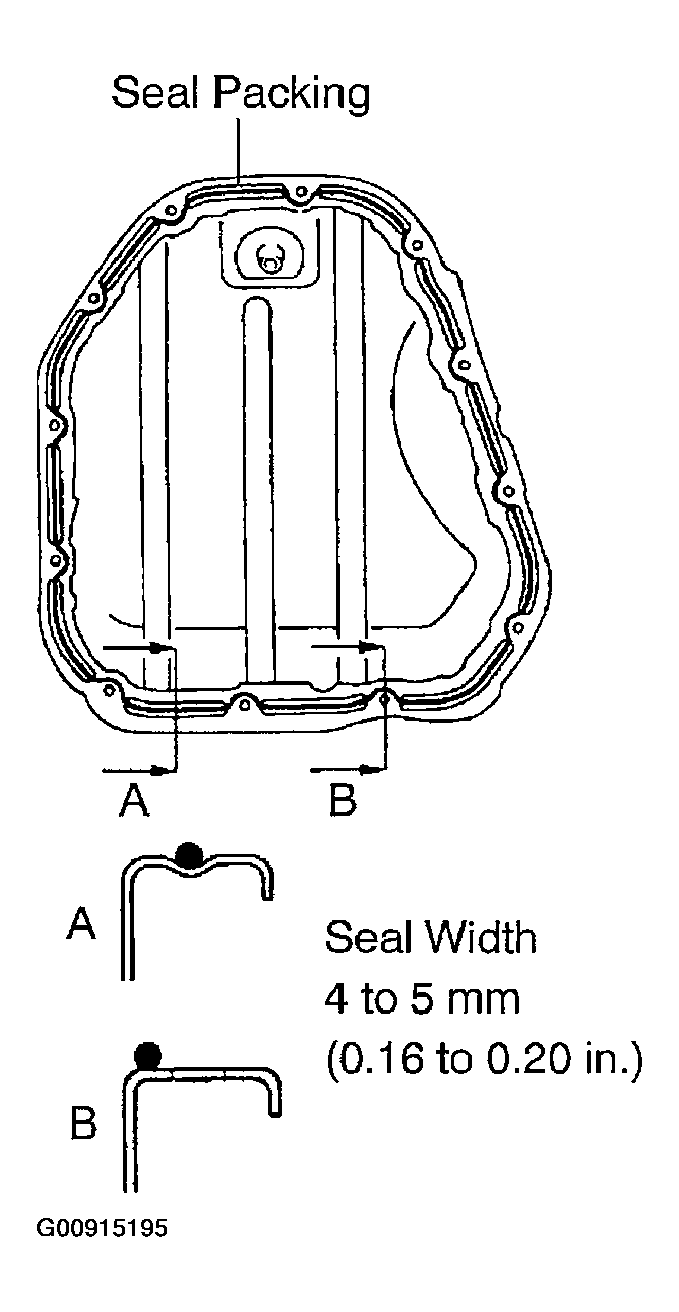

      Fig 19: Applying Continuous Bead Of Seal Packing
      G00915195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Remove any oil from the contact surface.
      • Apply seal packing to the inner side of the bolt holes.
      • Install the oil pan within 3 minutes after applying seal packing.
      • Do not expose the seal packing to engine oil within 2 hours after installing.
    3. Install the oil pan No. 2 with the 10 bolts and 2 nuts.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

  47. INSTALL ENGINE MOUNTING BRACKET RH

    Torque:

    54 N.m (551 kgf.cm, 40 ft.lbf) for bolt A

    54 N.m (551 kgf.cm, 40 ft.lbf) for nut B

    43 N.m (439 kgf.cm, 32 ft.lbf) for bolt C

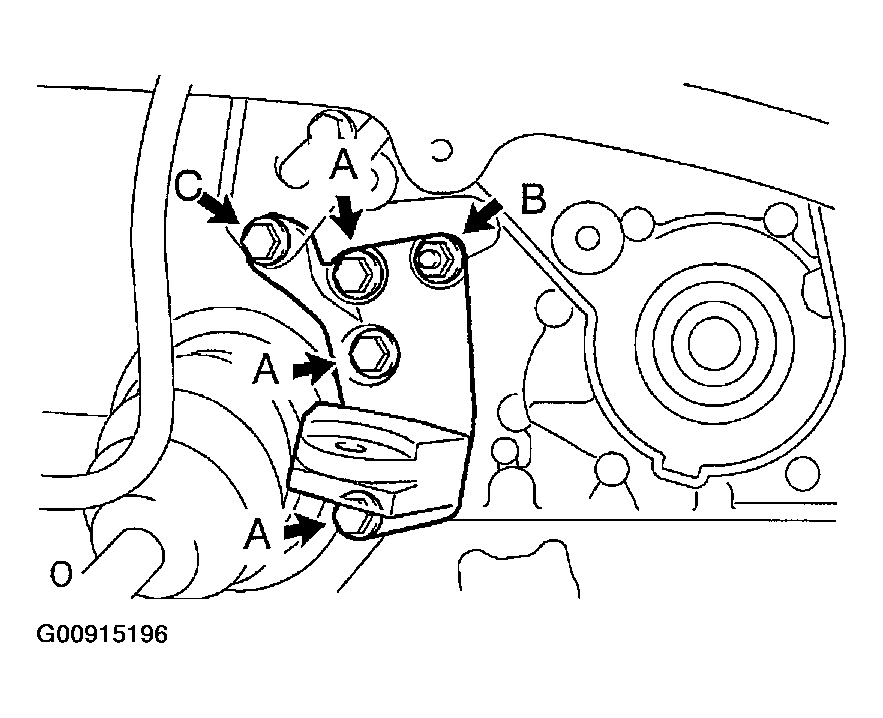

    Fig 20: Installing Engine Mounting Bracket RH
    G00915196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. INSTALL ENGINE MOUNTING INSULATOR RH

    Torque:

    95 N.m (969 kgf.cm, 70 ft.lbf) for nut A

    87 N.m (887 kgf.cm, 64 ft.lbf) for nut B

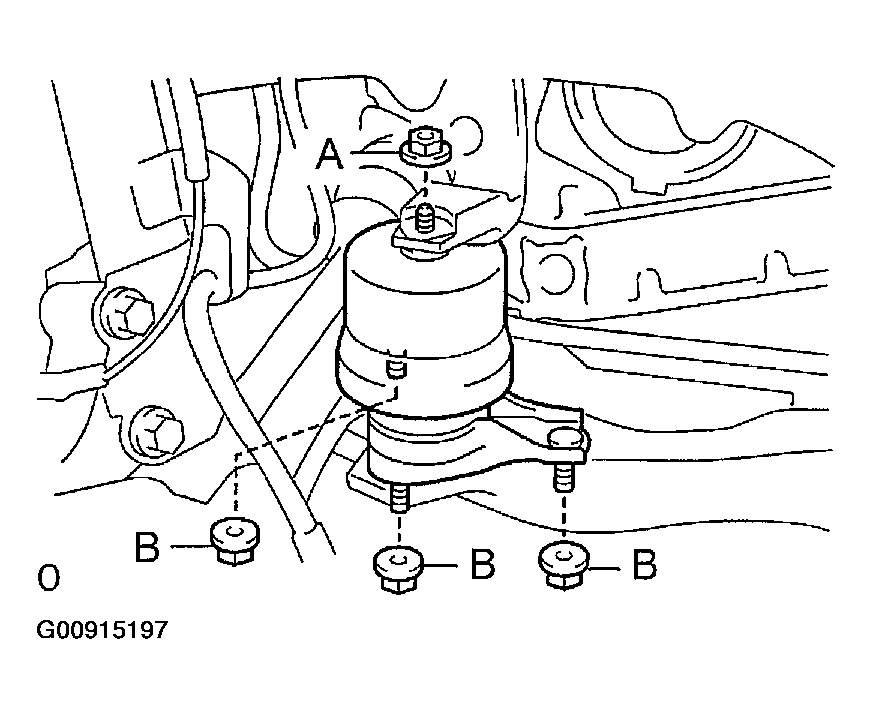

    Fig 21: Installing Engine Mounting Insulator RH
    G00915197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. INSTALL ENGINE MOUNTING INSULATOR FR

    Torque:

    87 N.m (887 kgf.cm, 64 ft.lbf) for bolt A

    52 N.m (530 kgf.cm, 38 ft.lbf) for nut B

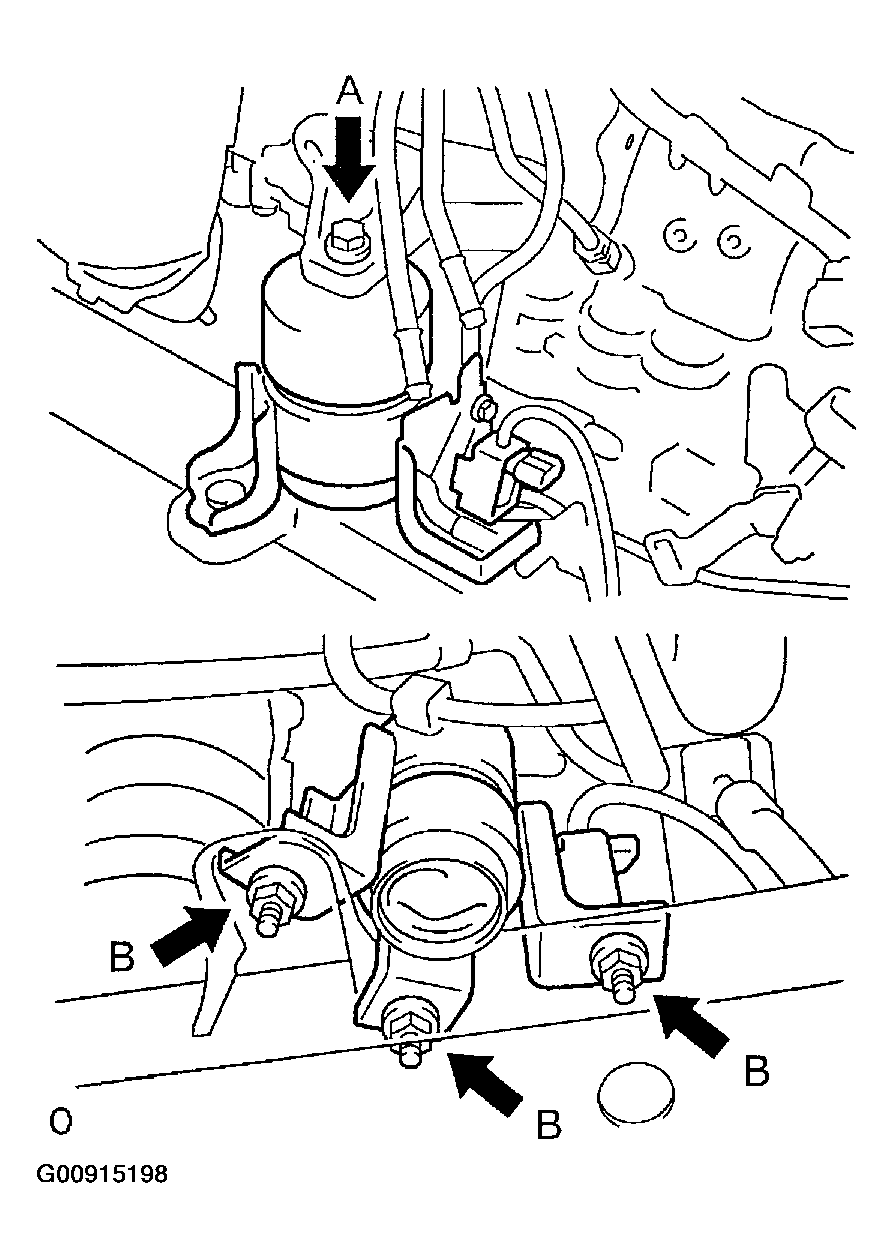

    Fig 22: Installing Engine Mounting Insulator FR
    G00915198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. INSTALL COMPRESSOR MOUNTING BRACKET NO.1

    Torque: 25 N.m (250 kgf.cm, 18 ft.lbf)

  51. INSTALL COMPRESSOR AND MAGNETIC CLUTCH
    1. Install the compressor with the 3 bolts.

      Torque: 25 N.m (250 kgf.cm, 18 ft.lbf)

    2. Install the adjusting bar bracket with the bolt and nut.

      Torque:

      25 N.m (250 kgf.cm, 18 ft.lbf) for bolt

      26 N.m (260 kgf.cm, 19 ft.lbf) for nut

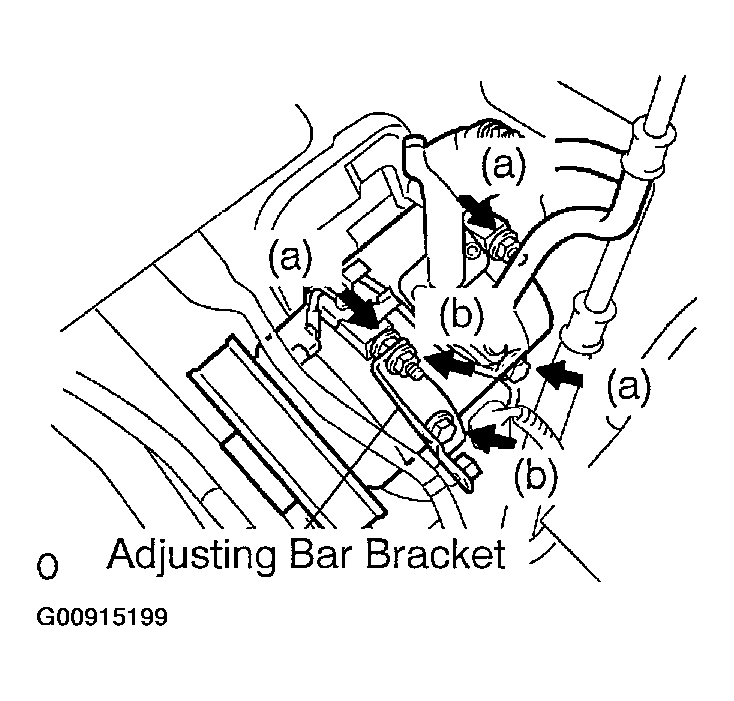

      Fig 23: Installing Adjusting Bar Bracket With Bolt And Nut
      G00915199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. INSTALL GENERATOR BELT ADJUSTING BAR
    1. Install the adjusting bar with the 2 bolts and 2 nuts.

      Torque:

      43 N.m (438 kgf.cm, 32 ft.lbf) for nut A

      18 N.m (184 kgf.cm, 13 ft.lbf) for bolt B

      8.4 N.m (85 kgf.cm, 74 in.lbf) for bolt C

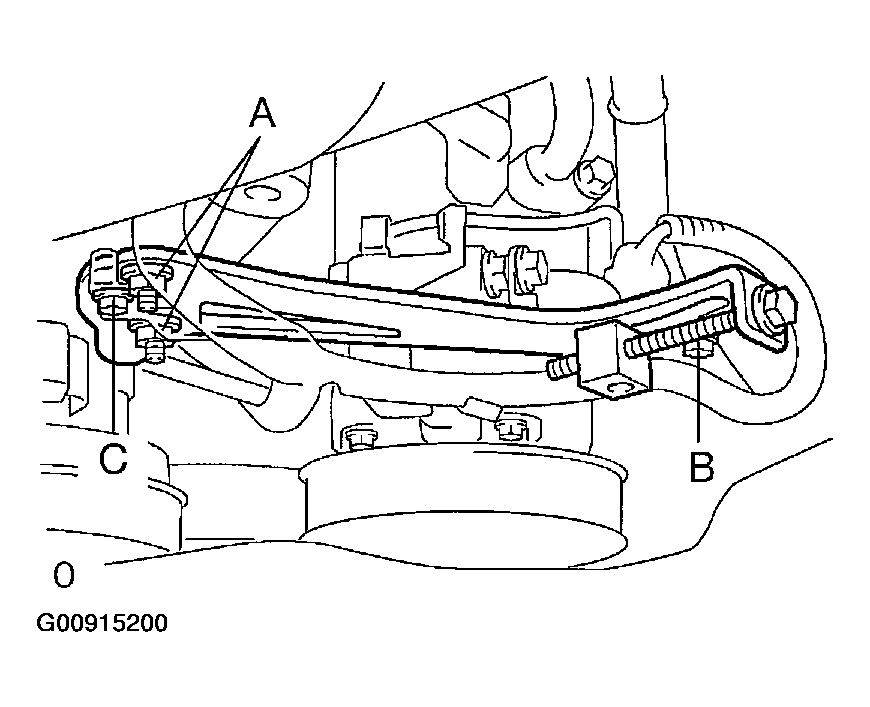

      Fig 24: Installing Generator Belt Adjusting Bar
      G00915200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. INSTALL OIL LEVEL GAUGE GUIDE (See  REPLACEMENT  )
  54. INSTALL EXHAUST PIPE SUPPORT BRACKET NO.1 (See  REPLACEMENT  )
  55. INSTALL EXHAUST PIPE ASSY FRONT (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  56. INSTALL EXHAUST PIPE NO.1 SUPPORT BRACKET REAR (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  57. INSTALL EXHAUST PIPE NO.1 SUPPORT BRACKET FRONT (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  58. INSTALL CRANKSHAFT TIMING PULLEY (See  REPLACEMENT  )
  59. INSTALL TIMING BELT IDLER SUB-ASSY NO.1 (See  REPLACEMENT  )
  60. INSTALL TIMING BELT NO.3 COVER (See  REPLACEMENT  )
  61. INSTALL CAMSHAFT TIMING PULLEY (See  REPLACEMENT  )

    SST 09960-10010 (09962-01000, 09963-01000), 09249-63010

  62. INSTALL TIMING BELT IDLER SUB-ASSY NO.2 (See  REPLACEMENT  )
  63. INSPECT TIMING BELT (See  REPLACEMENT  )
  64. INSTALL TIMING BELT (See  REPLACEMENT  )

    SST 09960-10010 (09962-01000, 09963-01000)

  65. INSTALL TIMING BELT TENSIONER ASSY (See  REPLACEMENT  )
  66. INSTALL TIMING BELT GUIDE NO.2 (See  REPLACEMENT  )
  67. INSTALL ENGINE MOUNTING BRACKET RH (See  REPLACEMENT  )
  68. INSTALL TIMING BELT NO.2 COVER (See  REPLACEMENT  )
  69. INSTALL TIMING BELT NO.1 COVER (See  REPLACEMENT  )
  70. INSTALL CRANKSHAFT PULLEY (See  REPLACEMENT  )

    SST 09213-54015 (91651-60855), 09330-00021

  71. INSTALL GENERATOR BRACKET NO.2 (See  REPLACEMENT  )
  72. INSTALL ENGINE MOUNTING STAY NO.2 RH (See  REPLACEMENT  )
  73. INSTALL ENGINE MOVING CONTROL ROD (See  REPLACEMENT  )
  74. INSTALL VANE PUMP V BELT (See  REPLACEMENT  )
  75. INSTALL GENERATOR ASSY (See  REMOVAL & INSTALLATION  )
  76. INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (See  REPLACEMENT  )
  77. INSPECT DRIVE BELT DEFLECTION AND TENSION (See  INSPECTION  )
  78. INSTALL FRONT WHEEL RH (See  REPLACEMENT  )
  79. ADD ENGINE OIL (See  REPLACEMENT   )
  80. CHECK FOR ENGINE OIL LEAKS
  81. CHECK FOR EXHAUST GAS LEAKS
  82. SYSTEM INITIALIZATION (See  DESCRIPTION & OPERATION  )
scientia non olet · About LEMON Manuals
