Passenger's Side

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. If reusing the motor actuator air mix, perform the following procedures.
    1. While the part is installed to the vehicle, turn the temperature setting to the MAX-COOL position.
    2. Keep the condition in step (1) for 30 seconds.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the pocket COMPL. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL>GLOVE BOX LID .
  4. Remove the boot assembly parking brake and the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  5. Remove the cover center side. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CONSOLE>REMOVAL .
  6. Remove the cover LWR driver INN. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL>INSIDE .
  7. Remove the cover assembly instrument panel side RH and the panel center UPR assembly. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE .
  8. Remove the center information display assembly. Ref. to ENTERTAINMENT & MONITORING>COCKPIT DISPLAY>REMOVAL .
  9. Remove the heater control assembly. Ref. to AIR CONDITIONER>CONTROL PANEL>REMOVAL .
  10. Remove the panel instrument passenger. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL>BACK PANEL .

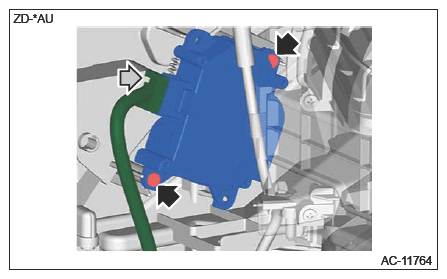

  11. Remove the motor actuator air mix.
    1. Disconnect the connector.
    2. Remove the screws and remove the motor actuator air mix.
G16526627Courtesy of SUBARU OF AMERICA, INC.
