Control Panel: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the boot assembly parking brake and the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  3. Remove the cover center side. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CONSOLE>REMOVAL .
  4. Remove the cover LWR driver INN. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL>INSIDE .
  5. Remove the cover assembly instrument panel side RH and the panel center UPR assembly. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE .
  6. Remove the center information display assembly. Ref. to ENTERTAINMENT & MONITORING>COCKPIT DISPLAY>REMOVAL .
  7. Remove the heater control assembly.

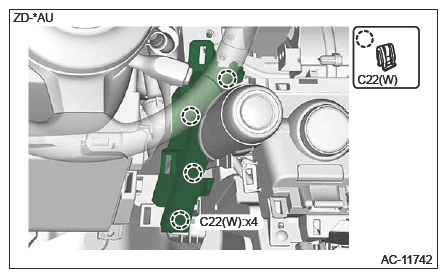

    1. Release the clips, and remove the cover assembly driver.
      G16526570Courtesy of SUBARU OF AMERICA, INC.

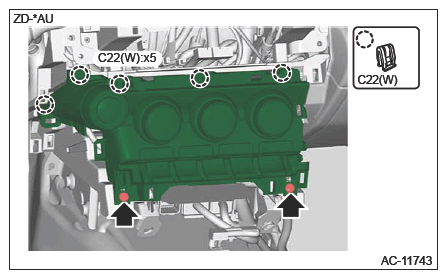

    2. Remove the screws and release the claws, and then remove the heater control assembly.
      G16526571Courtesy of SUBARU OF AMERICA, INC.
    3. Disconnect the connector, and remove the heater control assembly.
  8. Remove the push button start switch. Ref. to SECURITY AND LOCKS>PUSH BUTTON IGNITION SWITCH>REMOVAL .
