Center Grille

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover LWR driver INN. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL>INSIDE .
  3. Open the pocket COMPL.

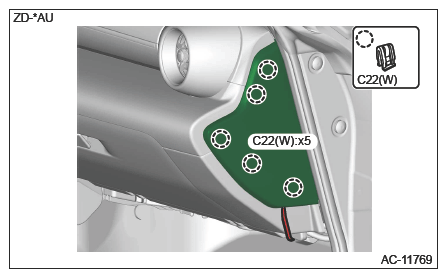

  4. Remove the clips, and remove the cover assembly instrument panel side RH.
    NOTE:
    • Use a plastic remover.
    • If removing is difficult, remove the weather strip and remove it from the gap using a plastic remover.
    G16526633Courtesy of SUBARU OF AMERICA, INC.

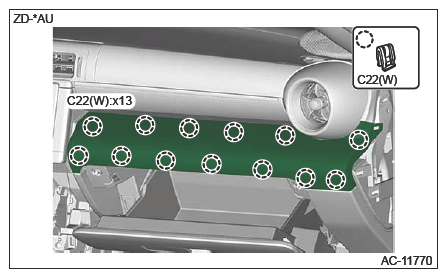

  5. Release the clips, and remove the ornament assembly passenger.
    G16526634Courtesy of SUBARU OF AMERICA, INC.

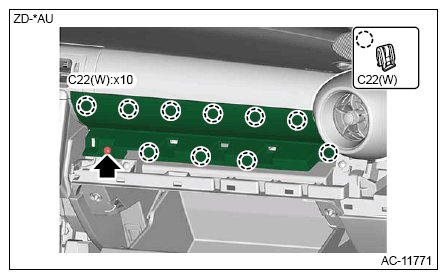

  6. Remove the screws and release the clips, and remove the cover assembly passenger.
    G16526635Courtesy of SUBARU OF AMERICA, INC.

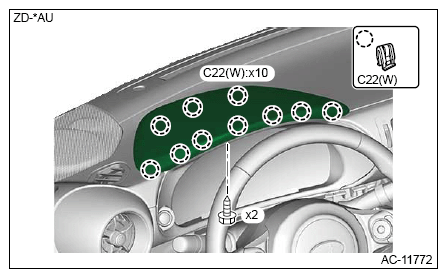

  7. Release the screws and clips, then detach the visor assembly UPR.
    G16526636Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the panel center UPR assembly.
    CAUTION: Be careful not to damage the panel center UPR assembly.

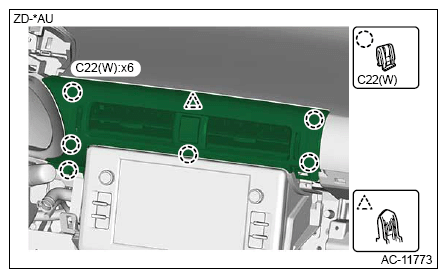

    1. Release the clips and claws.
      G16526637Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector, and remove the panel center UPR assembly.

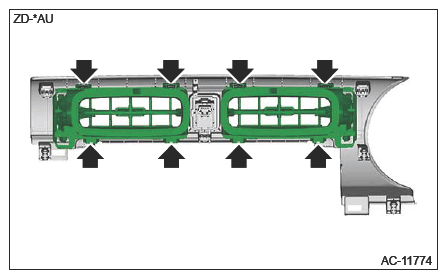

  9. Release the claws, and then remove the grille ventilation assembly center RH and LH.
G16526638Courtesy of SUBARU OF AMERICA, INC.
