Back Panel

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the pocket COMPL. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL>GLOVE BOX LID .
  3. Remove the boot assembly parking brake and the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  4. Remove the cover center side. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CONSOLE>REMOVAL .
  5. Remove the cover LWR driver INN. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL>INSIDE .
  6. Remove the cover assembly instrument panel side RH and the panel center UPR assembly. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE .
  7. Remove the center information display assembly. Ref. to ENTERTAINMENT & MONITORING>COCKPIT DISPLAY>REMOVAL .
  8. Remove the heater control assembly. Ref. to AIR CONDITIONER>CONTROL PANEL>REMOVAL .
  9. Remove the panel instrument passenger.

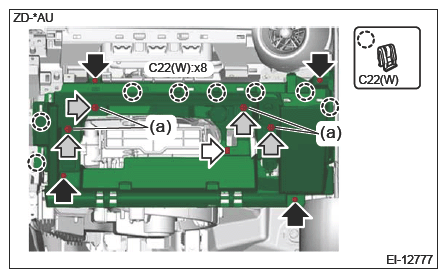

    1. Remove the screws and harness clips.
      NOTE: The screws marked (a) need to be installed in their designated locations.
    2. Release the clips.
    3. Disconnect each connector and remove the panel instrument passenger.
    G16527301Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the socket assembly. Ref. to ENTERTAINMENT & MONITORING>ACCESSORY POWER SUPPLY SOCKET>REMOVAL .
    NOTE: Perform this procedure only when required.
  11. Remove the TPMS SET switch. Ref. to WHEEL AND TIRE SYSTEM>TIRE PRESSURE MONITORING SYSTEM>REMOVAL>TPMS SET SWITCH .
    NOTE: Perform this procedure only when required.

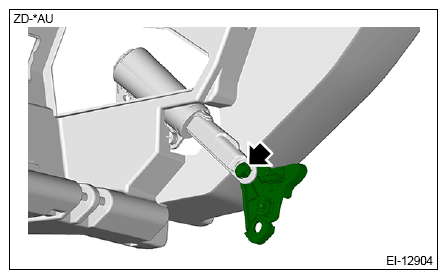

  12. Release the claws, and remove the link pocket assembly.
    NOTE: Perform this procedure only when required.
    G16527302Courtesy of SUBARU OF AMERICA, INC.

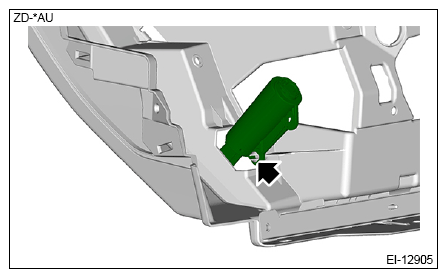

  13. Release the claws, and remove the damper assembly.
    NOTE: Perform this procedure only when required.
    G16527303Courtesy of SUBARU OF AMERICA, INC.

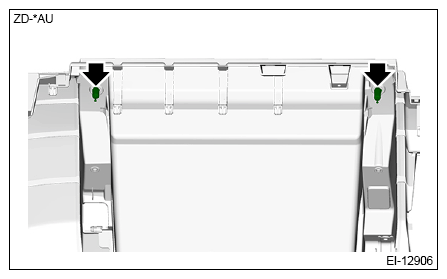

  14. Release the claws, and remove the cushion pocket.
NOTE: Perform this procedure only when required.
G16527304Courtesy of SUBARU OF AMERICA, INC.
