Glove Box Lid

  1. Remove the pocket COMPL.

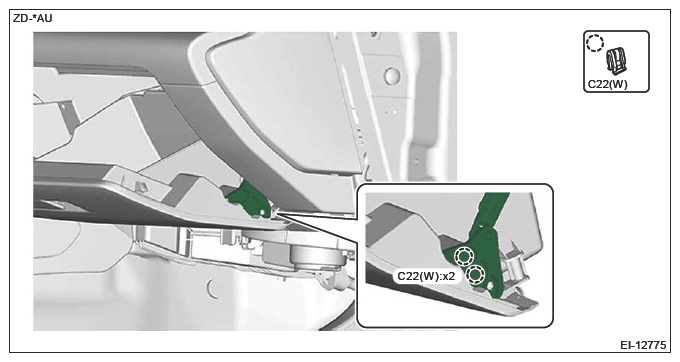

    1. Release the clips, and remove the link pocket assembly.
      G16527299Courtesy of SUBARU OF AMERICA, INC.

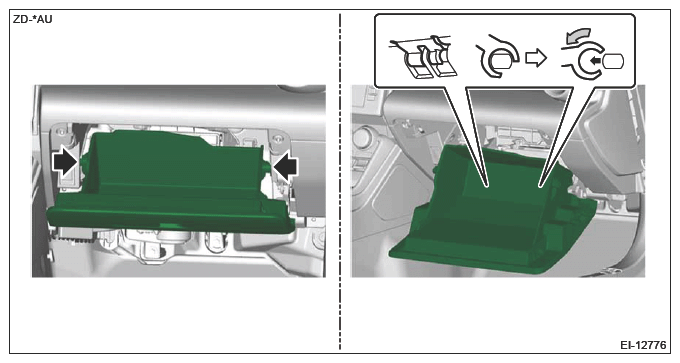

    2. Release the stoppers and remove the pocket COMPL by pulling it toward you.
G16527300Courtesy of SUBARU OF AMERICA, INC.
