Accessory Power Supply Socket: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the pocket COMPL. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL>GLOVE BOX LID .
  3. Remove the socket assembly.

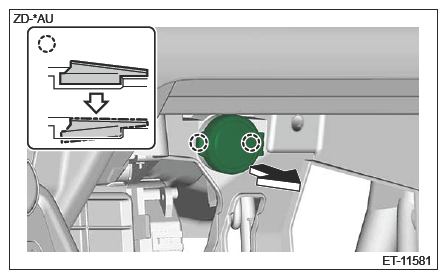

  1. Push the claw down from behind as you release it, and pull out the socket assembly from the panel instrument passenger.
    CAUTION: When using a tool, apply protective tape or a cloth and be careful not to cause damage.
    G16526969Courtesy of SUBARU OF AMERICA, INC.
  2. Detach the connector, and remove the socket assembly.
