Reverse Brake Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly. <Ref. to REMOVAL , Automatic Transmission Assembly.>
  2. Remove the air breather hose. <Ref. to REMOVAL , Air Breather Hose.>
  3. Remove the control valve body. <Ref. to REMOVAL , Control Valve Body.>
  4. Remove the transmission harness. <Ref. to REMOVAL , Transmission Harness.>
  5. Remove the turbine speed sensor. <Ref. to REMOVAL , Turbine Speed Sensor.>
  6. Remove the secondary speed sensor. <Ref. to REMOVAL , Secondary Speed Sensor.>
  7. Remove the primary speed sensor. <Ref. to REMOVAL , Primary Speed Sensor.>
  8. Remove the inhibitor switch. <Ref. to REMOVAL , Inhibitor Switch.>
  9. Remove the extension case. <Ref. to REMOVAL , Extension Case.>
  10. Remove the transfer clutch assembly. <Ref. to REMOVAL , Transfer Clutch.>
  11. Remove the transfer driven gear assembly. <Ref. to REMOVAL , Transfer Driven Gear.>
  12. Remove the parking pawl. <Ref. to REMOVAL , Parking Pawl.>
  13. Remove the reduction driven gear assembly. <Ref. to REMOVAL , Reduction Driven Gear.>
  14. Remove the oil pan and oil strainer. <Ref. to REMOVAL , Oil Pan and Strainer.>
  15. Remove the transmission control device. <Ref. to REMOVAL , Transmission Control Device.>
  16. Remove the transmission case. <Ref. to REMOVAL , Transmission Case.>
  17. Remove the reduction drive gear. <Ref. to REMOVAL , Reduction Drive Gear.>
  18. Remove the primary pulley, secondary pulley and variator chain. <Ref. to REMOVAL , Primary Pulley and Secondary Pulley.>
  19. Remove the manual valve assembly and separator plate.
    Fig 1: Locating Manual Valve Assembly And Separator Plate Bolts
    G08318020Courtesy of SUBARU OF AMERICA, INC.
  20. Remove the oil guide and lubrication pipe.

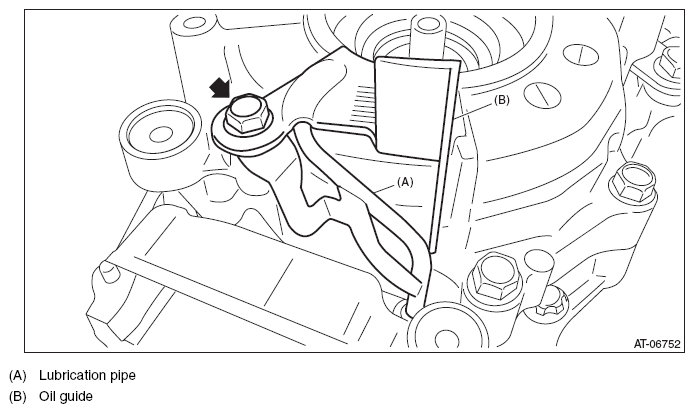

    Fig 2: Locating Oil Guide And Lubrication Pipe Bolt
    G11572971Courtesy of SUBARU OF AMERICA, INC.
  21. Remove the O-ring from lubrication pipe.
    Fig 3: Locating O-Ring At Lubrication Pipe
    G08318022Courtesy of SUBARU OF AMERICA, INC.
  22. Remove the reverse brake assembly.
    Fig 4: Reverse Brake Assembly And Bolts
    G08318023Courtesy of SUBARU OF AMERICA, INC.
  23. Remove the O-rings.
Fig 5: Locating O-Rings
G08318024Courtesy of SUBARU OF AMERICA, INC.
