Parking Pawl: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the transmission assembly. <Ref. to
REMOVAL , Automatic Transmission Assembly.>
- Shift the range select lever to "N" range.
- Remove the extension case. <Ref. to
REMOVAL , Extension Case.>

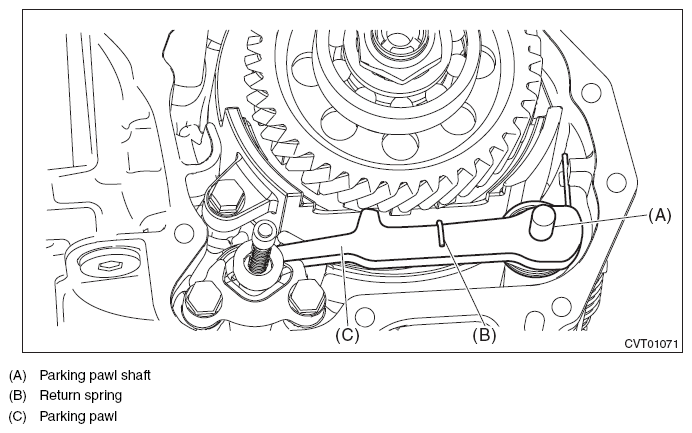

- Remove the parking pawl shaft, return spring and parking pawl.
Courtesy of SUBARU OF AMERICA, INC.
