Transmission Harness: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly. <Ref. to REMOVAL , Automatic Transmission Assembly.>
  2. Remove the transmission case cover.
    Fig 1: Transmission Case Cover
    G10275045Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air breather hose. <Ref. to REMOVAL , Air Breather Hose.>
  4. Remove the transmission hanger and transmission radio ground cord.
  5. Disconnect the harness connector from the turbine speed sensor, primary speed sensor, secondary speed sensor and secondary pressure sensor.
    Fig 2: Locating Turbine Speed Sensor, Primary Speed Sensor, Secondary Speed Sensor And Secondary Pressure Sensor
    G10275046Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the harness connector from the inhibitor switch.

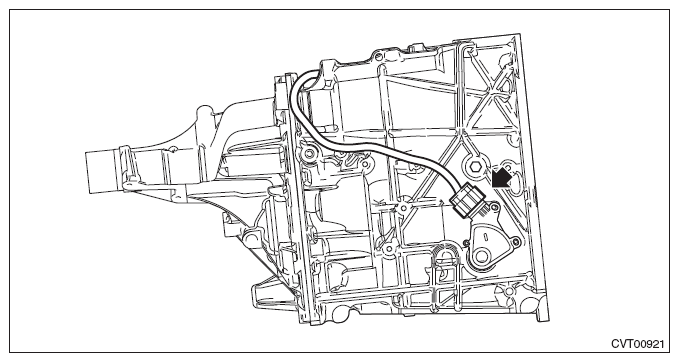

    Fig 3: Locating Inhibitor Switch Harness Connector
    G10218637Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the transmission harness stay and ground terminal, and remove the harness clip.
    Fig 4: Locating Transmission Harness Stay And Ground Terminal Harness Clip And Bolts
    G10275048Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the transmission harness connector from the transmission harness stay.
  9. Clean the transmission exterior.
  10. Remove the valve cover and gasket.
    Fig 5: Valve Cover With Nuts
    G10275026Courtesy of SUBARU OF AMERICA, INC.
  11. Disconnect the harness connector from the control valve body.
  12. Remove the transmission harness.
    Fig 6: Locating Control Valve Body Nut
    G10275027Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the O-rings.
Fig 7: Locating O-Rings
G08317849Courtesy of SUBARU OF AMERICA, INC.
