Transmission Case: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>REMOVAL .
  2. Remove the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Air Breather Hose>REMOVAL .
  3. Remove the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Control Valve Body>REMOVAL .
  4. Remove the transmission harness. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Harness>REMOVAL .
  5. Remove the turbine speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Turbine Speed Sensor>REMOVAL .
  6. Remove the secondary speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Secondary Speed Sensor>REMOVAL .
  7. Remove the primary speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Primary Speed Sensor>REMOVAL .
  8. Remove the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Inhibitor Switch>REMOVAL .
  9. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Extension Case>REMOVAL .
  10. Remove the transfer clutch assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transfer Clutch>REMOVAL .
  11. Remove the transfer driven gear assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transfer Driven Gear>REMOVAL .
  12. Remove the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Parking Pawl>REMOVAL .
  13. Remove the reduction driven gear assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Reduction Driven Gear>REMOVAL .
  14. Remove the oil pan and oil strainer. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Oil Pan and Strainer>REMOVAL .
  15. Remove the transmission control device. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Control Device>REMOVAL .
  16. Remove the oil baffle securing bolt.
    Fig 1: Locating Oil Baffle Securing Bolts
    G10218760Courtesy of SUBARU OF AMERICA, INC.
  17. Remove the oil cooler pipe.
    Fig 2: Locating Oil Cooler Pipe Nuts
    G08317956Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the transmission case.
    NOTE: The total number of transmission case mounting bolts is 15.
  19. Remove the oil baffle.
    Fig 3: Removing Oil Baffle
    G11265660Courtesy of SUBARU OF AMERICA, INC.
  20. Remove the O-rings.
    Fig 4: Locating O-Rings
    G08317958Courtesy of SUBARU OF AMERICA, INC.
  21. Remove the seal ring from the transmission case.

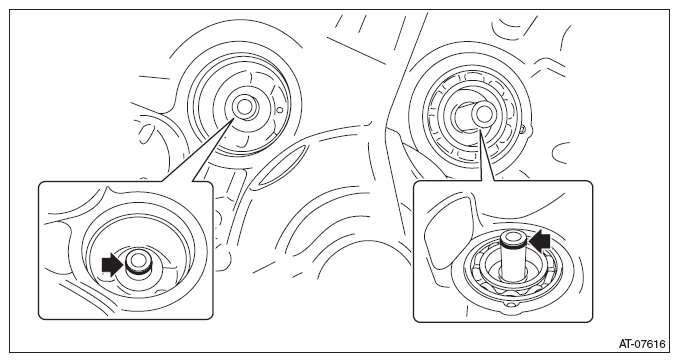

    Fig 5: Locating Seal Ring From Transmission Case
    G08551000Courtesy of SUBARU OF AMERICA, INC.
